SEFOR MC-3 Model for Core I-E
The multigroup cross-section generation using MC-3 and ENDF/B-VII.1 library followed a two-step procedure and produced output in ISOTXS format. In the first step, a series of transport calculations were carried out using simple 0-D Listing 1 or 1-D cylindrical models Listing 2 to obtain energy self-shielded cross sections over a fine energy grid (> 1,000 energy groups). The 1-D cylindrical model is also shown in Figure 1.
Listing 1: MC-3 input for 0-D model of SEFOR Core I-E bottom grid plate
! Na_GP_b (A)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_A 1.68850E-02 450.00
CR50_7 CR50_A 1.99835E-04 450.00
CR52_7 CR52_A 3.85357E-03 450.00
CR53_7 CR53_A 4.36962E-04 450.00
CR54_7 CR54_A 1.08771E-04 450.00
FE54_7 FE54_A 8.50997E-04 450.00
FE56_7 FE56_A 1.33588E-02 450.00
FE57_7 FE57_A 3.08517E-04 450.00
FE58_7 FE58_A 4.10573E-05 450.00
NI58_7 NI58_A 1.66423E-03 450.00
NI60_7 NI60_A 6.41055E-04 450.00
NI61_7 NI61_A 2.78666E-05 450.00
NI62_7 NI62_A 8.88497E-05 450.00
NI64_7 NI64_A 2.26275E-05 450.00
B10__7 B10__A 6.60243E-04 450.00
B11__7 B11__A 2.65754E-03 450.00
C____7 C12__A 8.29451E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
Listing 2: MC-3 input for 1-D model of SEFOR Core I-E standard fuel assembly
! FA_6_Fuel_St (K)
! ============================================================
!
t_composition(:, 1)= BE9__7 BE9__K 5.39439E-02 450.00
O16__7 O16__K 5.39439E-02 450.00
CR50_7 CR50_K 1.20548E-04 450.00
CR52_7 CR52_K 2.32460E-03 450.00
CR53_7 CR53_K 2.63605E-04 450.00
CR54_7 CR54_K 6.56154E-05 450.00
FE54_7 FE54_K 5.95077E-04 450.00
FE56_7 FE56_K 9.34136E-03 450.00
FE57_7 FE57_K 2.15727E-04 450.00
FE58_7 FE58_K 2.87093E-05 450.00
MO1007 MO100K 2.12956E-05 450.00
MO92_7 MO92_K 3.28181E-05 450.00
MO94_7 MO94_K 2.04554E-05 450.00
MO95_7 MO95_K 3.52068E-05 450.00
MO96_7 MO96_K 3.68870E-05 450.00
MO97_7 MO97_K 2.11189E-05 450.00
MO98_7 MO98_K 5.33619E-05 450.00
NI58_7 NI58_K 1.32873E-03 450.00
NI60_7 NI60_K 5.11828E-04 450.00
NI61_7 NI61_K 2.22483E-05 450.00
NI62_7 NI62_K 7.09384E-05 450.00
NI64_7 NI64_K 1.80668E-05 450.00
t_composition(:, 2)= NA23_7 NA23_K 2.39160E-02 450.00
t_composition(:, 3)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 4)= PU2397 PU239K 3.32051E-03 450.00
PU2407 PU240K 2.98177E-04 450.00
U235_7 U235_K 3.12105E-05 450.00
U238_7 U238_K 1.41554E-02 450.00
O16__7 O16__K 3.55742E-02 450.00
CR50_7 CR50_K 1.09257E-04 450.00
CR52_7 CR52_K 2.10686E-03 450.00
CR53_7 CR53_K 2.38914E-04 450.00
CR54_7 CR54_K 5.94694E-05 450.00
FE54_7 FE54_K 5.39338E-04 450.00
FE56_7 FE56_K 8.46638E-03 450.00
FE57_7 FE57_K 1.95521E-04 450.00
FE58_7 FE58_K 2.60202E-05 450.00
MO1007 MO100K 1.93009E-05 450.00
MO92_7 MO92_K 2.97441E-05 450.00
MO94_7 MO94_K 1.85394E-05 450.00
MO95_7 MO95_K 3.19091E-05 450.00
MO96_7 MO96_K 3.34319E-05 450.00
MO97_7 MO97_K 1.91407E-05 450.00
MO98_7 MO98_K 4.83636E-05 450.00
NI58_7 NI58_K 1.20427E-03 450.00
NI60_7 NI60_K 4.63886E-04 450.00
NI61_7 NI61_K 2.01643E-05 450.00
NI62_7 NI62_K 6.42938E-05 450.00
NI64_7 NI64_K 1.63745E-05 450.00
t_composition(:, 5)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 6)= NA23_7 NA23_K 2.39160E-02 450.00
t_composition(:, 7)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 8)= NA23_7 NA23_K 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 3 1
3 1 1
r_location = 1.11426 1.28366 1.37726 3.32428 3.41451
4.05154 4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3

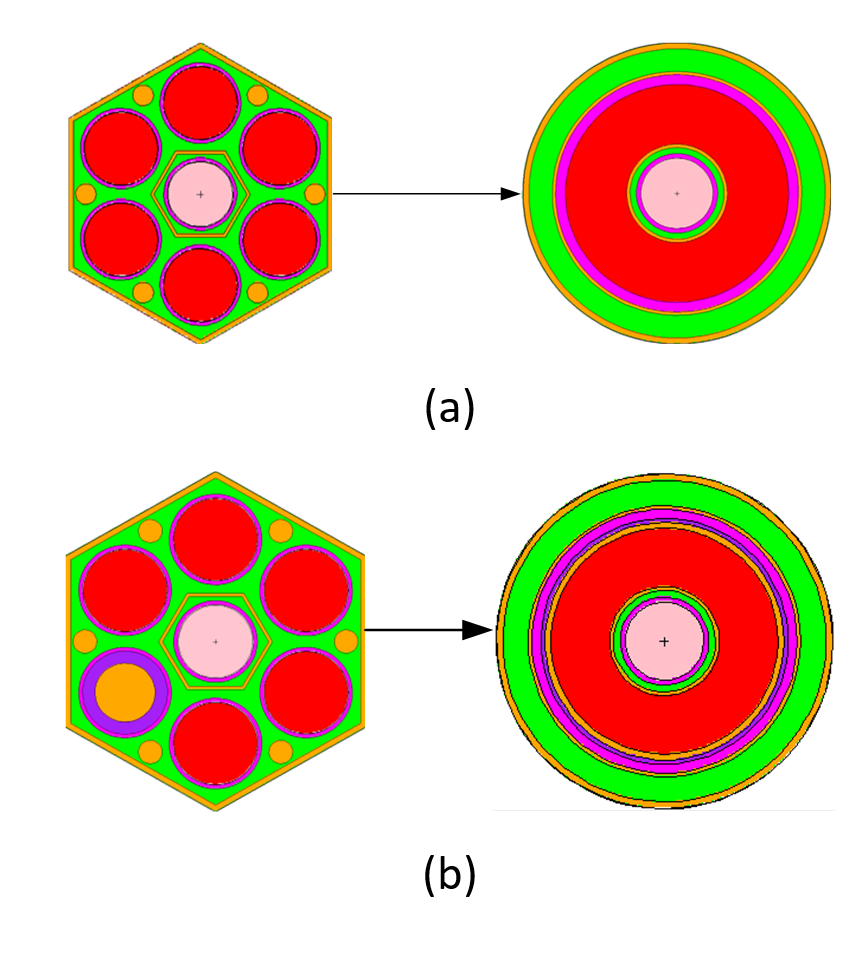

Figure 1: Mesh model of SEFOR Core I-E fuel assemblies: (a) Standard Assembly (SA), (b) SA with a BC rod (AFA)
These detailed cross sections were then applied to an approximate RZ model of the full SEFOR reactor core Listing 3. The TWODANT code was used to perform the neutron transport calculation within this RZ geometry (Alcouffe et al., 1984).
Listing 3: TWODANT input for modeling SEFOR Core I-E
ngroup= 1041
niso= 18
mt= 18, nzone= 18,
im= 15, it= 29,
jm= 11, jt= 43,
igeom=7, isn=10, maxlcm=195000000, maxscm=19200000,
t
xmesh= 0.0000 4.2254 40.7480 40.9665 42.0419 42.8828
43.0905 43.2972 43.5029 43.7076 43.9113 44.1142
53.4860 58.2630 73.5530 87.0340 ,
ymesh= 0.0000 30.7450 41.5320 42.4845 94.9136 95.8661
99.1481 100.1006 133.6233 134.5758 145.3628 165.6018 ,
xints= 1 9 1 1 1 1 1 1 1 1 1 2 1 4 3 ,
yints= 7 3 1 13 1 1 1 7 1 3 5 ,
zones= 1 1 1 1 1 1 1 1 1 1 1 3 4 5 7 ;
2 9 13 13 13 13 9 9 13 13 13 3 4 6 7 ;
2 10 14 14 14 14 10 10 14 14 14 3 4 6 7 ;
2 11 15 15 15 15 17 17 18 18 18 3 4 6 7 ;
2 10 14 14 14 14 10 10 14 14 14 3 4 6 7 ;
2 12 16 16 16 16 12 12 16 16 16 3 4 6 7 ;
2 10 14 14 14 14 10 10 14 14 14 3 4 6 7 ;
2 11 15 15 15 15 17 17 18 18 18 3 4 6 7 ;
2 10 14 14 14 14 10 10 14 14 14 3 4 6 7 ;
2 9 13 13 13 13 9 9 13 13 13 3 4 6 7 ;
2 8 8 8 8 8 8 8 8 8 8 3 4 5 7 ;
t
lib=isotxs,balxs=0,
t
matls=
REG_01 REG_01 0.10000E+01;
REG_02 REG_02 0.10000E+01;
REG_03 REG_03 0.10000E+01;
REG_04 REG_04 0.10000E+01;
REG_05 REG_05 0.10000E+01;
REG_06 REG_06 0.10000E+01;
REG_07 REG_07 0.10000E+01;
REG_08 REG_08 0.10000E+01;
REG_09 REG_09 0.10000E+01;
REG_10 REG_10 0.10000E+01;
REG_11 REG_11 0.10000E+01;
REG_12 REG_12 0.10000E+01;
REG_13 REG_13 0.10000E+01;
REG_14 REG_14 0.10000E+01;
REG_15 REG_15 0.10000E+01;
REG_16 REG_16 0.10000E+01;
REG_17 REG_17 0.10000E+01;
REG_18 REG_18 0.10000E+01;
assign=
REG_01 REG_01 1.0;
REG_02 REG_02 1.0;
REG_03 REG_03 1.0;
REG_04 REG_04 1.0;
REG_05 REG_05 1.0;
REG_06 REG_06 1.0;
REG_07 REG_07 1.0;
REG_08 REG_08 1.0;
REG_09 REG_09 1.0;
REG_10 REG_10 1.0;
REG_11 REG_11 1.0;
REG_12 REG_12 1.0;
REG_13 REG_13 1.0;
REG_14 REG_14 1.0;
REG_15 REG_15 1.0;
REG_16 REG_16 1.0;
REG_17 REG_17 1.0;
REG_18 REG_18 1.0;
t
ievt=1,isct=3,ith=0,ibl=1,ibr=0,ibt=0,ibb=0,
epsi=0.0001,iitl=100,iitm=100,oitm=50,epso=0.000001,
fluxp=0,xsectp=0,fissrp=0,sourcp=0,angp=0,geomp=0,
insors=0,raflux=0,rmflux=1,iquad=-2,influx=0,
Fluxes from the transport calculations included both neutron leakage and spatial self-shielding effects. In the second step, the flux distributions from TWODANT were used within MC-3 to condense the fine-energy grid cross sections to the ANL 33-group structure as shown in Listing 4.
Listing 4: MC-3 input for step 2 calculation
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Na_GP_b (A)
! ============================================================
!
i_externalspectrum(1)= 1
t_composition(:, 1)= NA23_7 NA23_A 1.68850E-02 450.00
CR50_7 CR50_A 1.99835E-04 450.00
CR52_7 CR52_A 3.85357E-03 450.00
CR53_7 CR53_A 4.36962E-04 450.00
CR54_7 CR54_A 1.08771E-04 450.00
FE54_7 FE54_A 8.50997E-04 450.00
FE56_7 FE56_A 1.33588E-02 450.00
FE57_7 FE57_A 3.08517E-04 450.00
FE58_7 FE58_A 4.10573E-05 450.00
NI58_7 NI58_A 1.66423E-03 450.00
NI60_7 NI60_A 6.41055E-04 450.00
NI61_7 NI61_A 2.78666E-05 450.00
NI62_7 NI62_A 8.88497E-05 450.00
NI64_7 NI64_A 2.26275E-05 450.00
B10__7 B10__A 6.60243E-04 450.00
B11__7 B11__A 2.65754E-03 450.00
C____7 C12__A 8.29451E-04 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
The ISOTXS cross section file was converted into the ISOXML format using the ISOXML utility in Griffin. Microscopic cross sections were generated for reactor core temperatures ranging from 350 °F to 750 °F, with increments of 50 °F for Core I-E. The model included 18 homogenized zones including the bottom grid plate, core top (Na_steel), downcomers (inside or outside the vessel DC_IV/DC_OV), radial reflectors and radial shields, as well as various homogenized fuel assembly regions.
References
- R E Alcouffe, F W Brinkley, D R Marr, and R D O'Dell.
User's guide for twodant: a code package for two-dimensional, diffusion-accelerated, neutral-particle transport. revision 1.
Technical Report, Los Alamos National Lab., NM (USA), 10 1984.
URL: https://www.osti.gov/biblio/5985401, doi:10.2172/5985401.[BibTeX]
@techreport{Alcouffe1984sefor, author = "Alcouffe, R E and Brinkley, F W and Marr, D R and O'Dell, R D", title = "User's guide for TWODANT: a code package for two-dimensional, diffusion-accelerated, neutral-particle transport. Revision 1", institution = "Los Alamos National Lab., NM (USA)", annote = "TWODANT solves the two-dimensional multigroup transport equation in x-y, r-z, and r-theta geometries. Both regular and adjoint, inhomogeneous (fixed source and homogeneous (k-effective and eigenvalue search)) problems subject to vacuum, reflective, periodic, white, or inhomogeneous boundary flux conditions are solved. General anisotropic scattering is allowed and anisotropic inhomogeneous sources are permitted. TWODANT numerically solves the two-dimensional multigroup form of the neutral-particle, steady-state Boltzmann transport equation. The discrete-ordinates form of approximation is used for treating the angular variation of the particle distribution and the diamond-difference scheme is used for space-angle discretization. Negative fluxes are eliminated by a local set-to-zero-and-correct algorithm. A standard inner (within-group) iteration, outer (energy-group-dependent source) iteration technique is used. Both inner and outer iterations are accelerated using the diffusion synthetic acceleration method. The diffusion solver uses the multigrid method and Chebychev acceleration of the fission source.", doi = "10.2172/5985401", url = "https://www.osti.gov/biblio/5985401", place = "United States", year = "1984", month = "10" }
(sfr/sefor/Cross_Section/Core-I-E_450K_ENDF71_step1.inp)
################################################################################
## NEAMS Fast Reactor Application Driver ##
## SEFOR MCC3 Model of SEFOR Core I-E at 450 K ##
## Input File for generating cross sections ##
## Please contact the authors for issues: ##
## - Dr. Donny Hartanto (hartantod.at.ornl.gov) ##
################################################################################
#!/bin/bash
lib_mcclibdir=../lib.mcc.e71
lib_pwlibdir=../lib.pw.200.e71
exe_twodant=../twodant.x
exe_mcc3=../mcc3.x
exe_isotxs_modify=../ISOTXS_Modify.x
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Na_GP_b (A)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_A 1.68850E-02 450.00
CR50_7 CR50_A 1.99835E-04 450.00
CR52_7 CR52_A 3.85357E-03 450.00
CR53_7 CR53_A 4.36962E-04 450.00
CR54_7 CR54_A 1.08771E-04 450.00
FE54_7 FE54_A 8.50997E-04 450.00
FE56_7 FE56_A 1.33588E-02 450.00
FE57_7 FE57_A 3.08517E-04 450.00
FE58_7 FE58_A 4.10573E-05 450.00
NI58_7 NI58_A 1.66423E-03 450.00
NI60_7 NI60_A 6.41055E-04 450.00
NI61_7 NI61_A 2.78666E-05 450.00
NI62_7 NI62_A 8.88497E-05 450.00
NI64_7 NI64_A 2.26275E-05 450.00
B10__7 B10__A 6.60243E-04 450.00
B11__7 B11__A 2.65754E-03 450.00
C____7 C12__A 8.29451E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG01.merged i=REG_01 n=REG_01
mv ISOTXS.REG01.merged ISOTXS.REG01
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FRED (B)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_B 1.51201E-04 450.00
CR50_7 CR50_B 1.14143E-04 450.00
CR52_7 CR52_B 2.20114E-03 450.00
CR53_7 CR53_B 2.49595E-04 450.00
CR54_7 CR54_B 6.21283E-05 450.00
FE54_7 FE54_B 5.22298E-04 450.00
FE56_7 FE56_B 8.19891E-03 450.00
FE57_7 FE57_B 1.89344E-04 450.00
FE58_7 FE58_B 2.51981E-05 450.00
MO1007 MO100B 9.43776E-06 450.00
MO92_7 MO92_B 1.45443E-05 450.00
MO94_7 MO94_B 9.06544E-06 450.00
MO95_7 MO95_B 1.56029E-05 450.00
MO96_7 MO96_B 1.63476E-05 450.00
MO97_7 MO97_B 9.35944E-06 450.00
MO98_7 MO98_B 2.36489E-05 450.00
NI58_7 NI58_B 1.09453E-03 450.00
NI60_7 NI60_B 4.21614E-04 450.00
NI61_7 NI61_B 1.83266E-05 450.00
NI62_7 NI62_B 5.84351E-05 450.00
NI64_7 NI64_B 1.48820E-05 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG02.merged i=REG_01 n=REG_02
mv ISOTXS.REG02.merged ISOTXS.REG02
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! DC_IV (C)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_C 1.48350E-02 450.00
CR50_7 CR50_C 2.34745E-04 450.00
CR52_7 CR52_C 4.52673E-03 450.00
CR53_7 CR53_C 5.13299E-04 450.00
CR54_7 CR54_C 1.27773E-04 450.00
FE54_7 FE54_C 9.99616E-04 450.00
FE56_7 FE56_C 1.56923E-02 450.00
FE57_7 FE57_C 3.62408E-04 450.00
FE58_7 FE58_C 4.82292E-05 450.00
NI58_7 NI58_C 1.95489E-03 450.00
NI60_7 NI60_C 7.53037E-04 450.00
NI61_7 NI61_C 3.27337E-05 450.00
NI62_7 NI62_C 1.04375E-04 450.00
NI64_7 NI64_C 2.65802E-05 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG03.merged i=REG_01 n=REG_03
mv ISOTXS.REG03.merged ISOTXS.REG03
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! DC_OV (D)
! ============================================================
!
t_composition(:, 1)= MG24_7 MG24_D 4.12309E-04 450.00
MG25_7 MG25_D 5.21977E-05 450.00
MG26_7 MG26_D 5.74694E-05 450.00
AL27_7 AL27_D 1.12844E-02 450.00
CR50_7 CR50_D 1.28512E-04 450.00
CR52_7 CR52_D 2.47827E-03 450.00
CR53_7 CR53_D 2.81011E-04 450.00
CR54_7 CR54_D 6.99491E-05 450.00
FE54_7 FE54_D 5.47272E-04 450.00
FE56_7 FE56_D 8.59100E-03 450.00
FE57_7 FE57_D 1.98405E-04 450.00
FE58_7 FE58_D 2.64034E-05 450.00
NI58_7 NI58_D 1.07022E-03 450.00
NI60_7 NI60_D 4.12259E-04 450.00
NI61_7 NI61_D 1.79202E-05 450.00
NI62_7 NI62_D 5.71389E-05 450.00
NI64_7 NI64_D 1.45518E-05 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG04.merged i=REG_01 n=REG_04
mv ISOTXS.REG04.merged ISOTXS.REG04
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Reflector_Steel_Void (E)
! ============================================================
!
t_composition(:, 1)= CR50_7 CR50_E 1.23500E-04 450.00
CR52_7 CR52_E 2.38160E-03 450.00
CR53_7 CR53_E 2.70060E-04 450.00
CR54_7 CR54_E 6.72230E-05 450.00
FE54_7 FE54_E 5.25940E-04 450.00
FE56_7 FE56_E 8.25610E-03 450.00
FE57_7 FE57_E 1.90670E-04 450.00
FE58_7 FE58_E 2.53750E-05 450.00
NI58_7 NI58_E 1.02850E-03 450.00
NI60_7 NI60_E 3.96190E-04 450.00
NI61_7 NI61_E 1.72220E-05 450.00
NI62_7 NI62_E 5.49120E-05 450.00
NI64_7 NI64_E 1.39840E-05 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG05.merged i=REG_01 n=REG_05
mv ISOTXS.REG05.merged ISOTXS.REG05
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Reflector_Refl (F)
! ============================================================
!
t_composition(:, 1)= MG24_7 MG24_F 7.44450E-05 450.00
MG25_7 MG25_F 9.42463E-06 450.00
MG26_7 MG26_F 1.03762E-05 450.00
AL27_7 AL27_F 2.03752E-03 450.00
CR50_7 CR50_F 2.77734E-05 450.00
CR52_7 CR52_F 5.35588E-04 450.00
CR53_7 CR53_F 6.07314E-05 450.00
CR54_7 CR54_F 1.51177E-05 450.00
FE54_7 FE54_F 1.18273E-04 450.00
FE56_7 FE56_F 1.85668E-03 450.00
FE57_7 FE57_F 4.28782E-05 450.00
FE58_7 FE58_F 5.70638E-06 450.00
NI58_7 NI58_F 4.99710E-02 450.00
NI60_7 NI60_F 1.92485E-02 450.00
NI61_7 NI61_F 8.36735E-04 450.00
NI62_7 NI62_F 2.66786E-03 450.00
NI64_7 NI64_F 6.79430E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG06.merged i=REG_01 n=REG_06
mv ISOTXS.REG06.merged ISOTXS.REG06
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Rad_Shld (G)
! ============================================================
!
t_composition(:, 1)= MG24_7 MG24_G 2.71254E-04 450.00
MG25_7 MG25_G 3.43404E-05 450.00
MG26_7 MG26_G 3.78086E-05 450.00
CR50_7 CR50_G 9.86654E-05 450.00
CR52_7 CR52_G 1.90267E-03 450.00
CR53_7 CR53_G 2.15751E-04 450.00
CR54_7 CR54_G 5.37036E-05 450.00
FE54_7 FE54_G 4.20168E-04 450.00
FE56_7 FE56_G 6.59577E-03 450.00
FE57_7 FE57_G 1.52329E-04 450.00
FE58_7 FE58_G 2.02719E-05 450.00
NI58_7 NI58_G 8.21692E-04 450.00
NI60_7 NI60_G 3.16512E-04 450.00
NI61_7 NI61_G 1.37589E-05 450.00
NI62_7 NI62_G 4.38683E-05 450.00
NI64_7 NI64_G 1.11725E-05 450.00
B10__7 B10__G 5.40601E-03 450.00
B11__7 B11__G 2.17599E-02 450.00
C____7 C12__G 6.79150E-03 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG07.merged i=REG_01 n=REG_07
mv ISOTXS.REG07.merged ISOTXS.REG07
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Na_steel_t (H)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_H 1.35120E-02 450.00
CR50_7 CR50_H 2.66172E-04 450.00
CR52_7 CR52_H 5.13286E-03 450.00
CR53_7 CR53_H 5.82020E-04 450.00
CR54_7 CR54_H 1.44878E-04 450.00
FE54_7 FE54_H 1.13346E-03 450.00
FE56_7 FE56_H 1.77932E-02 450.00
FE57_7 FE57_H 4.10931E-04 450.00
FE58_7 FE58_H 5.46867E-05 450.00
NI58_7 NI58_H 2.21669E-03 450.00
NI60_7 NI60_H 8.53861E-04 450.00
NI61_7 NI61_H 3.71173E-05 450.00
NI62_7 NI62_H 1.18350E-04 450.00
NI64_7 NI64_H 3.01385E-05 450.00
B10__7 B10__H 6.60243E-04 450.00
B11__7 B11__H 2.65754E-03 450.00
C____7 C12__H 8.29451E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG08.merged i=REG_01 n=REG_08
mv ISOTXS.REG08.merged ISOTXS.REG08
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Ni_Axial (I)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_I 7.06638E-03 450.00
CR50_7 CR50_I 1.64340E-04 450.00
CR52_7 CR52_I 3.16916E-03 450.00
CR53_7 CR53_I 3.59360E-04 450.00
CR54_7 CR54_I 8.94507E-05 450.00
FE54_7 FE54_I 7.43507E-04 450.00
FE56_7 FE56_I 1.16714E-02 450.00
FE57_7 FE57_I 2.69536E-04 450.00
FE58_7 FE58_I 3.58702E-05 450.00
MO1007 MO100I 1.13768E-05 450.00
MO92_7 MO92_I 1.75326E-05 450.00
MO94_7 MO94_I 1.09280E-05 450.00
MO95_7 MO95_I 1.88087E-05 450.00
MO96_7 MO96_I 1.97063E-05 450.00
MO97_7 MO97_I 1.12825E-05 450.00
MO98_7 MO98_I 2.85077E-05 450.00
NI58_7 NI58_I 2.95620E-02 450.00
NI60_7 NI60_I 1.13874E-02 450.00
NI61_7 NI61_I 4.94973E-04 450.00
NI62_7 NI62_I 1.57827E-03 450.00
NI64_7 NI64_I 4.01938E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG09.merged i=REG_01 n=REG_09
mv ISOTXS.REG09.merged ISOTXS.REG09
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 8
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Fuel_insul (J)
! ============================================================
!
t_composition(:, 1)= BE9__7 BE9__J 5.39439E-02 450.00
O16__7 O16__J 5.39439E-02 450.00
CR50_7 CR50_J 1.20548E-04 450.00
CR52_7 CR52_J 2.32460E-03 450.00
CR53_7 CR53_J 2.63605E-04 450.00
CR54_7 CR54_J 6.56154E-05 450.00
FE54_7 FE54_J 5.95077E-04 450.00
FE56_7 FE56_J 9.34136E-03 450.00
FE57_7 FE57_J 2.15727E-04 450.00
FE58_7 FE58_J 2.87093E-05 450.00
MO1007 MO100J 2.12956E-05 450.00
MO92_7 MO92_J 3.28181E-05 450.00
MO94_7 MO94_J 2.04554E-05 450.00
MO95_7 MO95_J 3.52068E-05 450.00
MO96_7 MO96_J 3.68870E-05 450.00
MO97_7 MO97_J 2.11189E-05 450.00
MO98_7 MO98_J 5.33619E-05 450.00
NI58_7 NI58_J 1.32873E-03 450.00
NI60_7 NI60_J 5.11828E-04 450.00
NI61_7 NI61_J 2.22483E-05 450.00
NI62_7 NI62_J 7.09384E-05 450.00
NI64_7 NI64_J 1.80668E-05 450.00
t_composition(:, 2)= NA23_7 NA23_J 2.39160E-02 450.00
t_composition(:, 3)= CR50_7 CR50_J 8.17351E-04 450.00
CR52_7 CR52_J 1.57623E-02 450.00
CR53_7 CR53_J 1.78728E-03 450.00
CR54_7 CR54_J 4.44885E-04 450.00
FE54_7 FE54_J 3.48075E-03 450.00
FE56_7 FE56_J 5.46400E-02 450.00
FE57_7 FE57_J 1.26184E-03 450.00
FE58_7 FE58_J 1.67927E-04 450.00
NI58_7 NI58_J 6.80694E-03 450.00
NI60_7 NI60_J 2.62205E-03 450.00
NI61_7 NI61_J 1.13973E-04 450.00
NI62_7 NI62_J 3.63413E-04 450.00
NI64_7 NI64_J 9.25497E-05 450.00
t_composition(:, 4)= U235_7 U235_J 4.00448E-05 450.00
U238_7 U238_J 1.81622E-02 450.00
O16__7 O16__J 3.64046E-02 450.00
CR50_7 CR50_J 1.09257E-04 450.00
CR52_7 CR52_J 2.10686E-03 450.00
CR53_7 CR53_J 2.38914E-04 450.00
CR54_7 CR54_J 5.94694E-05 450.00
FE54_7 FE54_J 5.39338E-04 450.00
FE56_7 FE56_J 8.46638E-03 450.00
FE57_7 FE57_J 1.95521E-04 450.00
FE58_7 FE58_J 2.60202E-05 450.00
MO1007 MO100J 1.93009E-05 450.00
MO92_7 MO92_J 2.97441E-05 450.00
MO94_7 MO94_J 1.85394E-05 450.00
MO95_7 MO95_J 3.19091E-05 450.00
MO96_7 MO96_J 3.34319E-05 450.00
MO97_7 MO97_J 1.91407E-05 450.00
MO98_7 MO98_J 4.83636E-05 450.00
NI58_7 NI58_J 1.20427E-03 450.00
NI60_7 NI60_J 4.63886E-04 450.00
NI61_7 NI61_J 2.01643E-05 450.00
NI62_7 NI62_J 6.42938E-05 450.00
NI64_7 NI64_J 1.63745E-05 450.00
t_composition(:, 5)= CR50_7 CR50_J 8.17351E-04 450.00
CR52_7 CR52_J 1.57623E-02 450.00
CR53_7 CR53_J 1.78728E-03 450.00
CR54_7 CR54_J 4.44885E-04 450.00
FE54_7 FE54_J 3.48075E-03 450.00
FE56_7 FE56_J 5.46400E-02 450.00
FE57_7 FE57_J 1.26184E-03 450.00
FE58_7 FE58_J 1.67927E-04 450.00
NI58_7 NI58_J 6.80694E-03 450.00
NI60_7 NI60_J 2.62205E-03 450.00
NI61_7 NI61_J 1.13973E-04 450.00
NI62_7 NI62_J 3.63413E-04 450.00
NI64_7 NI64_J 9.25497E-05 450.00
t_composition(:, 6)= NA23_7 NA23_J 2.39160E-02 450.00
t_composition(:, 7)= CR50_7 CR50_J 8.17351E-04 450.00
CR52_7 CR52_J 1.57623E-02 450.00
CR53_7 CR53_J 1.78728E-03 450.00
CR54_7 CR54_J 4.44885E-04 450.00
FE54_7 FE54_J 3.48075E-03 450.00
FE56_7 FE56_J 5.46400E-02 450.00
FE57_7 FE57_J 1.26184E-03 450.00
FE58_7 FE58_J 1.67927E-04 450.00
NI58_7 NI58_J 6.80694E-03 450.00
NI60_7 NI60_J 2.62205E-03 450.00
NI61_7 NI61_J 1.13973E-04 450.00
NI62_7 NI62_J 3.63413E-04 450.00
NI64_7 NI64_J 9.25497E-05 450.00
t_composition(:, 8)= NA23_7 NA23_J 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 3 1
3 1 1
r_location = 1.11426 1.28366 1.37726 3.32428 3.41451
4.05154 4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG10.merged i=REG_01 n=REG_10
mv ISOTXS.REG10.merged ISOTXS.REG10
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 8
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Fuel_St (K)
! ============================================================
!
t_composition(:, 1)= BE9__7 BE9__K 5.39439E-02 450.00
O16__7 O16__K 5.39439E-02 450.00
CR50_7 CR50_K 1.20548E-04 450.00
CR52_7 CR52_K 2.32460E-03 450.00
CR53_7 CR53_K 2.63605E-04 450.00
CR54_7 CR54_K 6.56154E-05 450.00
FE54_7 FE54_K 5.95077E-04 450.00
FE56_7 FE56_K 9.34136E-03 450.00
FE57_7 FE57_K 2.15727E-04 450.00
FE58_7 FE58_K 2.87093E-05 450.00
MO1007 MO100K 2.12956E-05 450.00
MO92_7 MO92_K 3.28181E-05 450.00
MO94_7 MO94_K 2.04554E-05 450.00
MO95_7 MO95_K 3.52068E-05 450.00
MO96_7 MO96_K 3.68870E-05 450.00
MO97_7 MO97_K 2.11189E-05 450.00
MO98_7 MO98_K 5.33619E-05 450.00
NI58_7 NI58_K 1.32873E-03 450.00
NI60_7 NI60_K 5.11828E-04 450.00
NI61_7 NI61_K 2.22483E-05 450.00
NI62_7 NI62_K 7.09384E-05 450.00
NI64_7 NI64_K 1.80668E-05 450.00
t_composition(:, 2)= NA23_7 NA23_K 2.39160E-02 450.00
t_composition(:, 3)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 4)= PU2397 PU239K 3.32051E-03 450.00
PU2407 PU240K 2.98177E-04 450.00
U235_7 U235_K 3.12105E-05 450.00
U238_7 U238_K 1.41554E-02 450.00
O16__7 O16__K 3.55742E-02 450.00
CR50_7 CR50_K 1.09257E-04 450.00
CR52_7 CR52_K 2.10686E-03 450.00
CR53_7 CR53_K 2.38914E-04 450.00
CR54_7 CR54_K 5.94694E-05 450.00
FE54_7 FE54_K 5.39338E-04 450.00
FE56_7 FE56_K 8.46638E-03 450.00
FE57_7 FE57_K 1.95521E-04 450.00
FE58_7 FE58_K 2.60202E-05 450.00
MO1007 MO100K 1.93009E-05 450.00
MO92_7 MO92_K 2.97441E-05 450.00
MO94_7 MO94_K 1.85394E-05 450.00
MO95_7 MO95_K 3.19091E-05 450.00
MO96_7 MO96_K 3.34319E-05 450.00
MO97_7 MO97_K 1.91407E-05 450.00
MO98_7 MO98_K 4.83636E-05 450.00
NI58_7 NI58_K 1.20427E-03 450.00
NI60_7 NI60_K 4.63886E-04 450.00
NI61_7 NI61_K 2.01643E-05 450.00
NI62_7 NI62_K 6.42938E-05 450.00
NI64_7 NI64_K 1.63745E-05 450.00
t_composition(:, 5)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 6)= NA23_7 NA23_K 2.39160E-02 450.00
t_composition(:, 7)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 8)= NA23_7 NA23_K 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 3 1
3 1 1
r_location = 1.11426 1.28366 1.37726 3.32428 3.41451
4.05154 4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG11.merged i=REG_01 n=REG_11
mv ISOTXS.REG11.merged ISOTXS.REG11
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Spring_Void (L)
! ============================================================
!
t_composition(:, 1)= O16__7 O16__L 3.75126E-03 450.00
NA23_7 NA23_L 7.06638E-03 450.00
CR50_7 CR50_L 1.64340E-04 450.00
CR52_7 CR52_L 3.16916E-03 450.00
CR53_7 CR53_L 3.59360E-04 450.00
CR54_7 CR54_L 8.94507E-05 450.00
FE54_7 FE54_L 7.43507E-04 450.00
FE56_7 FE56_L 1.16714E-02 450.00
FE57_7 FE57_L 2.69536E-04 450.00
FE58_7 FE58_L 3.58702E-05 450.00
MO1007 MO100L 1.13768E-05 450.00
MO92_7 MO92_L 1.75326E-05 450.00
MO94_7 MO94_L 1.09280E-05 450.00
MO95_7 MO95_L 1.88087E-05 450.00
MO96_7 MO96_L 1.97063E-05 450.00
MO97_7 MO97_L 1.12825E-05 450.00
MO98_7 MO98_L 2.85077E-05 450.00
NI58_7 NI58_L 1.54215E-03 450.00
NI60_7 NI60_L 5.94038E-04 450.00
NI61_7 NI61_L 2.58214E-05 450.00
NI62_7 NI62_L 8.23328E-05 450.00
NI64_7 NI64_L 2.09681E-05 450.00
BE9__7 BE9__L 3.75126E-03 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG12.merged i=REG_01 n=REG_12
mv ISOTXS.REG12.merged ISOTXS.REG12
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Ni_Axial (M)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_M 7.06638E-03 450.00
CR50_7 CR50_M 1.64340E-04 450.00
CR52_7 CR52_M 3.16916E-03 450.00
CR53_7 CR53_M 3.59360E-04 450.00
CR54_7 CR54_M 8.94507E-05 450.00
FE54_7 FE54_M 7.43507E-04 450.00
FE56_7 FE56_M 1.16714E-02 450.00
FE57_7 FE57_M 2.69536E-04 450.00
FE58_7 FE58_M 3.58702E-05 450.00
MO1007 MO100M 1.13768E-05 450.00
MO92_7 MO92_M 1.75326E-05 450.00
MO94_7 MO94_M 1.09280E-05 450.00
MO95_7 MO95_M 1.88087E-05 450.00
MO96_7 MO96_M 1.97063E-05 450.00
MO97_7 MO97_M 1.12825E-05 450.00
MO98_7 MO98_M 2.85077E-05 450.00
NI58_7 NI58_M 2.95620E-02 450.00
NI60_7 NI60_M 1.13874E-02 450.00
NI61_7 NI61_M 4.94973E-04 450.00
NI62_7 NI62_M 1.57827E-03 450.00
NI64_7 NI64_M 4.01938E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG13.merged i=REG_01 n=REG_13
mv ISOTXS.REG13.merged ISOTXS.REG13
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 11
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Fuel_insul (N)
! ============================================================
!
t_composition(:, 1)= CR50_7 CR50_N 8.17447E-04 450.00
CR52_7 CR52_N 1.57642E-02 450.00
CR53_7 CR53_N 1.78749E-03 450.00
CR54_7 CR54_N 4.44937E-04 450.00
FE54_7 FE54_N 3.48116E-03 450.00
FE56_7 FE56_N 5.46464E-02 450.00
FE57_7 FE57_N 1.26199E-03 450.00
FE58_7 FE58_N 1.67947E-04 450.00
NI58_7 NI58_N 6.80774E-03 450.00
NI60_7 NI60_N 2.62236E-03 450.00
NI61_7 NI61_N 1.13987E-04 450.00
NI62_7 NI62_N 3.63455E-04 450.00
NI64_7 NI64_N 9.25606E-05 450.00
t_composition(:, 2)= B10__7 B10__N 1.32047E-02 450.00
B11__7 B11__N 5.31509E-02 450.00
C____7 C12__N 1.65886E-02 450.00
t_composition(:, 3)= CR50_7 CR50_N 6.90859E-04 450.00
CR52_7 CR52_N 1.33222E-02 450.00
CR53_7 CR53_N 1.51071E-03 450.00
CR54_7 CR54_N 3.76040E-04 450.00
FE54_7 FE54_N 3.41037E-03 450.00
FE56_7 FE56_N 5.35351E-02 450.00
FE57_7 FE57_N 1.23633E-03 450.00
FE58_7 FE58_N 1.64532E-04 450.00
MO1007 MO100N 1.22044E-04 450.00
MO92_7 MO92_N 1.88080E-04 450.00
MO94_7 MO94_N 1.17230E-04 450.00
MO95_7 MO95_N 2.01769E-04 450.00
MO96_7 MO96_N 2.11398E-04 450.00
MO97_7 MO97_N 1.21032E-04 450.00
MO98_7 MO98_N 3.05815E-04 450.00
NI58_7 NI58_N 7.61491E-03 450.00
NI60_7 NI60_N 2.93327E-03 450.00
NI61_7 NI61_N 1.27504E-04 450.00
NI62_7 NI62_N 4.06546E-04 450.00
NI64_7 NI64_N 1.03540E-04 450.00
t_composition(:, 4)= BE9__7 BE9__N 5.39439E-02 450.00
O16__7 O16__N 5.39439E-02 450.00
CR50_7 CR50_N 1.20548E-04 450.00
CR52_7 CR52_N 2.32460E-03 450.00
CR53_7 CR53_N 2.63605E-04 450.00
CR54_7 CR54_N 6.56154E-05 450.00
FE54_7 FE54_N 5.95077E-04 450.00
FE56_7 FE56_N 9.34136E-03 450.00
FE57_7 FE57_N 2.15727E-04 450.00
FE58_7 FE58_N 2.87093E-05 450.00
MO1007 MO100N 2.12956E-05 450.00
MO92_7 MO92_N 3.28181E-05 450.00
MO94_7 MO94_N 2.04554E-05 450.00
MO95_7 MO95_N 3.52068E-05 450.00
MO96_7 MO96_N 3.68870E-05 450.00
MO97_7 MO97_N 2.11189E-05 450.00
MO98_7 MO98_N 5.33619E-05 450.00
NI58_7 NI58_N 1.32873E-03 450.00
NI60_7 NI60_N 5.11828E-04 450.00
NI61_7 NI61_N 2.22483E-05 450.00
NI62_7 NI62_N 7.09384E-05 450.00
NI64_7 NI64_N 1.80668E-05 450.00
t_composition(:, 5)= NA23_7 NA23_N 2.39160E-02 450.00
t_composition(:, 6)= CR50_7 CR50_N 8.17351E-04 450.00
CR52_7 CR52_N 1.57623E-02 450.00
CR53_7 CR53_N 1.78728E-03 450.00
CR54_7 CR54_N 4.44885E-04 450.00
FE54_7 FE54_N 3.48075E-03 450.00
FE56_7 FE56_N 5.46400E-02 450.00
FE57_7 FE57_N 1.26184E-03 450.00
FE58_7 FE58_N 1.67927E-04 450.00
NI58_7 NI58_N 6.80694E-03 450.00
NI60_7 NI60_N 2.62205E-03 450.00
NI61_7 NI61_N 1.13973E-04 450.00
NI62_7 NI62_N 3.63413E-04 450.00
NI64_7 NI64_N 9.25497E-05 450.00
t_composition(:, 7)= U235_7 U235_N 4.00448E-05 450.00
U238_7 U238_N 1.81622E-02 450.00
O16__7 O16__N 3.64046E-02 450.00
CR50_7 CR50_N 1.09257E-04 450.00
CR52_7 CR52_N 2.10686E-03 450.00
CR53_7 CR53_N 2.38914E-04 450.00
CR54_7 CR54_N 5.94694E-05 450.00
FE54_7 FE54_N 5.39338E-04 450.00
FE56_7 FE56_N 8.46638E-03 450.00
FE57_7 FE57_N 1.95521E-04 450.00
FE58_7 FE58_N 2.60202E-05 450.00
MO1007 MO100N 1.93009E-05 450.00
MO92_7 MO92_N 2.97441E-05 450.00
MO94_7 MO94_N 1.85394E-05 450.00
MO95_7 MO95_N 3.19091E-05 450.00
MO96_7 MO96_N 3.34319E-05 450.00
MO97_7 MO97_N 1.91407E-05 450.00
MO98_7 MO98_N 4.83636E-05 450.00
NI58_7 NI58_N 1.20427E-03 450.00
NI60_7 NI60_N 4.63886E-04 450.00
NI61_7 NI61_N 2.01643E-05 450.00
NI62_7 NI62_N 6.42938E-05 450.00
NI64_7 NI64_N 1.63745E-05 450.00
t_composition(:, 8)= CR50_7 CR50_N 8.17351E-04 450.00
CR52_7 CR52_N 1.57623E-02 450.00
CR53_7 CR53_N 1.78728E-03 450.00
CR54_7 CR54_N 4.44885E-04 450.00
FE54_7 FE54_N 3.48075E-03 450.00
FE56_7 FE56_N 5.46400E-02 450.00
FE57_7 FE57_N 1.26184E-03 450.00
FE58_7 FE58_N 1.67927E-04 450.00
NI58_7 NI58_N 6.80694E-03 450.00
NI60_7 NI60_N 2.62205E-03 450.00
NI61_7 NI61_N 1.13973E-04 450.00
NI62_7 NI62_N 3.63413E-04 450.00
NI64_7 NI64_N 9.25497E-05 450.00
t_composition(:, 9)= NA23_7 NA23_N 2.39160E-02 450.00
t_composition(:, 10)= CR50_7 CR50_N 8.17351E-04 450.00
CR52_7 CR52_N 1.57623E-02 450.00
CR53_7 CR53_N 1.78728E-03 450.00
CR54_7 CR54_N 4.44885E-04 450.00
FE54_7 FE54_N 3.48075E-03 450.00
FE56_7 FE56_N 5.46400E-02 450.00
FE57_7 FE57_N 1.26184E-03 450.00
FE58_7 FE58_N 1.67927E-04 450.00
NI58_7 NI58_N 6.80694E-03 450.00
NI60_7 NI60_N 2.62205E-03 450.00
NI61_7 NI61_N 1.13973E-04 450.00
NI62_7 NI62_N 3.63413E-04 450.00
NI64_7 NI64_N 9.25497E-05 450.00
t_composition(:, 11)= NA23_7 NA23_N 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 1 1
1 3 1 3 1
1
r_location = 0.80133 1.13331 1.23518 1.66350 1.78141
1.85000 3.32428 3.41451 4.05154 4.21200
4.22537
i_composition = 1 2 3 4 5
6 7 8 9 10
11
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG14.merged i=REG_01 n=REG_14
mv ISOTXS.REG14.merged ISOTXS.REG14
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 11
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Fuel_St (O)
! ============================================================
!
t_composition(:, 1)= CR50_7 CR50_O 8.17447E-04 450.00
CR52_7 CR52_O 1.57642E-02 450.00
CR53_7 CR53_O 1.78749E-03 450.00
CR54_7 CR54_O 4.44937E-04 450.00
FE54_7 FE54_O 3.48116E-03 450.00
FE56_7 FE56_O 5.46464E-02 450.00
FE57_7 FE57_O 1.26199E-03 450.00
FE58_7 FE58_O 1.67947E-04 450.00
NI58_7 NI58_O 6.80774E-03 450.00
NI60_7 NI60_O 2.62236E-03 450.00
NI61_7 NI61_O 1.13987E-04 450.00
NI62_7 NI62_O 3.63455E-04 450.00
NI64_7 NI64_O 9.25606E-05 450.00
t_composition(:, 2)= B10__7 B10__O 1.32047E-02 450.00
B11__7 B11__O 5.31509E-02 450.00
C____7 C12__O 1.65886E-02 450.00
t_composition(:, 3)= CR50_7 CR50_O 6.90859E-04 450.00
CR52_7 CR52_O 1.33222E-02 450.00
CR53_7 CR53_O 1.51071E-03 450.00
CR54_7 CR54_O 3.76040E-04 450.00
FE54_7 FE54_O 3.41037E-03 450.00
FE56_7 FE56_O 5.35351E-02 450.00
FE57_7 FE57_O 1.23633E-03 450.00
FE58_7 FE58_O 1.64532E-04 450.00
MO1007 MO100O 1.22044E-04 450.00
MO92_7 MO92_O 1.88080E-04 450.00
MO94_7 MO94_O 1.17230E-04 450.00
MO95_7 MO95_O 2.01769E-04 450.00
MO96_7 MO96_O 2.11398E-04 450.00
MO97_7 MO97_O 1.21032E-04 450.00
MO98_7 MO98_O 3.05815E-04 450.00
NI58_7 NI58_O 7.61491E-03 450.00
NI60_7 NI60_O 2.93327E-03 450.00
NI61_7 NI61_O 1.27504E-04 450.00
NI62_7 NI62_O 4.06546E-04 450.00
NI64_7 NI64_O 1.03540E-04 450.00
t_composition(:, 4)= BE9__7 BE9__O 5.39439E-02 450.00
O16__7 O16__O 5.39439E-02 450.00
CR50_7 CR50_O 1.20548E-04 450.00
CR52_7 CR52_O 2.32460E-03 450.00
CR53_7 CR53_O 2.63605E-04 450.00
CR54_7 CR54_O 6.56154E-05 450.00
FE54_7 FE54_O 5.95077E-04 450.00
FE56_7 FE56_O 9.34136E-03 450.00
FE57_7 FE57_O 2.15727E-04 450.00
FE58_7 FE58_O 2.87093E-05 450.00
MO1007 MO100O 2.12956E-05 450.00
MO92_7 MO92_O 3.28181E-05 450.00
MO94_7 MO94_O 2.04554E-05 450.00
MO95_7 MO95_O 3.52068E-05 450.00
MO96_7 MO96_O 3.68870E-05 450.00
MO97_7 MO97_O 2.11189E-05 450.00
MO98_7 MO98_O 5.33619E-05 450.00
NI58_7 NI58_O 1.32873E-03 450.00
NI60_7 NI60_O 5.11828E-04 450.00
NI61_7 NI61_O 2.22483E-05 450.00
NI62_7 NI62_O 7.09384E-05 450.00
NI64_7 NI64_O 1.80668E-05 450.00
t_composition(:, 5)= NA23_7 NA23_O 2.39160E-02 450.00
t_composition(:, 6)= CR50_7 CR50_O 8.17351E-04 450.00
CR52_7 CR52_O 1.57623E-02 450.00
CR53_7 CR53_O 1.78728E-03 450.00
CR54_7 CR54_O 4.44885E-04 450.00
FE54_7 FE54_O 3.48075E-03 450.00
FE56_7 FE56_O 5.46400E-02 450.00
FE57_7 FE57_O 1.26184E-03 450.00
FE58_7 FE58_O 1.67927E-04 450.00
NI58_7 NI58_O 6.80694E-03 450.00
NI60_7 NI60_O 2.62205E-03 450.00
NI61_7 NI61_O 1.13973E-04 450.00
NI62_7 NI62_O 3.63413E-04 450.00
NI64_7 NI64_O 9.25497E-05 450.00
t_composition(:, 7)= PU2397 PU239O 3.32051E-03 450.00
PU2407 PU240O 2.98177E-04 450.00
U235_7 U235_O 3.12105E-05 450.00
U238_7 U238_O 1.41554E-02 450.00
O16__7 O16__O 3.55742E-02 450.00
CR50_7 CR50_O 1.09257E-04 450.00
CR52_7 CR52_O 2.10686E-03 450.00
CR53_7 CR53_O 2.38914E-04 450.00
CR54_7 CR54_O 5.94694E-05 450.00
FE54_7 FE54_O 5.39338E-04 450.00
FE56_7 FE56_O 8.46638E-03 450.00
FE57_7 FE57_O 1.95521E-04 450.00
FE58_7 FE58_O 2.60202E-05 450.00
MO1007 MO100O 1.93009E-05 450.00
MO92_7 MO92_O 2.97441E-05 450.00
MO94_7 MO94_O 1.85394E-05 450.00
MO95_7 MO95_O 3.19091E-05 450.00
MO96_7 MO96_O 3.34319E-05 450.00
MO97_7 MO97_O 1.91407E-05 450.00
MO98_7 MO98_O 4.83636E-05 450.00
NI58_7 NI58_O 1.20427E-03 450.00
NI60_7 NI60_O 4.63886E-04 450.00
NI61_7 NI61_O 2.01643E-05 450.00
NI62_7 NI62_O 6.42938E-05 450.00
NI64_7 NI64_O 1.63745E-05 450.00
t_composition(:, 8)= CR50_7 CR50_O 8.17351E-04 450.00
CR52_7 CR52_O 1.57623E-02 450.00
CR53_7 CR53_O 1.78728E-03 450.00
CR54_7 CR54_O 4.44885E-04 450.00
FE54_7 FE54_O 3.48075E-03 450.00
FE56_7 FE56_O 5.46400E-02 450.00
FE57_7 FE57_O 1.26184E-03 450.00
FE58_7 FE58_O 1.67927E-04 450.00
NI58_7 NI58_O 6.80694E-03 450.00
NI60_7 NI60_O 2.62205E-03 450.00
NI61_7 NI61_O 1.13973E-04 450.00
NI62_7 NI62_O 3.63413E-04 450.00
NI64_7 NI64_O 9.25497E-05 450.00
t_composition(:, 9)= NA23_7 NA23_O 2.39160E-02 450.00
t_composition(:, 10)= CR50_7 CR50_O 8.17351E-04 450.00
CR52_7 CR52_O 1.57623E-02 450.00
CR53_7 CR53_O 1.78728E-03 450.00
CR54_7 CR54_O 4.44885E-04 450.00
FE54_7 FE54_O 3.48075E-03 450.00
FE56_7 FE56_O 5.46400E-02 450.00
FE57_7 FE57_O 1.26184E-03 450.00
FE58_7 FE58_O 1.67927E-04 450.00
NI58_7 NI58_O 6.80694E-03 450.00
NI60_7 NI60_O 2.62205E-03 450.00
NI61_7 NI61_O 1.13973E-04 450.00
NI62_7 NI62_O 3.63413E-04 450.00
NI64_7 NI64_O 9.25497E-05 450.00
t_composition(:, 11)= NA23_7 NA23_O 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 1 1
1 3 1 3 1
1
r_location = 0.80133 1.13331 1.23518 1.66350 1.78141
1.85000 3.32428 3.41451 4.05154 4.21200
4.22537
i_composition = 1 2 3 4 5
6 7 8 9 10
11
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG15.merged i=REG_01 n=REG_15
mv ISOTXS.REG15.merged ISOTXS.REG15
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Spring_Void (P)
! ============================================================
!
t_composition(:, 1)= O16__7 O16__P 3.75126E-03 450.00
NA23_7 NA23_P 7.06638E-03 450.00
CR50_7 CR50_P 1.93740E-04 450.00
CR52_7 CR52_P 3.73613E-03 450.00
CR53_7 CR53_P 4.23649E-04 450.00
CR54_7 CR54_P 1.05453E-04 450.00
FE54_7 FE54_P 8.68710E-04 450.00
FE56_7 FE56_P 1.36368E-02 450.00
FE57_7 FE57_P 3.14925E-04 450.00
FE58_7 FE58_P 4.19105E-05 450.00
MO1007 MO100P 1.13768E-05 450.00
MO92_7 MO92_P 1.75326E-05 450.00
MO94_7 MO94_P 1.09280E-05 450.00
MO95_7 MO95_P 1.88087E-05 450.00
MO96_7 MO96_P 1.97063E-05 450.00
MO97_7 MO97_P 1.12825E-05 450.00
MO98_7 MO98_P 2.85077E-05 450.00
NI58_7 NI58_P 1.78699E-03 450.00
NI60_7 NI60_P 6.88354E-04 450.00
NI61_7 NI61_P 2.99211E-05 450.00
NI62_7 NI62_P 9.54048E-05 450.00
NI64_7 NI64_P 2.42971E-05 450.00
BE9__7 BE9__P 3.75126E-03 450.00
B10__7 B10__P 4.75018E-04 450.00
B11__7 B11__P 1.91202E-03 450.00
C____7 C12__P 5.96748E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG16.merged i=REG_01 n=REG_16
mv ISOTXS.REG16.merged ISOTXS.REG16
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 9
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! GA_6_2_Fuel_St (Q)
! ============================================================
!
t_composition(:, 1)= BE9__7 BE9__Q 5.39439E-02 450.00
O16__7 O16__Q 5.39439E-02 450.00
CR50_7 CR50_Q 1.20548E-04 450.00
CR52_7 CR52_Q 2.32460E-03 450.00
CR53_7 CR53_Q 2.63605E-04 450.00
CR54_7 CR54_Q 6.56154E-05 450.00
FE54_7 FE54_Q 5.95077E-04 450.00
FE56_7 FE56_Q 9.34136E-03 450.00
FE57_7 FE57_Q 2.15727E-04 450.00
FE58_7 FE58_Q 2.87093E-05 450.00
MO1007 MO100Q 2.12956E-05 450.00
MO92_7 MO92_Q 3.28181E-05 450.00
MO94_7 MO94_Q 2.04554E-05 450.00
MO95_7 MO95_Q 3.52068E-05 450.00
MO96_7 MO96_Q 3.68870E-05 450.00
MO97_7 MO97_Q 2.11189E-05 450.00
MO98_7 MO98_Q 5.33619E-05 450.00
NI58_7 NI58_Q 1.32873E-03 450.00
NI60_7 NI60_Q 5.11828E-04 450.00
NI61_7 NI61_Q 2.22483E-05 450.00
NI62_7 NI62_Q 7.09384E-05 450.00
NI64_7 NI64_Q 1.80668E-05 450.00
t_composition(:, 2)= NA23_7 NA23_Q 2.39160E-02 450.00
t_composition(:, 3)= CR50_7 CR50_Q 8.17351E-04 450.00
CR52_7 CR52_Q 1.57623E-02 450.00
CR53_7 CR53_Q 1.78728E-03 450.00
CR54_7 CR54_Q 4.44885E-04 450.00
FE54_7 FE54_Q 3.48075E-03 450.00
FE56_7 FE56_Q 5.46400E-02 450.00
FE57_7 FE57_Q 1.26184E-03 450.00
FE58_7 FE58_Q 1.67927E-04 450.00
NI58_7 NI58_Q 6.80694E-03 450.00
NI60_7 NI60_Q 2.62205E-03 450.00
NI61_7 NI61_Q 1.13973E-04 450.00
NI62_7 NI62_Q 3.63413E-04 450.00
NI64_7 NI64_Q 9.25497E-05 450.00
t_composition(:, 4)= PU2397 PU239Q 3.32051E-03 450.00
PU2407 PU240Q 2.98177E-04 450.00
U235_7 U235_Q 3.12105E-05 450.00
U238_7 U238_Q 1.41554E-02 450.00
O16__7 O16__Q 3.55742E-02 450.00
CR50_7 CR50_Q 1.09257E-04 450.00
CR52_7 CR52_Q 2.10686E-03 450.00
CR53_7 CR53_Q 2.38914E-04 450.00
CR54_7 CR54_Q 5.94694E-05 450.00
FE54_7 FE54_Q 5.39338E-04 450.00
FE56_7 FE56_Q 8.46638E-03 450.00
FE57_7 FE57_Q 1.95521E-04 450.00
FE58_7 FE58_Q 2.60202E-05 450.00
MO1007 MO100Q 1.93009E-05 450.00
MO92_7 MO92_Q 2.97441E-05 450.00
MO94_7 MO94_Q 1.85394E-05 450.00
MO95_7 MO95_Q 3.19091E-05 450.00
MO96_7 MO96_Q 3.34319E-05 450.00
MO97_7 MO97_Q 1.91407E-05 450.00
MO98_7 MO98_Q 4.83636E-05 450.00
NI58_7 NI58_Q 1.20427E-03 450.00
NI60_7 NI60_Q 4.63886E-04 450.00
NI61_7 NI61_Q 2.01643E-05 450.00
NI62_7 NI62_Q 6.42938E-05 450.00
NI64_7 NI64_Q 1.63745E-05 450.00
t_composition(:, 5)= PU2397 PU239Q 4.43913E-03 450.00
PU2407 PU240Q 3.98634E-04 450.00
U235_7 U235_Q 2.85195E-05 450.00
U238_7 U238_Q 1.29349E-02 450.00
O16__7 O16__Q 3.55539E-02 450.00
CR50_7 CR50_Q 1.09257E-04 450.00
CR52_7 CR52_Q 2.10686E-03 450.00
CR53_7 CR53_Q 2.38914E-04 450.00
CR54_7 CR54_Q 5.94694E-05 450.00
FE54_7 FE54_Q 5.39338E-04 450.00
FE56_7 FE56_Q 8.46638E-03 450.00
FE57_7 FE57_Q 1.95521E-04 450.00
FE58_7 FE58_Q 2.60202E-05 450.00
MO1007 MO100Q 1.93009E-05 450.00
MO92_7 MO92_Q 2.97441E-05 450.00
MO94_7 MO94_Q 1.85394E-05 450.00
MO95_7 MO95_Q 3.19091E-05 450.00
MO96_7 MO96_Q 3.34319E-05 450.00
MO97_7 MO97_Q 1.91407E-05 450.00
MO98_7 MO98_Q 4.83636E-05 450.00
NI58_7 NI58_Q 1.20427E-03 450.00
NI60_7 NI60_Q 4.63886E-04 450.00
NI61_7 NI61_Q 2.01643E-05 450.00
NI62_7 NI62_Q 6.42938E-05 450.00
NI64_7 NI64_Q 1.63745E-05 450.00
t_composition(:, 6)= CR50_7 CR50_Q 8.17351E-04 450.00
CR52_7 CR52_Q 1.57623E-02 450.00
CR53_7 CR53_Q 1.78728E-03 450.00
CR54_7 CR54_Q 4.44885E-04 450.00
FE54_7 FE54_Q 3.48075E-03 450.00
FE56_7 FE56_Q 5.46400E-02 450.00
FE57_7 FE57_Q 1.26184E-03 450.00
FE58_7 FE58_Q 1.67927E-04 450.00
NI58_7 NI58_Q 6.80694E-03 450.00
NI60_7 NI60_Q 2.62205E-03 450.00
NI61_7 NI61_Q 1.13973E-04 450.00
NI62_7 NI62_Q 3.63413E-04 450.00
NI64_7 NI64_Q 9.25497E-05 450.00
t_composition(:, 7)= NA23_7 NA23_Q 2.39160E-02 450.00
t_composition(:, 8)= CR50_7 CR50_Q 8.17351E-04 450.00
CR52_7 CR52_Q 1.57623E-02 450.00
CR53_7 CR53_Q 1.78728E-03 450.00
CR54_7 CR54_Q 4.44885E-04 450.00
FE54_7 FE54_Q 3.48075E-03 450.00
FE56_7 FE56_Q 5.46400E-02 450.00
FE57_7 FE57_Q 1.26184E-03 450.00
FE58_7 FE58_Q 1.67927E-04 450.00
NI58_7 NI58_Q 6.80694E-03 450.00
NI60_7 NI60_Q 2.62205E-03 450.00
NI61_7 NI61_Q 1.13973E-04 450.00
NI62_7 NI62_Q 3.63413E-04 450.00
NI64_7 NI64_Q 9.25497E-05 450.00
t_composition(:, 9)= NA23_7 NA23_Q 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 3 2
1 3 1 1
r_location = 1.11426 1.28366 1.37726 2.82834 3.32428
3.41451 4.05154 4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8 9
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG17.merged i=REG_01 n=REG_17
mv ISOTXS.REG17.merged ISOTXS.REG17
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 12
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! GA_AFA_6_1_1_Fuel_St (R)
! ============================================================
!
t_composition(:, 1)= CR50_7 CR50_R 8.17447E-04 450.00
CR52_7 CR52_R 1.57642E-02 450.00
CR53_7 CR53_R 1.78749E-03 450.00
CR54_7 CR54_R 4.44937E-04 450.00
FE54_7 FE54_R 3.48116E-03 450.00
FE56_7 FE56_R 5.46464E-02 450.00
FE57_7 FE57_R 1.26199E-03 450.00
FE58_7 FE58_R 1.67947E-04 450.00
NI58_7 NI58_R 6.80774E-03 450.00
NI60_7 NI60_R 2.62236E-03 450.00
NI61_7 NI61_R 1.13987E-04 450.00
NI62_7 NI62_R 3.63455E-04 450.00
NI64_7 NI64_R 9.25606E-05 450.00
t_composition(:, 2)= B10__7 B10__R 1.32047E-02 450.00
B11__7 B11__R 5.31509E-02 450.00
C____7 C12__R 1.65886E-02 450.00
t_composition(:, 3)= CR50_7 CR50_R 6.90859E-04 450.00
CR52_7 CR52_R 1.33222E-02 450.00
CR53_7 CR53_R 1.51071E-03 450.00
CR54_7 CR54_R 3.76040E-04 450.00
FE54_7 FE54_R 3.41037E-03 450.00
FE56_7 FE56_R 5.35351E-02 450.00
FE57_7 FE57_R 1.23633E-03 450.00
FE58_7 FE58_R 1.64532E-04 450.00
MO1007 MO100R 1.22044E-04 450.00
MO92_7 MO92_R 1.88080E-04 450.00
MO94_7 MO94_R 1.17230E-04 450.00
MO95_7 MO95_R 2.01769E-04 450.00
MO96_7 MO96_R 2.11398E-04 450.00
MO97_7 MO97_R 1.21032E-04 450.00
MO98_7 MO98_R 3.05815E-04 450.00
NI58_7 NI58_R 7.61491E-03 450.00
NI60_7 NI60_R 2.93327E-03 450.00
NI61_7 NI61_R 1.27504E-04 450.00
NI62_7 NI62_R 4.06546E-04 450.00
NI64_7 NI64_R 1.03540E-04 450.00
t_composition(:, 4)= BE9__7 BE9__R 5.39439E-02 450.00
O16__7 O16__R 5.39439E-02 450.00
CR50_7 CR50_R 1.20548E-04 450.00
CR52_7 CR52_R 2.32460E-03 450.00
CR53_7 CR53_R 2.63605E-04 450.00
CR54_7 CR54_R 6.56154E-05 450.00
FE54_7 FE54_R 5.95077E-04 450.00
FE56_7 FE56_R 9.34136E-03 450.00
FE57_7 FE57_R 2.15727E-04 450.00
FE58_7 FE58_R 2.87093E-05 450.00
MO1007 MO100R 2.12956E-05 450.00
MO92_7 MO92_R 3.28181E-05 450.00
MO94_7 MO94_R 2.04554E-05 450.00
MO95_7 MO95_R 3.52068E-05 450.00
MO96_7 MO96_R 3.68870E-05 450.00
MO97_7 MO97_R 2.11189E-05 450.00
MO98_7 MO98_R 5.33619E-05 450.00
NI58_7 NI58_R 1.32873E-03 450.00
NI60_7 NI60_R 5.11828E-04 450.00
NI61_7 NI61_R 2.22483E-05 450.00
NI62_7 NI62_R 7.09384E-05 450.00
NI64_7 NI64_R 1.80668E-05 450.00
t_composition(:, 5)= NA23_7 NA23_R 2.39160E-02 450.00
t_composition(:, 6)= CR50_7 CR50_R 8.17351E-04 450.00
CR52_7 CR52_R 1.57623E-02 450.00
CR53_7 CR53_R 1.78728E-03 450.00
CR54_7 CR54_R 4.44885E-04 450.00
FE54_7 FE54_R 3.48075E-03 450.00
FE56_7 FE56_R 5.46400E-02 450.00
FE57_7 FE57_R 1.26184E-03 450.00
FE58_7 FE58_R 1.67927E-04 450.00
NI58_7 NI58_R 6.80694E-03 450.00
NI60_7 NI60_R 2.62205E-03 450.00
NI61_7 NI61_R 1.13973E-04 450.00
NI62_7 NI62_R 3.63413E-04 450.00
NI64_7 NI64_R 9.25497E-05 450.00
t_composition(:, 7)= PU2397 PU239R 3.32051E-03 450.00
PU2407 PU240R 2.98177E-04 450.00
U235_7 U235_R 3.12105E-05 450.00
U238_7 U238_R 1.41554E-02 450.00
O16__7 O16__R 3.55742E-02 450.00
CR50_7 CR50_R 1.09257E-04 450.00
CR52_7 CR52_R 2.10686E-03 450.00
CR53_7 CR53_R 2.38914E-04 450.00
CR54_7 CR54_R 5.94694E-05 450.00
FE54_7 FE54_R 5.39338E-04 450.00
FE56_7 FE56_R 8.46638E-03 450.00
FE57_7 FE57_R 1.95521E-04 450.00
FE58_7 FE58_R 2.60202E-05 450.00
MO1007 MO100R 1.93009E-05 450.00
MO92_7 MO92_R 2.97441E-05 450.00
MO94_7 MO94_R 1.85394E-05 450.00
MO95_7 MO95_R 3.19091E-05 450.00
MO96_7 MO96_R 3.34319E-05 450.00
MO97_7 MO97_R 1.91407E-05 450.00
MO98_7 MO98_R 4.83636E-05 450.00
NI58_7 NI58_R 1.20427E-03 450.00
NI60_7 NI60_R 4.63886E-04 450.00
NI61_7 NI61_R 2.01643E-05 450.00
NI62_7 NI62_R 6.42938E-05 450.00
NI64_7 NI64_R 1.63745E-05 450.00
t_composition(:, 8)= PU2397 PU239R 4.43913E-03 450.00
PU2407 PU240R 3.98634E-04 450.00
U235_7 U235_R 2.85195E-05 450.00
U238_7 U238_R 1.29349E-02 450.00
O16__7 O16__R 3.55539E-02 450.00
CR50_7 CR50_R 1.09257E-04 450.00
CR52_7 CR52_R 2.10686E-03 450.00
CR53_7 CR53_R 2.38914E-04 450.00
CR54_7 CR54_R 5.94694E-05 450.00
FE54_7 FE54_R 5.39338E-04 450.00
FE56_7 FE56_R 8.46638E-03 450.00
FE57_7 FE57_R 1.95521E-04 450.00
FE58_7 FE58_R 2.60202E-05 450.00
MO1007 MO100R 1.93009E-05 450.00
MO92_7 MO92_R 2.97441E-05 450.00
MO94_7 MO94_R 1.85394E-05 450.00
MO95_7 MO95_R 3.19091E-05 450.00
MO96_7 MO96_R 3.34319E-05 450.00
MO97_7 MO97_R 1.91407E-05 450.00
MO98_7 MO98_R 4.83636E-05 450.00
NI58_7 NI58_R 1.20427E-03 450.00
NI60_7 NI60_R 4.63886E-04 450.00
NI61_7 NI61_R 2.01643E-05 450.00
NI62_7 NI62_R 6.42938E-05 450.00
NI64_7 NI64_R 1.63745E-05 450.00
t_composition(:, 9)= CR50_7 CR50_R 8.17351E-04 450.00
CR52_7 CR52_R 1.57623E-02 450.00
CR53_7 CR53_R 1.78728E-03 450.00
CR54_7 CR54_R 4.44885E-04 450.00
FE54_7 FE54_R 3.48075E-03 450.00
FE56_7 FE56_R 5.46400E-02 450.00
FE57_7 FE57_R 1.26184E-03 450.00
FE58_7 FE58_R 1.67927E-04 450.00
NI58_7 NI58_R 6.80694E-03 450.00
NI60_7 NI60_R 2.62205E-03 450.00
NI61_7 NI61_R 1.13973E-04 450.00
NI62_7 NI62_R 3.63413E-04 450.00
NI64_7 NI64_R 9.25497E-05 450.00
t_composition(:, 10)= NA23_7 NA23_R 2.39160E-02 450.00
t_composition(:, 11)= CR50_7 CR50_R 8.17351E-04 450.00
CR52_7 CR52_R 1.57623E-02 450.00
CR53_7 CR53_R 1.78728E-03 450.00
CR54_7 CR54_R 4.44885E-04 450.00
FE54_7 FE54_R 3.48075E-03 450.00
FE56_7 FE56_R 5.46400E-02 450.00
FE57_7 FE57_R 1.26184E-03 450.00
FE58_7 FE58_R 1.67927E-04 450.00
NI58_7 NI58_R 6.80694E-03 450.00
NI60_7 NI60_R 2.62205E-03 450.00
NI61_7 NI61_R 1.13973E-04 450.00
NI62_7 NI62_R 3.63413E-04 450.00
NI64_7 NI64_R 9.25497E-05 450.00
t_composition(:, 12)= NA23_7 NA23_R 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 1 1
1 3 1 1 3
1 1
r_location = 0.80133 1.13331 1.23518 1.66350 1.78141
1.85000 3.08628 3.32428 3.41451 4.05154
4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8 9 10
11 12
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG18.merged i=REG_01 n=REG_18
mv ISOTXS.REG18.merged ISOTXS.REG18
!
! ============================================================
!
cat > input << EOF
\$control
c_isotxs_conversion = bin2asc
/
\$output
c_isotxs_file = ISOTXS.REG01
ISOTXS.REG02
ISOTXS.REG03
ISOTXS.REG04
ISOTXS.REG05
ISOTXS.REG06
ISOTXS.REG07
ISOTXS.REG08
ISOTXS.REG09
ISOTXS.REG10
ISOTXS.REG11
ISOTXS.REG12
ISOTXS.REG13
ISOTXS.REG14
ISOTXS.REG15
ISOTXS.REG16
ISOTXS.REG17
ISOTXS.REG18
/
EOF
$exe_mcc3
mv ISOTXS.merged $0.ISOTXS.1041g.bin
mv ISOTXS.merged.ascii $0.ISOTXS.1041g.ascii
rm ISOTXS.* input* output.* pw* out.*
(sfr/sefor/Cross_Section/Core-I-E_450K_ENDF71_step1.inp)
################################################################################
## NEAMS Fast Reactor Application Driver ##
## SEFOR MCC3 Model of SEFOR Core I-E at 450 K ##
## Input File for generating cross sections ##
## Please contact the authors for issues: ##
## - Dr. Donny Hartanto (hartantod.at.ornl.gov) ##
################################################################################
#!/bin/bash
lib_mcclibdir=../lib.mcc.e71
lib_pwlibdir=../lib.pw.200.e71
exe_twodant=../twodant.x
exe_mcc3=../mcc3.x
exe_isotxs_modify=../ISOTXS_Modify.x
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Na_GP_b (A)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_A 1.68850E-02 450.00
CR50_7 CR50_A 1.99835E-04 450.00
CR52_7 CR52_A 3.85357E-03 450.00
CR53_7 CR53_A 4.36962E-04 450.00
CR54_7 CR54_A 1.08771E-04 450.00
FE54_7 FE54_A 8.50997E-04 450.00
FE56_7 FE56_A 1.33588E-02 450.00
FE57_7 FE57_A 3.08517E-04 450.00
FE58_7 FE58_A 4.10573E-05 450.00
NI58_7 NI58_A 1.66423E-03 450.00
NI60_7 NI60_A 6.41055E-04 450.00
NI61_7 NI61_A 2.78666E-05 450.00
NI62_7 NI62_A 8.88497E-05 450.00
NI64_7 NI64_A 2.26275E-05 450.00
B10__7 B10__A 6.60243E-04 450.00
B11__7 B11__A 2.65754E-03 450.00
C____7 C12__A 8.29451E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG01.merged i=REG_01 n=REG_01
mv ISOTXS.REG01.merged ISOTXS.REG01
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FRED (B)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_B 1.51201E-04 450.00
CR50_7 CR50_B 1.14143E-04 450.00
CR52_7 CR52_B 2.20114E-03 450.00
CR53_7 CR53_B 2.49595E-04 450.00
CR54_7 CR54_B 6.21283E-05 450.00
FE54_7 FE54_B 5.22298E-04 450.00
FE56_7 FE56_B 8.19891E-03 450.00
FE57_7 FE57_B 1.89344E-04 450.00
FE58_7 FE58_B 2.51981E-05 450.00
MO1007 MO100B 9.43776E-06 450.00
MO92_7 MO92_B 1.45443E-05 450.00
MO94_7 MO94_B 9.06544E-06 450.00
MO95_7 MO95_B 1.56029E-05 450.00
MO96_7 MO96_B 1.63476E-05 450.00
MO97_7 MO97_B 9.35944E-06 450.00
MO98_7 MO98_B 2.36489E-05 450.00
NI58_7 NI58_B 1.09453E-03 450.00
NI60_7 NI60_B 4.21614E-04 450.00
NI61_7 NI61_B 1.83266E-05 450.00
NI62_7 NI62_B 5.84351E-05 450.00
NI64_7 NI64_B 1.48820E-05 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG02.merged i=REG_01 n=REG_02
mv ISOTXS.REG02.merged ISOTXS.REG02
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! DC_IV (C)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_C 1.48350E-02 450.00
CR50_7 CR50_C 2.34745E-04 450.00
CR52_7 CR52_C 4.52673E-03 450.00
CR53_7 CR53_C 5.13299E-04 450.00
CR54_7 CR54_C 1.27773E-04 450.00
FE54_7 FE54_C 9.99616E-04 450.00
FE56_7 FE56_C 1.56923E-02 450.00
FE57_7 FE57_C 3.62408E-04 450.00
FE58_7 FE58_C 4.82292E-05 450.00
NI58_7 NI58_C 1.95489E-03 450.00
NI60_7 NI60_C 7.53037E-04 450.00
NI61_7 NI61_C 3.27337E-05 450.00
NI62_7 NI62_C 1.04375E-04 450.00
NI64_7 NI64_C 2.65802E-05 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG03.merged i=REG_01 n=REG_03
mv ISOTXS.REG03.merged ISOTXS.REG03
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! DC_OV (D)
! ============================================================
!
t_composition(:, 1)= MG24_7 MG24_D 4.12309E-04 450.00
MG25_7 MG25_D 5.21977E-05 450.00
MG26_7 MG26_D 5.74694E-05 450.00
AL27_7 AL27_D 1.12844E-02 450.00
CR50_7 CR50_D 1.28512E-04 450.00
CR52_7 CR52_D 2.47827E-03 450.00
CR53_7 CR53_D 2.81011E-04 450.00
CR54_7 CR54_D 6.99491E-05 450.00
FE54_7 FE54_D 5.47272E-04 450.00
FE56_7 FE56_D 8.59100E-03 450.00
FE57_7 FE57_D 1.98405E-04 450.00
FE58_7 FE58_D 2.64034E-05 450.00
NI58_7 NI58_D 1.07022E-03 450.00
NI60_7 NI60_D 4.12259E-04 450.00
NI61_7 NI61_D 1.79202E-05 450.00
NI62_7 NI62_D 5.71389E-05 450.00
NI64_7 NI64_D 1.45518E-05 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG04.merged i=REG_01 n=REG_04
mv ISOTXS.REG04.merged ISOTXS.REG04
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Reflector_Steel_Void (E)
! ============================================================
!
t_composition(:, 1)= CR50_7 CR50_E 1.23500E-04 450.00
CR52_7 CR52_E 2.38160E-03 450.00
CR53_7 CR53_E 2.70060E-04 450.00
CR54_7 CR54_E 6.72230E-05 450.00
FE54_7 FE54_E 5.25940E-04 450.00
FE56_7 FE56_E 8.25610E-03 450.00
FE57_7 FE57_E 1.90670E-04 450.00
FE58_7 FE58_E 2.53750E-05 450.00
NI58_7 NI58_E 1.02850E-03 450.00
NI60_7 NI60_E 3.96190E-04 450.00
NI61_7 NI61_E 1.72220E-05 450.00
NI62_7 NI62_E 5.49120E-05 450.00
NI64_7 NI64_E 1.39840E-05 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG05.merged i=REG_01 n=REG_05
mv ISOTXS.REG05.merged ISOTXS.REG05
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Reflector_Refl (F)
! ============================================================
!
t_composition(:, 1)= MG24_7 MG24_F 7.44450E-05 450.00
MG25_7 MG25_F 9.42463E-06 450.00
MG26_7 MG26_F 1.03762E-05 450.00
AL27_7 AL27_F 2.03752E-03 450.00
CR50_7 CR50_F 2.77734E-05 450.00
CR52_7 CR52_F 5.35588E-04 450.00
CR53_7 CR53_F 6.07314E-05 450.00
CR54_7 CR54_F 1.51177E-05 450.00
FE54_7 FE54_F 1.18273E-04 450.00
FE56_7 FE56_F 1.85668E-03 450.00
FE57_7 FE57_F 4.28782E-05 450.00
FE58_7 FE58_F 5.70638E-06 450.00
NI58_7 NI58_F 4.99710E-02 450.00
NI60_7 NI60_F 1.92485E-02 450.00
NI61_7 NI61_F 8.36735E-04 450.00
NI62_7 NI62_F 2.66786E-03 450.00
NI64_7 NI64_F 6.79430E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG06.merged i=REG_01 n=REG_06
mv ISOTXS.REG06.merged ISOTXS.REG06
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Rad_Shld (G)
! ============================================================
!
t_composition(:, 1)= MG24_7 MG24_G 2.71254E-04 450.00
MG25_7 MG25_G 3.43404E-05 450.00
MG26_7 MG26_G 3.78086E-05 450.00
CR50_7 CR50_G 9.86654E-05 450.00
CR52_7 CR52_G 1.90267E-03 450.00
CR53_7 CR53_G 2.15751E-04 450.00
CR54_7 CR54_G 5.37036E-05 450.00
FE54_7 FE54_G 4.20168E-04 450.00
FE56_7 FE56_G 6.59577E-03 450.00
FE57_7 FE57_G 1.52329E-04 450.00
FE58_7 FE58_G 2.02719E-05 450.00
NI58_7 NI58_G 8.21692E-04 450.00
NI60_7 NI60_G 3.16512E-04 450.00
NI61_7 NI61_G 1.37589E-05 450.00
NI62_7 NI62_G 4.38683E-05 450.00
NI64_7 NI64_G 1.11725E-05 450.00
B10__7 B10__G 5.40601E-03 450.00
B11__7 B11__G 2.17599E-02 450.00
C____7 C12__G 6.79150E-03 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG07.merged i=REG_01 n=REG_07
mv ISOTXS.REG07.merged ISOTXS.REG07
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Na_steel_t (H)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_H 1.35120E-02 450.00
CR50_7 CR50_H 2.66172E-04 450.00
CR52_7 CR52_H 5.13286E-03 450.00
CR53_7 CR53_H 5.82020E-04 450.00
CR54_7 CR54_H 1.44878E-04 450.00
FE54_7 FE54_H 1.13346E-03 450.00
FE56_7 FE56_H 1.77932E-02 450.00
FE57_7 FE57_H 4.10931E-04 450.00
FE58_7 FE58_H 5.46867E-05 450.00
NI58_7 NI58_H 2.21669E-03 450.00
NI60_7 NI60_H 8.53861E-04 450.00
NI61_7 NI61_H 3.71173E-05 450.00
NI62_7 NI62_H 1.18350E-04 450.00
NI64_7 NI64_H 3.01385E-05 450.00
B10__7 B10__H 6.60243E-04 450.00
B11__7 B11__H 2.65754E-03 450.00
C____7 C12__H 8.29451E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG08.merged i=REG_01 n=REG_08
mv ISOTXS.REG08.merged ISOTXS.REG08
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Ni_Axial (I)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_I 7.06638E-03 450.00
CR50_7 CR50_I 1.64340E-04 450.00
CR52_7 CR52_I 3.16916E-03 450.00
CR53_7 CR53_I 3.59360E-04 450.00
CR54_7 CR54_I 8.94507E-05 450.00
FE54_7 FE54_I 7.43507E-04 450.00
FE56_7 FE56_I 1.16714E-02 450.00
FE57_7 FE57_I 2.69536E-04 450.00
FE58_7 FE58_I 3.58702E-05 450.00
MO1007 MO100I 1.13768E-05 450.00
MO92_7 MO92_I 1.75326E-05 450.00
MO94_7 MO94_I 1.09280E-05 450.00
MO95_7 MO95_I 1.88087E-05 450.00
MO96_7 MO96_I 1.97063E-05 450.00
MO97_7 MO97_I 1.12825E-05 450.00
MO98_7 MO98_I 2.85077E-05 450.00
NI58_7 NI58_I 2.95620E-02 450.00
NI60_7 NI60_I 1.13874E-02 450.00
NI61_7 NI61_I 4.94973E-04 450.00
NI62_7 NI62_I 1.57827E-03 450.00
NI64_7 NI64_I 4.01938E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG09.merged i=REG_01 n=REG_09
mv ISOTXS.REG09.merged ISOTXS.REG09
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 8
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Fuel_insul (J)
! ============================================================
!
t_composition(:, 1)= BE9__7 BE9__J 5.39439E-02 450.00
O16__7 O16__J 5.39439E-02 450.00
CR50_7 CR50_J 1.20548E-04 450.00
CR52_7 CR52_J 2.32460E-03 450.00
CR53_7 CR53_J 2.63605E-04 450.00
CR54_7 CR54_J 6.56154E-05 450.00
FE54_7 FE54_J 5.95077E-04 450.00
FE56_7 FE56_J 9.34136E-03 450.00
FE57_7 FE57_J 2.15727E-04 450.00
FE58_7 FE58_J 2.87093E-05 450.00
MO1007 MO100J 2.12956E-05 450.00
MO92_7 MO92_J 3.28181E-05 450.00
MO94_7 MO94_J 2.04554E-05 450.00
MO95_7 MO95_J 3.52068E-05 450.00
MO96_7 MO96_J 3.68870E-05 450.00
MO97_7 MO97_J 2.11189E-05 450.00
MO98_7 MO98_J 5.33619E-05 450.00
NI58_7 NI58_J 1.32873E-03 450.00
NI60_7 NI60_J 5.11828E-04 450.00
NI61_7 NI61_J 2.22483E-05 450.00
NI62_7 NI62_J 7.09384E-05 450.00
NI64_7 NI64_J 1.80668E-05 450.00
t_composition(:, 2)= NA23_7 NA23_J 2.39160E-02 450.00
t_composition(:, 3)= CR50_7 CR50_J 8.17351E-04 450.00
CR52_7 CR52_J 1.57623E-02 450.00
CR53_7 CR53_J 1.78728E-03 450.00
CR54_7 CR54_J 4.44885E-04 450.00
FE54_7 FE54_J 3.48075E-03 450.00
FE56_7 FE56_J 5.46400E-02 450.00
FE57_7 FE57_J 1.26184E-03 450.00
FE58_7 FE58_J 1.67927E-04 450.00
NI58_7 NI58_J 6.80694E-03 450.00
NI60_7 NI60_J 2.62205E-03 450.00
NI61_7 NI61_J 1.13973E-04 450.00
NI62_7 NI62_J 3.63413E-04 450.00
NI64_7 NI64_J 9.25497E-05 450.00
t_composition(:, 4)= U235_7 U235_J 4.00448E-05 450.00
U238_7 U238_J 1.81622E-02 450.00
O16__7 O16__J 3.64046E-02 450.00
CR50_7 CR50_J 1.09257E-04 450.00
CR52_7 CR52_J 2.10686E-03 450.00
CR53_7 CR53_J 2.38914E-04 450.00
CR54_7 CR54_J 5.94694E-05 450.00
FE54_7 FE54_J 5.39338E-04 450.00
FE56_7 FE56_J 8.46638E-03 450.00
FE57_7 FE57_J 1.95521E-04 450.00
FE58_7 FE58_J 2.60202E-05 450.00
MO1007 MO100J 1.93009E-05 450.00
MO92_7 MO92_J 2.97441E-05 450.00
MO94_7 MO94_J 1.85394E-05 450.00
MO95_7 MO95_J 3.19091E-05 450.00
MO96_7 MO96_J 3.34319E-05 450.00
MO97_7 MO97_J 1.91407E-05 450.00
MO98_7 MO98_J 4.83636E-05 450.00
NI58_7 NI58_J 1.20427E-03 450.00
NI60_7 NI60_J 4.63886E-04 450.00
NI61_7 NI61_J 2.01643E-05 450.00
NI62_7 NI62_J 6.42938E-05 450.00
NI64_7 NI64_J 1.63745E-05 450.00
t_composition(:, 5)= CR50_7 CR50_J 8.17351E-04 450.00
CR52_7 CR52_J 1.57623E-02 450.00
CR53_7 CR53_J 1.78728E-03 450.00
CR54_7 CR54_J 4.44885E-04 450.00
FE54_7 FE54_J 3.48075E-03 450.00
FE56_7 FE56_J 5.46400E-02 450.00
FE57_7 FE57_J 1.26184E-03 450.00
FE58_7 FE58_J 1.67927E-04 450.00
NI58_7 NI58_J 6.80694E-03 450.00
NI60_7 NI60_J 2.62205E-03 450.00
NI61_7 NI61_J 1.13973E-04 450.00
NI62_7 NI62_J 3.63413E-04 450.00
NI64_7 NI64_J 9.25497E-05 450.00
t_composition(:, 6)= NA23_7 NA23_J 2.39160E-02 450.00
t_composition(:, 7)= CR50_7 CR50_J 8.17351E-04 450.00
CR52_7 CR52_J 1.57623E-02 450.00
CR53_7 CR53_J 1.78728E-03 450.00
CR54_7 CR54_J 4.44885E-04 450.00
FE54_7 FE54_J 3.48075E-03 450.00
FE56_7 FE56_J 5.46400E-02 450.00
FE57_7 FE57_J 1.26184E-03 450.00
FE58_7 FE58_J 1.67927E-04 450.00
NI58_7 NI58_J 6.80694E-03 450.00
NI60_7 NI60_J 2.62205E-03 450.00
NI61_7 NI61_J 1.13973E-04 450.00
NI62_7 NI62_J 3.63413E-04 450.00
NI64_7 NI64_J 9.25497E-05 450.00
t_composition(:, 8)= NA23_7 NA23_J 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 3 1
3 1 1
r_location = 1.11426 1.28366 1.37726 3.32428 3.41451
4.05154 4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG10.merged i=REG_01 n=REG_10
mv ISOTXS.REG10.merged ISOTXS.REG10
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 8
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Fuel_St (K)
! ============================================================
!
t_composition(:, 1)= BE9__7 BE9__K 5.39439E-02 450.00
O16__7 O16__K 5.39439E-02 450.00
CR50_7 CR50_K 1.20548E-04 450.00
CR52_7 CR52_K 2.32460E-03 450.00
CR53_7 CR53_K 2.63605E-04 450.00
CR54_7 CR54_K 6.56154E-05 450.00
FE54_7 FE54_K 5.95077E-04 450.00
FE56_7 FE56_K 9.34136E-03 450.00
FE57_7 FE57_K 2.15727E-04 450.00
FE58_7 FE58_K 2.87093E-05 450.00
MO1007 MO100K 2.12956E-05 450.00
MO92_7 MO92_K 3.28181E-05 450.00
MO94_7 MO94_K 2.04554E-05 450.00
MO95_7 MO95_K 3.52068E-05 450.00
MO96_7 MO96_K 3.68870E-05 450.00
MO97_7 MO97_K 2.11189E-05 450.00
MO98_7 MO98_K 5.33619E-05 450.00
NI58_7 NI58_K 1.32873E-03 450.00
NI60_7 NI60_K 5.11828E-04 450.00
NI61_7 NI61_K 2.22483E-05 450.00
NI62_7 NI62_K 7.09384E-05 450.00
NI64_7 NI64_K 1.80668E-05 450.00
t_composition(:, 2)= NA23_7 NA23_K 2.39160E-02 450.00
t_composition(:, 3)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 4)= PU2397 PU239K 3.32051E-03 450.00
PU2407 PU240K 2.98177E-04 450.00
U235_7 U235_K 3.12105E-05 450.00
U238_7 U238_K 1.41554E-02 450.00
O16__7 O16__K 3.55742E-02 450.00
CR50_7 CR50_K 1.09257E-04 450.00
CR52_7 CR52_K 2.10686E-03 450.00
CR53_7 CR53_K 2.38914E-04 450.00
CR54_7 CR54_K 5.94694E-05 450.00
FE54_7 FE54_K 5.39338E-04 450.00
FE56_7 FE56_K 8.46638E-03 450.00
FE57_7 FE57_K 1.95521E-04 450.00
FE58_7 FE58_K 2.60202E-05 450.00
MO1007 MO100K 1.93009E-05 450.00
MO92_7 MO92_K 2.97441E-05 450.00
MO94_7 MO94_K 1.85394E-05 450.00
MO95_7 MO95_K 3.19091E-05 450.00
MO96_7 MO96_K 3.34319E-05 450.00
MO97_7 MO97_K 1.91407E-05 450.00
MO98_7 MO98_K 4.83636E-05 450.00
NI58_7 NI58_K 1.20427E-03 450.00
NI60_7 NI60_K 4.63886E-04 450.00
NI61_7 NI61_K 2.01643E-05 450.00
NI62_7 NI62_K 6.42938E-05 450.00
NI64_7 NI64_K 1.63745E-05 450.00
t_composition(:, 5)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 6)= NA23_7 NA23_K 2.39160E-02 450.00
t_composition(:, 7)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 8)= NA23_7 NA23_K 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 3 1
3 1 1
r_location = 1.11426 1.28366 1.37726 3.32428 3.41451
4.05154 4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG11.merged i=REG_01 n=REG_11
mv ISOTXS.REG11.merged ISOTXS.REG11
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Spring_Void (L)
! ============================================================
!
t_composition(:, 1)= O16__7 O16__L 3.75126E-03 450.00
NA23_7 NA23_L 7.06638E-03 450.00
CR50_7 CR50_L 1.64340E-04 450.00
CR52_7 CR52_L 3.16916E-03 450.00
CR53_7 CR53_L 3.59360E-04 450.00
CR54_7 CR54_L 8.94507E-05 450.00
FE54_7 FE54_L 7.43507E-04 450.00
FE56_7 FE56_L 1.16714E-02 450.00
FE57_7 FE57_L 2.69536E-04 450.00
FE58_7 FE58_L 3.58702E-05 450.00
MO1007 MO100L 1.13768E-05 450.00
MO92_7 MO92_L 1.75326E-05 450.00
MO94_7 MO94_L 1.09280E-05 450.00
MO95_7 MO95_L 1.88087E-05 450.00
MO96_7 MO96_L 1.97063E-05 450.00
MO97_7 MO97_L 1.12825E-05 450.00
MO98_7 MO98_L 2.85077E-05 450.00
NI58_7 NI58_L 1.54215E-03 450.00
NI60_7 NI60_L 5.94038E-04 450.00
NI61_7 NI61_L 2.58214E-05 450.00
NI62_7 NI62_L 8.23328E-05 450.00
NI64_7 NI64_L 2.09681E-05 450.00
BE9__7 BE9__L 3.75126E-03 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG12.merged i=REG_01 n=REG_12
mv ISOTXS.REG12.merged ISOTXS.REG12
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Ni_Axial (M)
! ============================================================
!
t_composition(:, 1)= NA23_7 NA23_M 7.06638E-03 450.00
CR50_7 CR50_M 1.64340E-04 450.00
CR52_7 CR52_M 3.16916E-03 450.00
CR53_7 CR53_M 3.59360E-04 450.00
CR54_7 CR54_M 8.94507E-05 450.00
FE54_7 FE54_M 7.43507E-04 450.00
FE56_7 FE56_M 1.16714E-02 450.00
FE57_7 FE57_M 2.69536E-04 450.00
FE58_7 FE58_M 3.58702E-05 450.00
MO1007 MO100M 1.13768E-05 450.00
MO92_7 MO92_M 1.75326E-05 450.00
MO94_7 MO94_M 1.09280E-05 450.00
MO95_7 MO95_M 1.88087E-05 450.00
MO96_7 MO96_M 1.97063E-05 450.00
MO97_7 MO97_M 1.12825E-05 450.00
MO98_7 MO98_M 2.85077E-05 450.00
NI58_7 NI58_M 2.95620E-02 450.00
NI60_7 NI60_M 1.13874E-02 450.00
NI61_7 NI61_M 4.94973E-04 450.00
NI62_7 NI62_M 1.57827E-03 450.00
NI64_7 NI64_M 4.01938E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG13.merged i=REG_01 n=REG_13
mv ISOTXS.REG13.merged ISOTXS.REG13
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 11
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Fuel_insul (N)
! ============================================================
!
t_composition(:, 1)= CR50_7 CR50_N 8.17447E-04 450.00
CR52_7 CR52_N 1.57642E-02 450.00
CR53_7 CR53_N 1.78749E-03 450.00
CR54_7 CR54_N 4.44937E-04 450.00
FE54_7 FE54_N 3.48116E-03 450.00
FE56_7 FE56_N 5.46464E-02 450.00
FE57_7 FE57_N 1.26199E-03 450.00
FE58_7 FE58_N 1.67947E-04 450.00
NI58_7 NI58_N 6.80774E-03 450.00
NI60_7 NI60_N 2.62236E-03 450.00
NI61_7 NI61_N 1.13987E-04 450.00
NI62_7 NI62_N 3.63455E-04 450.00
NI64_7 NI64_N 9.25606E-05 450.00
t_composition(:, 2)= B10__7 B10__N 1.32047E-02 450.00
B11__7 B11__N 5.31509E-02 450.00
C____7 C12__N 1.65886E-02 450.00
t_composition(:, 3)= CR50_7 CR50_N 6.90859E-04 450.00
CR52_7 CR52_N 1.33222E-02 450.00
CR53_7 CR53_N 1.51071E-03 450.00
CR54_7 CR54_N 3.76040E-04 450.00
FE54_7 FE54_N 3.41037E-03 450.00
FE56_7 FE56_N 5.35351E-02 450.00
FE57_7 FE57_N 1.23633E-03 450.00
FE58_7 FE58_N 1.64532E-04 450.00
MO1007 MO100N 1.22044E-04 450.00
MO92_7 MO92_N 1.88080E-04 450.00
MO94_7 MO94_N 1.17230E-04 450.00
MO95_7 MO95_N 2.01769E-04 450.00
MO96_7 MO96_N 2.11398E-04 450.00
MO97_7 MO97_N 1.21032E-04 450.00
MO98_7 MO98_N 3.05815E-04 450.00
NI58_7 NI58_N 7.61491E-03 450.00
NI60_7 NI60_N 2.93327E-03 450.00
NI61_7 NI61_N 1.27504E-04 450.00
NI62_7 NI62_N 4.06546E-04 450.00
NI64_7 NI64_N 1.03540E-04 450.00
t_composition(:, 4)= BE9__7 BE9__N 5.39439E-02 450.00
O16__7 O16__N 5.39439E-02 450.00
CR50_7 CR50_N 1.20548E-04 450.00
CR52_7 CR52_N 2.32460E-03 450.00
CR53_7 CR53_N 2.63605E-04 450.00
CR54_7 CR54_N 6.56154E-05 450.00
FE54_7 FE54_N 5.95077E-04 450.00
FE56_7 FE56_N 9.34136E-03 450.00
FE57_7 FE57_N 2.15727E-04 450.00
FE58_7 FE58_N 2.87093E-05 450.00
MO1007 MO100N 2.12956E-05 450.00
MO92_7 MO92_N 3.28181E-05 450.00
MO94_7 MO94_N 2.04554E-05 450.00
MO95_7 MO95_N 3.52068E-05 450.00
MO96_7 MO96_N 3.68870E-05 450.00
MO97_7 MO97_N 2.11189E-05 450.00
MO98_7 MO98_N 5.33619E-05 450.00
NI58_7 NI58_N 1.32873E-03 450.00
NI60_7 NI60_N 5.11828E-04 450.00
NI61_7 NI61_N 2.22483E-05 450.00
NI62_7 NI62_N 7.09384E-05 450.00
NI64_7 NI64_N 1.80668E-05 450.00
t_composition(:, 5)= NA23_7 NA23_N 2.39160E-02 450.00
t_composition(:, 6)= CR50_7 CR50_N 8.17351E-04 450.00
CR52_7 CR52_N 1.57623E-02 450.00
CR53_7 CR53_N 1.78728E-03 450.00
CR54_7 CR54_N 4.44885E-04 450.00
FE54_7 FE54_N 3.48075E-03 450.00
FE56_7 FE56_N 5.46400E-02 450.00
FE57_7 FE57_N 1.26184E-03 450.00
FE58_7 FE58_N 1.67927E-04 450.00
NI58_7 NI58_N 6.80694E-03 450.00
NI60_7 NI60_N 2.62205E-03 450.00
NI61_7 NI61_N 1.13973E-04 450.00
NI62_7 NI62_N 3.63413E-04 450.00
NI64_7 NI64_N 9.25497E-05 450.00
t_composition(:, 7)= U235_7 U235_N 4.00448E-05 450.00
U238_7 U238_N 1.81622E-02 450.00
O16__7 O16__N 3.64046E-02 450.00
CR50_7 CR50_N 1.09257E-04 450.00
CR52_7 CR52_N 2.10686E-03 450.00
CR53_7 CR53_N 2.38914E-04 450.00
CR54_7 CR54_N 5.94694E-05 450.00
FE54_7 FE54_N 5.39338E-04 450.00
FE56_7 FE56_N 8.46638E-03 450.00
FE57_7 FE57_N 1.95521E-04 450.00
FE58_7 FE58_N 2.60202E-05 450.00
MO1007 MO100N 1.93009E-05 450.00
MO92_7 MO92_N 2.97441E-05 450.00
MO94_7 MO94_N 1.85394E-05 450.00
MO95_7 MO95_N 3.19091E-05 450.00
MO96_7 MO96_N 3.34319E-05 450.00
MO97_7 MO97_N 1.91407E-05 450.00
MO98_7 MO98_N 4.83636E-05 450.00
NI58_7 NI58_N 1.20427E-03 450.00
NI60_7 NI60_N 4.63886E-04 450.00
NI61_7 NI61_N 2.01643E-05 450.00
NI62_7 NI62_N 6.42938E-05 450.00
NI64_7 NI64_N 1.63745E-05 450.00
t_composition(:, 8)= CR50_7 CR50_N 8.17351E-04 450.00
CR52_7 CR52_N 1.57623E-02 450.00
CR53_7 CR53_N 1.78728E-03 450.00
CR54_7 CR54_N 4.44885E-04 450.00
FE54_7 FE54_N 3.48075E-03 450.00
FE56_7 FE56_N 5.46400E-02 450.00
FE57_7 FE57_N 1.26184E-03 450.00
FE58_7 FE58_N 1.67927E-04 450.00
NI58_7 NI58_N 6.80694E-03 450.00
NI60_7 NI60_N 2.62205E-03 450.00
NI61_7 NI61_N 1.13973E-04 450.00
NI62_7 NI62_N 3.63413E-04 450.00
NI64_7 NI64_N 9.25497E-05 450.00
t_composition(:, 9)= NA23_7 NA23_N 2.39160E-02 450.00
t_composition(:, 10)= CR50_7 CR50_N 8.17351E-04 450.00
CR52_7 CR52_N 1.57623E-02 450.00
CR53_7 CR53_N 1.78728E-03 450.00
CR54_7 CR54_N 4.44885E-04 450.00
FE54_7 FE54_N 3.48075E-03 450.00
FE56_7 FE56_N 5.46400E-02 450.00
FE57_7 FE57_N 1.26184E-03 450.00
FE58_7 FE58_N 1.67927E-04 450.00
NI58_7 NI58_N 6.80694E-03 450.00
NI60_7 NI60_N 2.62205E-03 450.00
NI61_7 NI61_N 1.13973E-04 450.00
NI62_7 NI62_N 3.63413E-04 450.00
NI64_7 NI64_N 9.25497E-05 450.00
t_composition(:, 11)= NA23_7 NA23_N 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 1 1
1 3 1 3 1
1
r_location = 0.80133 1.13331 1.23518 1.66350 1.78141
1.85000 3.32428 3.41451 4.05154 4.21200
4.22537
i_composition = 1 2 3 4 5
6 7 8 9 10
11
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG14.merged i=REG_01 n=REG_14
mv ISOTXS.REG14.merged ISOTXS.REG14
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 11
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Fuel_St (O)
! ============================================================
!
t_composition(:, 1)= CR50_7 CR50_O 8.17447E-04 450.00
CR52_7 CR52_O 1.57642E-02 450.00
CR53_7 CR53_O 1.78749E-03 450.00
CR54_7 CR54_O 4.44937E-04 450.00
FE54_7 FE54_O 3.48116E-03 450.00
FE56_7 FE56_O 5.46464E-02 450.00
FE57_7 FE57_O 1.26199E-03 450.00
FE58_7 FE58_O 1.67947E-04 450.00
NI58_7 NI58_O 6.80774E-03 450.00
NI60_7 NI60_O 2.62236E-03 450.00
NI61_7 NI61_O 1.13987E-04 450.00
NI62_7 NI62_O 3.63455E-04 450.00
NI64_7 NI64_O 9.25606E-05 450.00
t_composition(:, 2)= B10__7 B10__O 1.32047E-02 450.00
B11__7 B11__O 5.31509E-02 450.00
C____7 C12__O 1.65886E-02 450.00
t_composition(:, 3)= CR50_7 CR50_O 6.90859E-04 450.00
CR52_7 CR52_O 1.33222E-02 450.00
CR53_7 CR53_O 1.51071E-03 450.00
CR54_7 CR54_O 3.76040E-04 450.00
FE54_7 FE54_O 3.41037E-03 450.00
FE56_7 FE56_O 5.35351E-02 450.00
FE57_7 FE57_O 1.23633E-03 450.00
FE58_7 FE58_O 1.64532E-04 450.00
MO1007 MO100O 1.22044E-04 450.00
MO92_7 MO92_O 1.88080E-04 450.00
MO94_7 MO94_O 1.17230E-04 450.00
MO95_7 MO95_O 2.01769E-04 450.00
MO96_7 MO96_O 2.11398E-04 450.00
MO97_7 MO97_O 1.21032E-04 450.00
MO98_7 MO98_O 3.05815E-04 450.00
NI58_7 NI58_O 7.61491E-03 450.00
NI60_7 NI60_O 2.93327E-03 450.00
NI61_7 NI61_O 1.27504E-04 450.00
NI62_7 NI62_O 4.06546E-04 450.00
NI64_7 NI64_O 1.03540E-04 450.00
t_composition(:, 4)= BE9__7 BE9__O 5.39439E-02 450.00
O16__7 O16__O 5.39439E-02 450.00
CR50_7 CR50_O 1.20548E-04 450.00
CR52_7 CR52_O 2.32460E-03 450.00
CR53_7 CR53_O 2.63605E-04 450.00
CR54_7 CR54_O 6.56154E-05 450.00
FE54_7 FE54_O 5.95077E-04 450.00
FE56_7 FE56_O 9.34136E-03 450.00
FE57_7 FE57_O 2.15727E-04 450.00
FE58_7 FE58_O 2.87093E-05 450.00
MO1007 MO100O 2.12956E-05 450.00
MO92_7 MO92_O 3.28181E-05 450.00
MO94_7 MO94_O 2.04554E-05 450.00
MO95_7 MO95_O 3.52068E-05 450.00
MO96_7 MO96_O 3.68870E-05 450.00
MO97_7 MO97_O 2.11189E-05 450.00
MO98_7 MO98_O 5.33619E-05 450.00
NI58_7 NI58_O 1.32873E-03 450.00
NI60_7 NI60_O 5.11828E-04 450.00
NI61_7 NI61_O 2.22483E-05 450.00
NI62_7 NI62_O 7.09384E-05 450.00
NI64_7 NI64_O 1.80668E-05 450.00
t_composition(:, 5)= NA23_7 NA23_O 2.39160E-02 450.00
t_composition(:, 6)= CR50_7 CR50_O 8.17351E-04 450.00
CR52_7 CR52_O 1.57623E-02 450.00
CR53_7 CR53_O 1.78728E-03 450.00
CR54_7 CR54_O 4.44885E-04 450.00
FE54_7 FE54_O 3.48075E-03 450.00
FE56_7 FE56_O 5.46400E-02 450.00
FE57_7 FE57_O 1.26184E-03 450.00
FE58_7 FE58_O 1.67927E-04 450.00
NI58_7 NI58_O 6.80694E-03 450.00
NI60_7 NI60_O 2.62205E-03 450.00
NI61_7 NI61_O 1.13973E-04 450.00
NI62_7 NI62_O 3.63413E-04 450.00
NI64_7 NI64_O 9.25497E-05 450.00
t_composition(:, 7)= PU2397 PU239O 3.32051E-03 450.00
PU2407 PU240O 2.98177E-04 450.00
U235_7 U235_O 3.12105E-05 450.00
U238_7 U238_O 1.41554E-02 450.00
O16__7 O16__O 3.55742E-02 450.00
CR50_7 CR50_O 1.09257E-04 450.00
CR52_7 CR52_O 2.10686E-03 450.00
CR53_7 CR53_O 2.38914E-04 450.00
CR54_7 CR54_O 5.94694E-05 450.00
FE54_7 FE54_O 5.39338E-04 450.00
FE56_7 FE56_O 8.46638E-03 450.00
FE57_7 FE57_O 1.95521E-04 450.00
FE58_7 FE58_O 2.60202E-05 450.00
MO1007 MO100O 1.93009E-05 450.00
MO92_7 MO92_O 2.97441E-05 450.00
MO94_7 MO94_O 1.85394E-05 450.00
MO95_7 MO95_O 3.19091E-05 450.00
MO96_7 MO96_O 3.34319E-05 450.00
MO97_7 MO97_O 1.91407E-05 450.00
MO98_7 MO98_O 4.83636E-05 450.00
NI58_7 NI58_O 1.20427E-03 450.00
NI60_7 NI60_O 4.63886E-04 450.00
NI61_7 NI61_O 2.01643E-05 450.00
NI62_7 NI62_O 6.42938E-05 450.00
NI64_7 NI64_O 1.63745E-05 450.00
t_composition(:, 8)= CR50_7 CR50_O 8.17351E-04 450.00
CR52_7 CR52_O 1.57623E-02 450.00
CR53_7 CR53_O 1.78728E-03 450.00
CR54_7 CR54_O 4.44885E-04 450.00
FE54_7 FE54_O 3.48075E-03 450.00
FE56_7 FE56_O 5.46400E-02 450.00
FE57_7 FE57_O 1.26184E-03 450.00
FE58_7 FE58_O 1.67927E-04 450.00
NI58_7 NI58_O 6.80694E-03 450.00
NI60_7 NI60_O 2.62205E-03 450.00
NI61_7 NI61_O 1.13973E-04 450.00
NI62_7 NI62_O 3.63413E-04 450.00
NI64_7 NI64_O 9.25497E-05 450.00
t_composition(:, 9)= NA23_7 NA23_O 2.39160E-02 450.00
t_composition(:, 10)= CR50_7 CR50_O 8.17351E-04 450.00
CR52_7 CR52_O 1.57623E-02 450.00
CR53_7 CR53_O 1.78728E-03 450.00
CR54_7 CR54_O 4.44885E-04 450.00
FE54_7 FE54_O 3.48075E-03 450.00
FE56_7 FE56_O 5.46400E-02 450.00
FE57_7 FE57_O 1.26184E-03 450.00
FE58_7 FE58_O 1.67927E-04 450.00
NI58_7 NI58_O 6.80694E-03 450.00
NI60_7 NI60_O 2.62205E-03 450.00
NI61_7 NI61_O 1.13973E-04 450.00
NI62_7 NI62_O 3.63413E-04 450.00
NI64_7 NI64_O 9.25497E-05 450.00
t_composition(:, 11)= NA23_7 NA23_O 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 1 1
1 3 1 3 1
1
r_location = 0.80133 1.13331 1.23518 1.66350 1.78141
1.85000 3.32428 3.41451 4.05154 4.21200
4.22537
i_composition = 1 2 3 4 5
6 7 8 9 10
11
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG15.merged i=REG_01 n=REG_15
mv ISOTXS.REG15.merged ISOTXS.REG15
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "mixture"
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Spring_Void (P)
! ============================================================
!
t_composition(:, 1)= O16__7 O16__P 3.75126E-03 450.00
NA23_7 NA23_P 7.06638E-03 450.00
CR50_7 CR50_P 1.93740E-04 450.00
CR52_7 CR52_P 3.73613E-03 450.00
CR53_7 CR53_P 4.23649E-04 450.00
CR54_7 CR54_P 1.05453E-04 450.00
FE54_7 FE54_P 8.68710E-04 450.00
FE56_7 FE56_P 1.36368E-02 450.00
FE57_7 FE57_P 3.14925E-04 450.00
FE58_7 FE58_P 4.19105E-05 450.00
MO1007 MO100P 1.13768E-05 450.00
MO92_7 MO92_P 1.75326E-05 450.00
MO94_7 MO94_P 1.09280E-05 450.00
MO95_7 MO95_P 1.88087E-05 450.00
MO96_7 MO96_P 1.97063E-05 450.00
MO97_7 MO97_P 1.12825E-05 450.00
MO98_7 MO98_P 2.85077E-05 450.00
NI58_7 NI58_P 1.78699E-03 450.00
NI60_7 NI60_P 6.88354E-04 450.00
NI61_7 NI61_P 2.99211E-05 450.00
NI62_7 NI62_P 9.54048E-05 450.00
NI64_7 NI64_P 2.42971E-05 450.00
BE9__7 BE9__P 3.75126E-03 450.00
B10__7 B10__P 4.75018E-04 450.00
B11__7 B11__P 1.91202E-03 450.00
C____7 C12__P 5.96748E-04 450.00
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG16.merged i=REG_01 n=REG_16
mv ISOTXS.REG16.merged ISOTXS.REG16
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 9
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! GA_6_2_Fuel_St (Q)
! ============================================================
!
t_composition(:, 1)= BE9__7 BE9__Q 5.39439E-02 450.00
O16__7 O16__Q 5.39439E-02 450.00
CR50_7 CR50_Q 1.20548E-04 450.00
CR52_7 CR52_Q 2.32460E-03 450.00
CR53_7 CR53_Q 2.63605E-04 450.00
CR54_7 CR54_Q 6.56154E-05 450.00
FE54_7 FE54_Q 5.95077E-04 450.00
FE56_7 FE56_Q 9.34136E-03 450.00
FE57_7 FE57_Q 2.15727E-04 450.00
FE58_7 FE58_Q 2.87093E-05 450.00
MO1007 MO100Q 2.12956E-05 450.00
MO92_7 MO92_Q 3.28181E-05 450.00
MO94_7 MO94_Q 2.04554E-05 450.00
MO95_7 MO95_Q 3.52068E-05 450.00
MO96_7 MO96_Q 3.68870E-05 450.00
MO97_7 MO97_Q 2.11189E-05 450.00
MO98_7 MO98_Q 5.33619E-05 450.00
NI58_7 NI58_Q 1.32873E-03 450.00
NI60_7 NI60_Q 5.11828E-04 450.00
NI61_7 NI61_Q 2.22483E-05 450.00
NI62_7 NI62_Q 7.09384E-05 450.00
NI64_7 NI64_Q 1.80668E-05 450.00
t_composition(:, 2)= NA23_7 NA23_Q 2.39160E-02 450.00
t_composition(:, 3)= CR50_7 CR50_Q 8.17351E-04 450.00
CR52_7 CR52_Q 1.57623E-02 450.00
CR53_7 CR53_Q 1.78728E-03 450.00
CR54_7 CR54_Q 4.44885E-04 450.00
FE54_7 FE54_Q 3.48075E-03 450.00
FE56_7 FE56_Q 5.46400E-02 450.00
FE57_7 FE57_Q 1.26184E-03 450.00
FE58_7 FE58_Q 1.67927E-04 450.00
NI58_7 NI58_Q 6.80694E-03 450.00
NI60_7 NI60_Q 2.62205E-03 450.00
NI61_7 NI61_Q 1.13973E-04 450.00
NI62_7 NI62_Q 3.63413E-04 450.00
NI64_7 NI64_Q 9.25497E-05 450.00
t_composition(:, 4)= PU2397 PU239Q 3.32051E-03 450.00
PU2407 PU240Q 2.98177E-04 450.00
U235_7 U235_Q 3.12105E-05 450.00
U238_7 U238_Q 1.41554E-02 450.00
O16__7 O16__Q 3.55742E-02 450.00
CR50_7 CR50_Q 1.09257E-04 450.00
CR52_7 CR52_Q 2.10686E-03 450.00
CR53_7 CR53_Q 2.38914E-04 450.00
CR54_7 CR54_Q 5.94694E-05 450.00
FE54_7 FE54_Q 5.39338E-04 450.00
FE56_7 FE56_Q 8.46638E-03 450.00
FE57_7 FE57_Q 1.95521E-04 450.00
FE58_7 FE58_Q 2.60202E-05 450.00
MO1007 MO100Q 1.93009E-05 450.00
MO92_7 MO92_Q 2.97441E-05 450.00
MO94_7 MO94_Q 1.85394E-05 450.00
MO95_7 MO95_Q 3.19091E-05 450.00
MO96_7 MO96_Q 3.34319E-05 450.00
MO97_7 MO97_Q 1.91407E-05 450.00
MO98_7 MO98_Q 4.83636E-05 450.00
NI58_7 NI58_Q 1.20427E-03 450.00
NI60_7 NI60_Q 4.63886E-04 450.00
NI61_7 NI61_Q 2.01643E-05 450.00
NI62_7 NI62_Q 6.42938E-05 450.00
NI64_7 NI64_Q 1.63745E-05 450.00
t_composition(:, 5)= PU2397 PU239Q 4.43913E-03 450.00
PU2407 PU240Q 3.98634E-04 450.00
U235_7 U235_Q 2.85195E-05 450.00
U238_7 U238_Q 1.29349E-02 450.00
O16__7 O16__Q 3.55539E-02 450.00
CR50_7 CR50_Q 1.09257E-04 450.00
CR52_7 CR52_Q 2.10686E-03 450.00
CR53_7 CR53_Q 2.38914E-04 450.00
CR54_7 CR54_Q 5.94694E-05 450.00
FE54_7 FE54_Q 5.39338E-04 450.00
FE56_7 FE56_Q 8.46638E-03 450.00
FE57_7 FE57_Q 1.95521E-04 450.00
FE58_7 FE58_Q 2.60202E-05 450.00
MO1007 MO100Q 1.93009E-05 450.00
MO92_7 MO92_Q 2.97441E-05 450.00
MO94_7 MO94_Q 1.85394E-05 450.00
MO95_7 MO95_Q 3.19091E-05 450.00
MO96_7 MO96_Q 3.34319E-05 450.00
MO97_7 MO97_Q 1.91407E-05 450.00
MO98_7 MO98_Q 4.83636E-05 450.00
NI58_7 NI58_Q 1.20427E-03 450.00
NI60_7 NI60_Q 4.63886E-04 450.00
NI61_7 NI61_Q 2.01643E-05 450.00
NI62_7 NI62_Q 6.42938E-05 450.00
NI64_7 NI64_Q 1.63745E-05 450.00
t_composition(:, 6)= CR50_7 CR50_Q 8.17351E-04 450.00
CR52_7 CR52_Q 1.57623E-02 450.00
CR53_7 CR53_Q 1.78728E-03 450.00
CR54_7 CR54_Q 4.44885E-04 450.00
FE54_7 FE54_Q 3.48075E-03 450.00
FE56_7 FE56_Q 5.46400E-02 450.00
FE57_7 FE57_Q 1.26184E-03 450.00
FE58_7 FE58_Q 1.67927E-04 450.00
NI58_7 NI58_Q 6.80694E-03 450.00
NI60_7 NI60_Q 2.62205E-03 450.00
NI61_7 NI61_Q 1.13973E-04 450.00
NI62_7 NI62_Q 3.63413E-04 450.00
NI64_7 NI64_Q 9.25497E-05 450.00
t_composition(:, 7)= NA23_7 NA23_Q 2.39160E-02 450.00
t_composition(:, 8)= CR50_7 CR50_Q 8.17351E-04 450.00
CR52_7 CR52_Q 1.57623E-02 450.00
CR53_7 CR53_Q 1.78728E-03 450.00
CR54_7 CR54_Q 4.44885E-04 450.00
FE54_7 FE54_Q 3.48075E-03 450.00
FE56_7 FE56_Q 5.46400E-02 450.00
FE57_7 FE57_Q 1.26184E-03 450.00
FE58_7 FE58_Q 1.67927E-04 450.00
NI58_7 NI58_Q 6.80694E-03 450.00
NI60_7 NI60_Q 2.62205E-03 450.00
NI61_7 NI61_Q 1.13973E-04 450.00
NI62_7 NI62_Q 3.63413E-04 450.00
NI64_7 NI64_Q 9.25497E-05 450.00
t_composition(:, 9)= NA23_7 NA23_Q 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 3 2
1 3 1 1
r_location = 1.11426 1.28366 1.37726 2.82834 3.32428
3.41451 4.05154 4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8 9
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG17.merged i=REG_01 n=REG_17
mv ISOTXS.REG17.merged ISOTXS.REG17
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = "ANL1041"
c_geometry_type = "cylinder"
i_number_region = 12
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! GA_AFA_6_1_1_Fuel_St (R)
! ============================================================
!
t_composition(:, 1)= CR50_7 CR50_R 8.17447E-04 450.00
CR52_7 CR52_R 1.57642E-02 450.00
CR53_7 CR53_R 1.78749E-03 450.00
CR54_7 CR54_R 4.44937E-04 450.00
FE54_7 FE54_R 3.48116E-03 450.00
FE56_7 FE56_R 5.46464E-02 450.00
FE57_7 FE57_R 1.26199E-03 450.00
FE58_7 FE58_R 1.67947E-04 450.00
NI58_7 NI58_R 6.80774E-03 450.00
NI60_7 NI60_R 2.62236E-03 450.00
NI61_7 NI61_R 1.13987E-04 450.00
NI62_7 NI62_R 3.63455E-04 450.00
NI64_7 NI64_R 9.25606E-05 450.00
t_composition(:, 2)= B10__7 B10__R 1.32047E-02 450.00
B11__7 B11__R 5.31509E-02 450.00
C____7 C12__R 1.65886E-02 450.00
t_composition(:, 3)= CR50_7 CR50_R 6.90859E-04 450.00
CR52_7 CR52_R 1.33222E-02 450.00
CR53_7 CR53_R 1.51071E-03 450.00
CR54_7 CR54_R 3.76040E-04 450.00
FE54_7 FE54_R 3.41037E-03 450.00
FE56_7 FE56_R 5.35351E-02 450.00
FE57_7 FE57_R 1.23633E-03 450.00
FE58_7 FE58_R 1.64532E-04 450.00
MO1007 MO100R 1.22044E-04 450.00
MO92_7 MO92_R 1.88080E-04 450.00
MO94_7 MO94_R 1.17230E-04 450.00
MO95_7 MO95_R 2.01769E-04 450.00
MO96_7 MO96_R 2.11398E-04 450.00
MO97_7 MO97_R 1.21032E-04 450.00
MO98_7 MO98_R 3.05815E-04 450.00
NI58_7 NI58_R 7.61491E-03 450.00
NI60_7 NI60_R 2.93327E-03 450.00
NI61_7 NI61_R 1.27504E-04 450.00
NI62_7 NI62_R 4.06546E-04 450.00
NI64_7 NI64_R 1.03540E-04 450.00
t_composition(:, 4)= BE9__7 BE9__R 5.39439E-02 450.00
O16__7 O16__R 5.39439E-02 450.00
CR50_7 CR50_R 1.20548E-04 450.00
CR52_7 CR52_R 2.32460E-03 450.00
CR53_7 CR53_R 2.63605E-04 450.00
CR54_7 CR54_R 6.56154E-05 450.00
FE54_7 FE54_R 5.95077E-04 450.00
FE56_7 FE56_R 9.34136E-03 450.00
FE57_7 FE57_R 2.15727E-04 450.00
FE58_7 FE58_R 2.87093E-05 450.00
MO1007 MO100R 2.12956E-05 450.00
MO92_7 MO92_R 3.28181E-05 450.00
MO94_7 MO94_R 2.04554E-05 450.00
MO95_7 MO95_R 3.52068E-05 450.00
MO96_7 MO96_R 3.68870E-05 450.00
MO97_7 MO97_R 2.11189E-05 450.00
MO98_7 MO98_R 5.33619E-05 450.00
NI58_7 NI58_R 1.32873E-03 450.00
NI60_7 NI60_R 5.11828E-04 450.00
NI61_7 NI61_R 2.22483E-05 450.00
NI62_7 NI62_R 7.09384E-05 450.00
NI64_7 NI64_R 1.80668E-05 450.00
t_composition(:, 5)= NA23_7 NA23_R 2.39160E-02 450.00
t_composition(:, 6)= CR50_7 CR50_R 8.17351E-04 450.00
CR52_7 CR52_R 1.57623E-02 450.00
CR53_7 CR53_R 1.78728E-03 450.00
CR54_7 CR54_R 4.44885E-04 450.00
FE54_7 FE54_R 3.48075E-03 450.00
FE56_7 FE56_R 5.46400E-02 450.00
FE57_7 FE57_R 1.26184E-03 450.00
FE58_7 FE58_R 1.67927E-04 450.00
NI58_7 NI58_R 6.80694E-03 450.00
NI60_7 NI60_R 2.62205E-03 450.00
NI61_7 NI61_R 1.13973E-04 450.00
NI62_7 NI62_R 3.63413E-04 450.00
NI64_7 NI64_R 9.25497E-05 450.00
t_composition(:, 7)= PU2397 PU239R 3.32051E-03 450.00
PU2407 PU240R 2.98177E-04 450.00
U235_7 U235_R 3.12105E-05 450.00
U238_7 U238_R 1.41554E-02 450.00
O16__7 O16__R 3.55742E-02 450.00
CR50_7 CR50_R 1.09257E-04 450.00
CR52_7 CR52_R 2.10686E-03 450.00
CR53_7 CR53_R 2.38914E-04 450.00
CR54_7 CR54_R 5.94694E-05 450.00
FE54_7 FE54_R 5.39338E-04 450.00
FE56_7 FE56_R 8.46638E-03 450.00
FE57_7 FE57_R 1.95521E-04 450.00
FE58_7 FE58_R 2.60202E-05 450.00
MO1007 MO100R 1.93009E-05 450.00
MO92_7 MO92_R 2.97441E-05 450.00
MO94_7 MO94_R 1.85394E-05 450.00
MO95_7 MO95_R 3.19091E-05 450.00
MO96_7 MO96_R 3.34319E-05 450.00
MO97_7 MO97_R 1.91407E-05 450.00
MO98_7 MO98_R 4.83636E-05 450.00
NI58_7 NI58_R 1.20427E-03 450.00
NI60_7 NI60_R 4.63886E-04 450.00
NI61_7 NI61_R 2.01643E-05 450.00
NI62_7 NI62_R 6.42938E-05 450.00
NI64_7 NI64_R 1.63745E-05 450.00
t_composition(:, 8)= PU2397 PU239R 4.43913E-03 450.00
PU2407 PU240R 3.98634E-04 450.00
U235_7 U235_R 2.85195E-05 450.00
U238_7 U238_R 1.29349E-02 450.00
O16__7 O16__R 3.55539E-02 450.00
CR50_7 CR50_R 1.09257E-04 450.00
CR52_7 CR52_R 2.10686E-03 450.00
CR53_7 CR53_R 2.38914E-04 450.00
CR54_7 CR54_R 5.94694E-05 450.00
FE54_7 FE54_R 5.39338E-04 450.00
FE56_7 FE56_R 8.46638E-03 450.00
FE57_7 FE57_R 1.95521E-04 450.00
FE58_7 FE58_R 2.60202E-05 450.00
MO1007 MO100R 1.93009E-05 450.00
MO92_7 MO92_R 2.97441E-05 450.00
MO94_7 MO94_R 1.85394E-05 450.00
MO95_7 MO95_R 3.19091E-05 450.00
MO96_7 MO96_R 3.34319E-05 450.00
MO97_7 MO97_R 1.91407E-05 450.00
MO98_7 MO98_R 4.83636E-05 450.00
NI58_7 NI58_R 1.20427E-03 450.00
NI60_7 NI60_R 4.63886E-04 450.00
NI61_7 NI61_R 2.01643E-05 450.00
NI62_7 NI62_R 6.42938E-05 450.00
NI64_7 NI64_R 1.63745E-05 450.00
t_composition(:, 9)= CR50_7 CR50_R 8.17351E-04 450.00
CR52_7 CR52_R 1.57623E-02 450.00
CR53_7 CR53_R 1.78728E-03 450.00
CR54_7 CR54_R 4.44885E-04 450.00
FE54_7 FE54_R 3.48075E-03 450.00
FE56_7 FE56_R 5.46400E-02 450.00
FE57_7 FE57_R 1.26184E-03 450.00
FE58_7 FE58_R 1.67927E-04 450.00
NI58_7 NI58_R 6.80694E-03 450.00
NI60_7 NI60_R 2.62205E-03 450.00
NI61_7 NI61_R 1.13973E-04 450.00
NI62_7 NI62_R 3.63413E-04 450.00
NI64_7 NI64_R 9.25497E-05 450.00
t_composition(:, 10)= NA23_7 NA23_R 2.39160E-02 450.00
t_composition(:, 11)= CR50_7 CR50_R 8.17351E-04 450.00
CR52_7 CR52_R 1.57623E-02 450.00
CR53_7 CR53_R 1.78728E-03 450.00
CR54_7 CR54_R 4.44885E-04 450.00
FE54_7 FE54_R 3.48075E-03 450.00
FE56_7 FE56_R 5.46400E-02 450.00
FE57_7 FE57_R 1.26184E-03 450.00
FE58_7 FE58_R 1.67927E-04 450.00
NI58_7 NI58_R 6.80694E-03 450.00
NI60_7 NI60_R 2.62205E-03 450.00
NI61_7 NI61_R 1.13973E-04 450.00
NI62_7 NI62_R 3.63413E-04 450.00
NI64_7 NI64_R 9.25497E-05 450.00
t_composition(:, 12)= NA23_7 NA23_R 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 1 1
1 3 1 1 3
1 1
r_location = 0.80133 1.13331 1.23518 1.66350 1.78141
1.85000 3.08628 3.32428 3.41451 4.05154
4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8 9 10
11 12
/
\$output
l_isotxs_macroxs = T
/
EOF
$exe_mcc3
$exe_isotxs_modify in=ISOTXS.merged out=ISOTXS.REG18.merged i=REG_01 n=REG_18
mv ISOTXS.REG18.merged ISOTXS.REG18
!
! ============================================================
!
cat > input << EOF
\$control
c_isotxs_conversion = bin2asc
/
\$output
c_isotxs_file = ISOTXS.REG01
ISOTXS.REG02
ISOTXS.REG03
ISOTXS.REG04
ISOTXS.REG05
ISOTXS.REG06
ISOTXS.REG07
ISOTXS.REG08
ISOTXS.REG09
ISOTXS.REG10
ISOTXS.REG11
ISOTXS.REG12
ISOTXS.REG13
ISOTXS.REG14
ISOTXS.REG15
ISOTXS.REG16
ISOTXS.REG17
ISOTXS.REG18
/
EOF
$exe_mcc3
mv ISOTXS.merged $0.ISOTXS.1041g.bin
mv ISOTXS.merged.ascii $0.ISOTXS.1041g.ascii
rm ISOTXS.* input* output.* pw* out.*
(sfr/sefor/Cross_Section/Core-I-E_450K_ENDF71_step1.twodant.inp)
################################################################################
## NEAMS Fast Reactor Application Driver ##
## SEFOR TWODANT Model of SEFOR Core I-E FOR MCC3 MODEL ##
## Input File for generating cross sections ##
## Please contact the authors for issues: ##
## - Dr. Donny Hartanto (hartantod.at.ornl.gov) ##
################################################################################
1
ngroup= 1041
niso= 18
mt= 18, nzone= 18,
im= 15, it= 29,
jm= 11, jt= 43,
igeom=7, isn=10, maxlcm=195000000, maxscm=19200000,
t
xmesh= 0.0000 4.2254 40.7480 40.9665 42.0419 42.8828
43.0905 43.2972 43.5029 43.7076 43.9113 44.1142
53.4860 58.2630 73.5530 87.0340 ,
ymesh= 0.0000 30.7450 41.5320 42.4845 94.9136 95.8661
99.1481 100.1006 133.6233 134.5758 145.3628 165.6018 ,
xints= 1 9 1 1 1 1 1 1 1 1 1 2 1 4 3 ,
yints= 7 3 1 13 1 1 1 7 1 3 5 ,
zones= 1 1 1 1 1 1 1 1 1 1 1 3 4 5 7 ;
2 9 13 13 13 13 9 9 13 13 13 3 4 6 7 ;
2 10 14 14 14 14 10 10 14 14 14 3 4 6 7 ;
2 11 15 15 15 15 17 17 18 18 18 3 4 6 7 ;
2 10 14 14 14 14 10 10 14 14 14 3 4 6 7 ;
2 12 16 16 16 16 12 12 16 16 16 3 4 6 7 ;
2 10 14 14 14 14 10 10 14 14 14 3 4 6 7 ;
2 11 15 15 15 15 17 17 18 18 18 3 4 6 7 ;
2 10 14 14 14 14 10 10 14 14 14 3 4 6 7 ;
2 9 13 13 13 13 9 9 13 13 13 3 4 6 7 ;
2 8 8 8 8 8 8 8 8 8 8 3 4 5 7 ;
t
lib=isotxs,balxs=0,
t
matls=
REG_01 REG_01 0.10000E+01;
REG_02 REG_02 0.10000E+01;
REG_03 REG_03 0.10000E+01;
REG_04 REG_04 0.10000E+01;
REG_05 REG_05 0.10000E+01;
REG_06 REG_06 0.10000E+01;
REG_07 REG_07 0.10000E+01;
REG_08 REG_08 0.10000E+01;
REG_09 REG_09 0.10000E+01;
REG_10 REG_10 0.10000E+01;
REG_11 REG_11 0.10000E+01;
REG_12 REG_12 0.10000E+01;
REG_13 REG_13 0.10000E+01;
REG_14 REG_14 0.10000E+01;
REG_15 REG_15 0.10000E+01;
REG_16 REG_16 0.10000E+01;
REG_17 REG_17 0.10000E+01;
REG_18 REG_18 0.10000E+01;
assign=
REG_01 REG_01 1.0;
REG_02 REG_02 1.0;
REG_03 REG_03 1.0;
REG_04 REG_04 1.0;
REG_05 REG_05 1.0;
REG_06 REG_06 1.0;
REG_07 REG_07 1.0;
REG_08 REG_08 1.0;
REG_09 REG_09 1.0;
REG_10 REG_10 1.0;
REG_11 REG_11 1.0;
REG_12 REG_12 1.0;
REG_13 REG_13 1.0;
REG_14 REG_14 1.0;
REG_15 REG_15 1.0;
REG_16 REG_16 1.0;
REG_17 REG_17 1.0;
REG_18 REG_18 1.0;
t
ievt=1,isct=3,ith=0,ibl=1,ibr=0,ibt=0,ibb=0,
epsi=0.0001,iitl=100,iitm=100,oitm=50,epso=0.000001,
fluxp=0,xsectp=0,fissrp=0,sourcp=0,angp=0,geomp=0,
insors=0,raflux=0,rmflux=1,iquad=-2,influx=0,
chi=
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.92288E-05 0.10902E-04 0.12829E-04 0.15053E-04 0.17612E-04
0.20538E-04 0.23871E-04 0.27662E-04 0.31962E-04 0.36826E-04
0.42310E-04 0.48469E-04 0.55376E-04 0.63099E-04 0.71711E-04
0.81283E-04 0.91878E-04 0.10358E-03 0.11659E-03 0.13090E-03
0.14657E-03 0.16353E-03 0.18236E-03 0.20281E-03 0.22513E-03
0.24938E-03 0.27558E-03 0.30406E-03 0.33464E-03 0.36773E-03
0.40317E-03 0.44121E-03 0.48198E-03 0.52537E-03 0.57173E-03
0.62098E-03 0.67313E-03 0.72840E-03 0.78688E-03 0.84834E-03
0.91305E-03 0.98095E-03 0.10521E-02 0.11265E-02 0.12041E-02
0.12847E-02 0.13687E-02 0.14557E-02 0.15457E-02 0.16387E-02
0.17347E-02 0.18334E-02 0.19350E-02 0.20392E-02 0.21460E-02
0.22553E-02 0.23670E-02 0.24808E-02 0.25968E-02 0.27150E-02
0.28350E-02 0.29569E-02 0.30804E-02 0.32057E-02 0.33322E-02
0.34599E-02 0.35890E-02 0.37192E-02 0.38504E-02 0.39821E-02
0.41146E-02 0.42477E-02 0.43811E-02 0.45145E-02 0.46481E-02
0.47818E-02 0.49149E-02 0.50477E-02 0.51801E-02 0.53113E-02
0.54419E-02 0.55713E-02 0.56992E-02 0.58258E-02 0.59506E-02
0.60736E-02 0.61945E-02 0.63133E-02 0.64295E-02 0.65434E-02
0.66542E-02 0.67626E-02 0.68672E-02 0.69693E-02 0.70671E-02
0.71623E-02 0.72527E-02 0.73407E-02 0.74231E-02 0.75030E-02
0.75771E-02 0.76479E-02 0.77143E-02 0.77753E-02 0.78338E-02
0.78849E-02 0.79343E-02 0.79767E-02 0.80147E-02 0.80504E-02
0.80774E-02 0.81030E-02 0.81235E-02 0.81367E-02 0.81497E-02
0.81549E-02 0.81552E-02 0.81555E-02 0.81470E-02 0.81346E-02
0.81224E-02 0.81024E-02 0.80776E-02 0.80532E-02 0.80244E-02
0.79878E-02 0.79517E-02 0.79151E-02 0.78695E-02 0.78225E-02
0.77764E-02 0.77274E-02 0.76706E-02 0.76147E-02 0.75597E-02
0.75008E-02 0.74361E-02 0.73726E-02 0.73101E-02 0.72456E-02
0.71745E-02 0.71046E-02 0.70359E-02 0.69679E-02 0.68937E-02
0.68187E-02 0.67449E-02 0.66724E-02 0.65997E-02 0.65217E-02
0.64441E-02 0.63677E-02 0.62926E-02 0.62184E-02 0.61390E-02
0.60589E-02 0.59802E-02 0.59028E-02 0.58267E-02 0.57510E-02
0.56728E-02 0.55944E-02 0.55159E-02 0.54377E-02 0.53596E-02
0.52818E-02 0.52043E-02 0.51271E-02 0.50503E-02 0.49740E-02
0.48982E-02 0.48228E-02 0.47478E-02 0.46733E-02 0.45994E-02
0.45259E-02 0.44529E-02 0.43805E-02 0.43087E-02 0.42374E-02
0.41667E-02 0.40965E-02 0.40270E-02 0.39581E-02 0.38898E-02
0.38222E-02 0.37553E-02 0.36891E-02 0.36236E-02 0.35588E-02
0.34947E-02 0.34313E-02 0.33685E-02 0.33064E-02 0.32448E-02
0.31839E-02 0.31234E-02 0.30636E-02 0.30045E-02 0.29461E-02
0.28884E-02 0.28315E-02 0.27755E-02 0.27202E-02 0.26658E-02
0.26121E-02 0.25591E-02 0.25069E-02 0.24554E-02 0.24046E-02
0.23545E-02 0.23052E-02 0.22566E-02 0.22089E-02 0.21619E-02
0.21158E-02 0.20705E-02 0.20260E-02 0.19823E-02 0.19394E-02
0.18972E-02 0.18559E-02 0.18154E-02 0.17756E-02 0.17366E-02
0.16983E-02 0.16607E-02 0.16239E-02 0.15878E-02 0.15524E-02
0.15177E-02 0.14837E-02 0.14504E-02 0.14177E-02 0.13857E-02
0.13543E-02 0.13237E-02 0.12936E-02 0.12641E-02 0.12353E-02
0.12070E-02 0.11795E-02 0.11524E-02 0.11259E-02 0.11000E-02
0.10746E-02 0.10499E-02 0.10255E-02 0.10018E-02 0.97856E-03
0.95578E-03 0.93361E-03 0.91182E-03 0.89053E-03 0.86978E-03
0.84938E-03 0.82949E-03 0.81009E-03 0.79101E-03 0.77241E-03
0.75430E-03 0.73649E-03 0.71905E-03 0.70217E-03 0.68557E-03
0.66925E-03 0.65346E-03 0.63802E-03 0.62283E-03 0.60796E-03
0.59360E-03 0.57950E-03 0.56563E-03 0.55209E-03 0.53903E-03
0.52618E-03 0.51354E-03 0.50119E-03 0.48929E-03 0.47762E-03
0.46614E-03 0.45485E-03 0.44399E-03 0.43341E-03 0.42301E-03
0.41278E-03 0.40274E-03 0.39313E-03 0.38374E-03 0.37451E-03
0.36542E-03 0.35649E-03 0.34793E-03 0.33963E-03 0.33146E-03
0.32343E-03 0.31553E-03 0.30778E-03 0.30030E-03 0.29302E-03
0.28592E-03 0.27898E-03 0.27221E-03 0.26560E-03 0.25915E-03
0.25285E-03 0.24671E-03 0.24071E-03 0.23486E-03 0.22914E-03
0.22356E-03 0.21812E-03 0.21281E-03 0.20762E-03 0.20256E-03
0.19763E-03 0.19281E-03 0.18810E-03 0.18351E-03 0.17904E-03
0.17466E-03 0.17040E-03 0.16624E-03 0.16218E-03 0.15821E-03
0.15435E-03 0.15057E-03 0.14689E-03 0.14330E-03 0.13979E-03
0.13637E-03 0.13303E-03 0.12978E-03 0.12660E-03 0.12350E-03
0.12047E-03 0.11752E-03 0.11464E-03 0.11183E-03 0.10909E-03
0.10642E-03 0.10381E-03 0.10126E-03 0.98780E-04 0.96356E-04
0.93992E-04 0.91686E-04 0.89437E-04 0.87240E-04 0.85099E-04
0.83011E-04 0.80972E-04 0.78983E-04 0.77045E-04 0.75152E-04
0.73305E-04 0.71506E-04 0.69747E-04 0.68034E-04 0.66363E-04
0.64731E-04 0.63142E-04 0.61587E-04 0.60075E-04 0.58597E-04
0.57156E-04 0.55752E-04 0.54379E-04 0.53043E-04 0.51737E-04
0.50466E-04 0.49223E-04 0.48014E-04 0.46831E-04 0.45680E-04
0.44556E-04 0.43458E-04 0.42391E-04 0.41344E-04 0.40330E-04
0.39334E-04 0.38368E-04 0.37424E-04 0.36500E-04 0.35605E-04
0.34724E-04 0.33872E-04 0.33039E-04 0.32222E-04 0.31432E-04
0.30657E-04 0.29899E-04 0.29167E-04 0.28447E-04 0.27744E-04
0.27065E-04 0.26396E-04 0.25744E-04 0.25114E-04 0.24494E-04
0.23887E-04 0.23302E-04 0.22729E-04 0.22165E-04 0.21620E-04
0.21090E-04 0.20569E-04 0.20059E-04 0.19568E-04 0.19088E-04
0.18615E-04 0.18153E-04 0.17710E-04 0.17275E-04 0.16847E-04
0.16428E-04 0.16027E-04 0.15634E-04 0.15248E-04 0.14868E-04
0.14502E-04 0.14148E-04 0.13801E-04 0.13459E-04 0.13122E-04
0.12801E-04 0.12489E-04 0.12182E-04 0.11880E-04 0.11584E-04
0.11298E-04 0.11024E-04 0.10754E-04 0.10488E-04 0.10227E-04
0.99706E-05 0.97235E-05 0.94837E-05 0.92497E-05 0.90216E-05
0.87990E-05 0.85820E-05 0.83703E-05 0.81638E-05 0.79624E-05
0.77660E-05 0.75744E-05 0.73876E-05 0.72053E-05 0.70275E-05
0.68542E-05 0.66851E-05 0.65201E-05 0.63593E-05 0.62024E-05
0.60494E-05 0.59001E-05 0.57545E-05 0.56125E-05 0.54741E-05
0.53390E-05 0.52073E-05 0.50788E-05 0.49535E-05 0.48313E-05
0.47120E-05 0.45958E-05 0.44824E-05 0.43718E-05 0.42639E-05
0.41587E-05 0.40561E-05 0.39560E-05 0.38583E-05 0.37631E-05
0.36703E-05 0.35797E-05 0.34914E-05 0.34052E-05 0.33212E-05
0.32392E-05 0.31593E-05 0.30813E-05 0.30053E-05 0.29311E-05
0.28588E-05 0.27882E-05 0.27194E-05 0.26523E-05 0.25868E-05
0.25230E-05 0.24608E-05 0.24000E-05 0.23407E-05 0.22830E-05
0.22266E-05 0.21717E-05 0.21181E-05 0.20658E-05 0.20149E-05
0.19651E-05 0.19166E-05 0.18693E-05 0.18232E-05 0.17782E-05
0.17343E-05 0.16915E-05 0.16497E-05 0.16090E-05 0.15693E-05
0.15306E-05 0.14928E-05 0.14560E-05 0.14201E-05 0.13849E-05
0.13509E-05 0.13174E-05 0.12850E-05 0.12532E-05 0.12223E-05
0.11922E-05 0.11627E-05 0.11341E-05 0.11060E-05 0.10787E-05
0.10522E-05 0.10261E-05 0.10009E-05 0.97615E-06 0.95195E-06
0.92858E-06 0.90562E-06 0.88318E-06 0.86151E-06 0.84021E-06
0.81937E-06 0.79928E-06 0.77954E-06 0.76017E-06 0.74151E-06
0.72326E-06 0.70530E-06 0.68788E-06 0.67102E-06 0.65444E-06
0.63815E-06 0.62250E-06 0.60721E-06 0.59217E-06 0.57743E-06
0.56330E-06 0.54946E-06 0.53586E-06 0.52249E-06 0.50969E-06
0.49721E-06 0.48493E-06 0.47285E-06 0.46114E-06 0.44990E-06
0.43884E-06 0.42797E-06 0.41728E-06 0.40700E-06 0.39708E-06
0.38733E-06 0.37773E-06 0.36830E-06 0.35916E-06 0.35044E-06
0.34186E-06 0.33343E-06 0.32513E-06 0.31697E-06 0.30908E-06
0.30145E-06 0.29401E-06 0.28675E-06 0.27967E-06 0.27277E-06
0.26603E-06 0.25947E-06 0.25306E-06 0.24681E-06 0.24072E-06
0.23478E-06 0.22898E-06 0.22333E-06 0.21781E-06 0.21244E-06
0.20719E-06 0.20208E-06 0.19709E-06 0.19222E-06 0.18748E-06
0.18285E-06 0.17833E-06 0.17393E-06 0.16964E-06 0.16545E-06
0.16137E-06 0.15738E-06 0.15350E-06 0.14971E-06 0.14601E-06
0.14240E-06 0.13889E-06 0.13546E-06 0.13211E-06 0.12885E-06
0.12567E-06 0.12257E-06 0.11954E-06 0.11659E-06 0.11371E-06
0.11090E-06 0.10816E-06 0.10549E-06 0.10289E-06 0.10035E-06
0.97870E-07 0.95453E-07 0.93097E-07 0.90797E-07 0.88554E-07
0.86368E-07 0.84236E-07 0.82154E-07 0.80125E-07 0.78148E-07
0.76216E-07 0.74334E-07 0.72499E-07 0.70707E-07 0.68962E-07
0.67257E-07 0.65596E-07 0.63978E-07 0.62395E-07 0.60856E-07
0.59351E-07 0.57887E-07 0.56455E-07 0.55062E-07 0.53701E-07
0.52375E-07 0.51080E-07 0.49820E-07 0.48588E-07 0.47389E-07
0.46216E-07 0.45077E-07 0.43961E-07 0.42878E-07 0.41815E-07
0.40785E-07 0.39776E-07 0.38793E-07 0.37837E-07 0.36899E-07
0.35991E-07 0.35100E-07 0.34232E-07 0.33389E-07 0.32560E-07
0.31758E-07 0.30975E-07 0.30206E-07 0.29463E-07 0.28735E-07
0.28021E-07 0.27333E-07 0.26657E-07 0.25995E-07 0.25357E-07
0.24731E-07 0.24114E-07 0.23510E-07 0.22916E-07 0.22245E-07
0.21551E-07 0.20747E-07 0.19787E-07 0.15129E-07 0.67562E-08
0.52968E-10 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.15779E-04 0.18449E-04 0.21487E-04 0.24963E-04 0.28927E-04
0.33418E-04 0.38467E-04 0.44155E-04 0.50555E-04 0.57738E-04
0.65760E-04 0.74648E-04 0.84536E-04 0.95511E-04 0.10766E-03
0.12106E-03 0.13569E-03 0.15172E-03 0.16939E-03 0.18869E-03
0.20970E-03 0.23226E-03 0.25703E-03 0.28370E-03 0.31257E-03
0.34369E-03 0.37705E-03 0.41302E-03 0.45137E-03 0.49253E-03
0.53631E-03 0.58295E-03 0.63260E-03 0.68508E-03 0.74076E-03
0.79952E-03 0.86137E-03 0.92649E-03 0.99497E-03 0.10665E-02
0.11414E-02 0.12196E-02 0.13010E-02 0.13857E-02 0.14735E-02
0.15644E-02 0.16584E-02 0.17555E-02 0.18554E-02 0.19581E-02
0.20636E-02 0.21717E-02 0.22823E-02 0.23953E-02 0.25106E-02
0.26280E-02 0.27474E-02 0.28687E-02 0.29916E-02 0.31163E-02
0.32424E-02 0.33698E-02 0.34985E-02 0.36283E-02 0.37588E-02
0.38899E-02 0.40219E-02 0.41543E-02 0.42871E-02 0.44197E-02
0.45525E-02 0.46852E-02 0.48176E-02 0.49493E-02 0.50806E-02
0.52111E-02 0.53405E-02 0.54688E-02 0.55960E-02 0.57215E-02
0.58456E-02 0.59678E-02 0.60881E-02 0.62063E-02 0.63223E-02
0.64357E-02 0.65466E-02 0.66550E-02 0.67600E-02 0.68626E-02
0.69613E-02 0.70574E-02 0.71492E-02 0.72385E-02 0.73229E-02
0.74048E-02 0.74813E-02 0.75554E-02 0.76236E-02 0.76896E-02
0.77494E-02 0.78060E-02 0.78583E-02 0.79050E-02 0.79495E-02
0.79865E-02 0.80220E-02 0.80508E-02 0.80754E-02 0.80978E-02
0.81118E-02 0.81247E-02 0.81327E-02 0.81338E-02 0.81349E-02
0.81286E-02 0.81178E-02 0.81071E-02 0.80882E-02 0.80657E-02
0.80436E-02 0.80142E-02 0.79804E-02 0.79471E-02 0.79099E-02
0.78654E-02 0.78216E-02 0.77774E-02 0.77249E-02 0.76713E-02
0.76187E-02 0.75634E-02 0.75009E-02 0.74395E-02 0.73791E-02
0.73151E-02 0.72459E-02 0.71779E-02 0.71110E-02 0.70424E-02
0.69678E-02 0.68945E-02 0.68223E-02 0.67510E-02 0.66740E-02
0.65965E-02 0.65202E-02 0.64452E-02 0.63703E-02 0.62906E-02
0.62113E-02 0.61333E-02 0.60566E-02 0.59810E-02 0.59006E-02
0.58198E-02 0.57403E-02 0.56621E-02 0.55853E-02 0.55090E-02
0.54305E-02 0.53520E-02 0.52737E-02 0.51956E-02 0.51178E-02
0.50405E-02 0.49635E-02 0.48871E-02 0.48111E-02 0.47357E-02
0.46607E-02 0.45864E-02 0.45126E-02 0.44393E-02 0.43666E-02
0.42944E-02 0.42229E-02 0.41520E-02 0.40817E-02 0.40120E-02
0.39430E-02 0.38746E-02 0.38069E-02 0.37399E-02 0.36736E-02
0.36081E-02 0.35433E-02 0.34792E-02 0.34158E-02 0.33530E-02
0.32909E-02 0.32294E-02 0.31685E-02 0.31082E-02 0.30485E-02
0.29896E-02 0.29314E-02 0.28740E-02 0.28174E-02 0.27616E-02
0.27066E-02 0.26524E-02 0.25990E-02 0.25463E-02 0.24943E-02
0.24430E-02 0.23925E-02 0.23427E-02 0.22937E-02 0.22455E-02
0.21981E-02 0.21515E-02 0.21057E-02 0.20607E-02 0.20165E-02
0.19731E-02 0.19305E-02 0.18887E-02 0.18477E-02 0.18075E-02
0.17680E-02 0.17292E-02 0.16912E-02 0.16540E-02 0.16174E-02
0.15815E-02 0.15464E-02 0.15119E-02 0.14782E-02 0.14451E-02
0.14127E-02 0.13809E-02 0.13498E-02 0.13193E-02 0.12894E-02
0.12602E-02 0.12316E-02 0.12035E-02 0.11761E-02 0.11492E-02
0.11229E-02 0.10972E-02 0.10719E-02 0.10473E-02 0.10232E-02
0.99958E-03 0.97652E-03 0.95386E-03 0.93181E-03 0.91018E-03
0.88898E-03 0.86836E-03 0.84809E-03 0.82830E-03 0.80901E-03
0.79003E-03 0.77154E-03 0.75351E-03 0.73578E-03 0.71848E-03
0.70165E-03 0.68510E-03 0.66889E-03 0.65320E-03 0.63778E-03
0.62262E-03 0.60795E-03 0.59360E-03 0.57949E-03 0.56568E-03
0.55234E-03 0.53924E-03 0.52636E-03 0.51378E-03 0.50164E-03
0.48971E-03 0.47797E-03 0.46649E-03 0.45545E-03 0.44461E-03
0.43394E-03 0.42345E-03 0.41336E-03 0.40354E-03 0.39388E-03
0.38437E-03 0.37505E-03 0.36612E-03 0.35739E-03 0.34881E-03
0.34037E-03 0.33208E-03 0.32412E-03 0.31640E-03 0.30881E-03
0.30135E-03 0.29401E-03 0.28680E-03 0.27985E-03 0.27309E-03
0.26648E-03 0.26004E-03 0.25374E-03 0.24760E-03 0.24160E-03
0.23575E-03 0.23003E-03 0.22446E-03 0.21901E-03 0.21370E-03
0.20851E-03 0.20345E-03 0.19850E-03 0.19368E-03 0.18897E-03
0.18438E-03 0.17990E-03 0.17552E-03 0.17125E-03 0.16708E-03
0.16301E-03 0.15904E-03 0.15517E-03 0.15139E-03 0.14770E-03
0.14409E-03 0.14058E-03 0.13715E-03 0.13381E-03 0.13054E-03
0.12735E-03 0.12424E-03 0.12121E-03 0.11825E-03 0.11536E-03
0.11254E-03 0.10979E-03 0.10711E-03 0.10449E-03 0.10193E-03
0.99442E-04 0.97009E-04 0.94636E-04 0.92321E-04 0.90061E-04
0.87856E-04 0.85705E-04 0.83608E-04 0.81559E-04 0.79561E-04
0.77613E-04 0.75711E-04 0.73855E-04 0.72047E-04 0.70280E-04
0.68557E-04 0.66877E-04 0.65236E-04 0.63636E-04 0.62077E-04
0.60553E-04 0.59069E-04 0.57618E-04 0.56205E-04 0.54826E-04
0.53480E-04 0.52168E-04 0.50886E-04 0.49638E-04 0.48418E-04
0.47231E-04 0.46069E-04 0.44939E-04 0.43834E-04 0.42758E-04
0.41708E-04 0.40682E-04 0.39685E-04 0.38707E-04 0.37759E-04
0.36827E-04 0.35925E-04 0.35042E-04 0.34178E-04 0.33341E-04
0.32518E-04 0.31721E-04 0.30941E-04 0.30177E-04 0.29439E-04
0.28714E-04 0.28005E-04 0.27320E-04 0.26646E-04 0.25989E-04
0.25353E-04 0.24728E-04 0.24117E-04 0.23528E-04 0.22948E-04
0.22380E-04 0.21833E-04 0.21296E-04 0.20768E-04 0.20259E-04
0.19763E-04 0.19275E-04 0.18797E-04 0.18338E-04 0.17888E-04
0.17446E-04 0.17013E-04 0.16598E-04 0.16191E-04 0.15790E-04
0.15398E-04 0.15022E-04 0.14654E-04 0.14293E-04 0.13937E-04
0.13594E-04 0.13263E-04 0.12937E-04 0.12617E-04 0.12302E-04
0.12001E-04 0.11709E-04 0.11421E-04 0.11139E-04 0.10860E-04
0.10593E-04 0.10336E-04 0.10083E-04 0.98342E-05 0.95896E-05
0.93492E-05 0.91176E-05 0.88929E-05 0.86736E-05 0.84599E-05
0.82513E-05 0.80479E-05 0.78495E-05 0.76560E-05 0.74672E-05
0.72831E-05 0.71036E-05 0.69284E-05 0.67576E-05 0.65910E-05
0.64285E-05 0.62700E-05 0.61153E-05 0.59645E-05 0.58175E-05
0.56740E-05 0.55341E-05 0.53976E-05 0.52645E-05 0.51347E-05
0.50081E-05 0.48846E-05 0.47641E-05 0.46466E-05 0.45320E-05
0.44202E-05 0.43112E-05 0.42048E-05 0.41011E-05 0.40000E-05
0.39013E-05 0.38051E-05 0.37112E-05 0.36197E-05 0.35304E-05
0.34433E-05 0.33584E-05 0.32755E-05 0.31947E-05 0.31159E-05
0.30390E-05 0.29641E-05 0.28909E-05 0.28196E-05 0.27501E-05
0.26822E-05 0.26160E-05 0.25515E-05 0.24886E-05 0.24271E-05
0.23672E-05 0.23089E-05 0.22519E-05 0.21963E-05 0.21422E-05
0.20892E-05 0.20377E-05 0.19875E-05 0.19384E-05 0.18906E-05
0.18439E-05 0.17985E-05 0.17540E-05 0.17108E-05 0.16686E-05
0.16274E-05 0.15872E-05 0.15481E-05 0.15099E-05 0.14726E-05
0.14363E-05 0.14008E-05 0.13663E-05 0.13326E-05 0.12996E-05
0.12677E-05 0.12363E-05 0.12059E-05 0.11760E-05 0.11470E-05
0.11188E-05 0.10911E-05 0.10643E-05 0.10379E-05 0.10123E-05
0.98739E-06 0.96292E-06 0.93926E-06 0.91607E-06 0.89337E-06
0.87144E-06 0.84990E-06 0.82884E-06 0.80851E-06 0.78852E-06
0.76897E-06 0.75012E-06 0.73160E-06 0.71343E-06 0.69592E-06
0.67879E-06 0.66194E-06 0.64560E-06 0.62977E-06 0.61421E-06
0.59892E-06 0.58424E-06 0.56989E-06 0.55578E-06 0.54195E-06
0.52868E-06 0.51570E-06 0.50293E-06 0.49039E-06 0.47838E-06
0.46666E-06 0.45513E-06 0.44380E-06 0.43281E-06 0.42226E-06
0.41188E-06 0.40168E-06 0.39164E-06 0.38200E-06 0.37269E-06
0.36353E-06 0.35453E-06 0.34567E-06 0.33709E-06 0.32891E-06
0.32086E-06 0.31294E-06 0.30516E-06 0.29750E-06 0.29010E-06
0.28294E-06 0.27595E-06 0.26914E-06 0.26249E-06 0.25602E-06
0.24969E-06 0.24353E-06 0.23752E-06 0.23166E-06 0.22594E-06
0.22036E-06 0.21492E-06 0.20961E-06 0.20444E-06 0.19939E-06
0.19447E-06 0.18967E-06 0.18499E-06 0.18042E-06 0.17597E-06
0.17162E-06 0.16739E-06 0.16325E-06 0.15922E-06 0.15529E-06
0.15146E-06 0.14772E-06 0.14407E-06 0.14052E-06 0.13705E-06
0.13366E-06 0.13036E-06 0.12715E-06 0.12401E-06 0.12094E-06
0.11796E-06 0.11505E-06 0.11221E-06 0.10944E-06 0.10673E-06
0.10410E-06 0.10153E-06 0.99024E-07 0.96579E-07 0.94194E-07
0.91868E-07 0.89600E-07 0.87389E-07 0.85231E-07 0.83126E-07
0.81075E-07 0.79074E-07 0.77120E-07 0.75216E-07 0.73360E-07
0.71548E-07 0.69782E-07 0.68060E-07 0.66378E-07 0.64741E-07
0.63141E-07 0.61582E-07 0.60063E-07 0.58578E-07 0.57134E-07
0.55721E-07 0.54348E-07 0.53004E-07 0.51697E-07 0.50419E-07
0.49176E-07 0.47960E-07 0.46777E-07 0.45621E-07 0.44496E-07
0.43395E-07 0.42327E-07 0.41279E-07 0.40263E-07 0.39266E-07
0.38299E-07 0.37352E-07 0.36429E-07 0.35532E-07 0.34652E-07
0.33799E-07 0.32963E-07 0.32149E-07 0.31357E-07 0.30579E-07
0.29827E-07 0.29092E-07 0.28370E-07 0.27673E-07 0.26989E-07
0.26320E-07 0.25674E-07 0.25040E-07 0.24418E-07 0.23818E-07
0.23228E-07 0.22642E-07 0.22072E-07 0.21490E-07 0.20718E-07
0.19040E-07 0.76592E-08 0.18041E-08 0.14387E-08 0.68515E-09
0.34784E-11 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.91249E-05 0.10782E-04 0.12689E-04 0.14892E-04 0.17426E-04
0.20324E-04 0.23627E-04 0.27384E-04 0.31647E-04 0.36468E-04
0.41905E-04 0.48014E-04 0.54865E-04 0.62526E-04 0.71069E-04
0.80566E-04 0.91082E-04 0.10270E-03 0.11562E-03 0.12982E-03
0.14538E-03 0.16222E-03 0.18093E-03 0.20124E-03 0.22341E-03
0.24751E-03 0.27356E-03 0.30187E-03 0.33227E-03 0.36517E-03
0.40041E-03 0.43824E-03 0.47880E-03 0.52196E-03 0.56809E-03
0.61710E-03 0.66901E-03 0.72403E-03 0.78225E-03 0.84345E-03
0.90789E-03 0.97552E-03 0.10464E-02 0.11206E-02 0.11978E-02
0.12782E-02 0.13619E-02 0.14486E-02 0.15384E-02 0.16312E-02
0.17268E-02 0.18254E-02 0.19267E-02 0.20306E-02 0.21372E-02
0.22463E-02 0.23577E-02 0.24714E-02 0.25871E-02 0.27051E-02
0.28250E-02 0.29466E-02 0.30700E-02 0.31951E-02 0.33215E-02
0.34491E-02 0.35780E-02 0.37081E-02 0.38392E-02 0.39708E-02
0.41032E-02 0.42362E-02 0.43696E-02 0.45029E-02 0.46364E-02
0.47701E-02 0.49031E-02 0.50359E-02 0.51684E-02 0.52996E-02
0.54302E-02 0.55597E-02 0.56877E-02 0.58144E-02 0.59392E-02
0.60624E-02 0.61834E-02 0.63023E-02 0.64187E-02 0.65328E-02
0.66438E-02 0.67524E-02 0.68572E-02 0.69596E-02 0.70576E-02
0.71532E-02 0.72439E-02 0.73321E-02 0.74148E-02 0.74951E-02
0.75695E-02 0.76407E-02 0.77075E-02 0.77688E-02 0.78278E-02
0.78792E-02 0.79290E-02 0.79719E-02 0.80103E-02 0.80464E-02
0.80738E-02 0.80998E-02 0.81207E-02 0.81344E-02 0.81478E-02
0.81534E-02 0.81541E-02 0.81548E-02 0.81467E-02 0.81347E-02
0.81229E-02 0.81033E-02 0.80788E-02 0.80548E-02 0.80264E-02
0.79901E-02 0.79544E-02 0.79181E-02 0.78727E-02 0.78261E-02
0.77802E-02 0.77314E-02 0.76748E-02 0.76192E-02 0.75644E-02
0.75057E-02 0.74412E-02 0.73778E-02 0.73155E-02 0.72511E-02
0.71802E-02 0.71105E-02 0.70419E-02 0.69740E-02 0.68998E-02
0.68249E-02 0.67512E-02 0.66787E-02 0.66062E-02 0.65283E-02
0.64506E-02 0.63743E-02 0.62993E-02 0.62252E-02 0.61458E-02
0.60658E-02 0.59871E-02 0.59097E-02 0.58336E-02 0.57580E-02
0.56798E-02 0.56014E-02 0.55229E-02 0.54447E-02 0.53666E-02
0.52888E-02 0.52112E-02 0.51341E-02 0.50573E-02 0.49810E-02
0.49050E-02 0.48296E-02 0.47546E-02 0.46801E-02 0.46061E-02
0.45326E-02 0.44596E-02 0.43872E-02 0.43153E-02 0.42439E-02
0.41732E-02 0.41030E-02 0.40334E-02 0.39645E-02 0.38961E-02
0.38285E-02 0.37615E-02 0.36952E-02 0.36297E-02 0.35648E-02
0.35006E-02 0.34372E-02 0.33744E-02 0.33122E-02 0.32506E-02
0.31896E-02 0.31291E-02 0.30692E-02 0.30100E-02 0.29515E-02
0.28938E-02 0.28368E-02 0.27807E-02 0.27254E-02 0.26709E-02
0.26171E-02 0.25641E-02 0.25118E-02 0.24602E-02 0.24093E-02
0.23592E-02 0.23098E-02 0.22611E-02 0.22133E-02 0.21663E-02
0.21201E-02 0.20747E-02 0.20301E-02 0.19863E-02 0.19433E-02
0.19011E-02 0.18598E-02 0.18191E-02 0.17793E-02 0.17402E-02
0.17018E-02 0.16642E-02 0.16273E-02 0.15911E-02 0.15557E-02
0.15209E-02 0.14868E-02 0.14534E-02 0.14207E-02 0.13887E-02
0.13572E-02 0.13265E-02 0.12963E-02 0.12668E-02 0.12380E-02
0.12096E-02 0.11820E-02 0.11548E-02 0.11284E-02 0.11024E-02
0.10770E-02 0.10521E-02 0.10277E-02 0.10040E-02 0.98069E-03
0.95786E-03 0.93565E-03 0.91380E-03 0.89248E-03 0.87168E-03
0.85123E-03 0.83130E-03 0.81186E-03 0.79274E-03 0.77409E-03
0.75594E-03 0.73810E-03 0.72062E-03 0.70370E-03 0.68706E-03
0.67071E-03 0.65488E-03 0.63941E-03 0.62419E-03 0.60928E-03
0.59489E-03 0.58076E-03 0.56686E-03 0.55329E-03 0.54020E-03
0.52732E-03 0.51466E-03 0.50227E-03 0.49035E-03 0.47865E-03
0.46715E-03 0.45583E-03 0.44494E-03 0.43434E-03 0.42392E-03
0.41367E-03 0.40361E-03 0.39398E-03 0.38456E-03 0.37531E-03
0.36621E-03 0.35725E-03 0.34867E-03 0.34035E-03 0.33217E-03
0.32411E-03 0.31620E-03 0.30843E-03 0.30093E-03 0.29364E-03
0.28652E-03 0.27957E-03 0.27278E-03 0.26616E-03 0.25970E-03
0.25339E-03 0.24723E-03 0.24121E-03 0.23535E-03 0.22962E-03
0.22403E-03 0.21858E-03 0.21325E-03 0.20806E-03 0.20298E-03
0.19804E-03 0.19321E-03 0.18849E-03 0.18389E-03 0.17940E-03
0.17502E-03 0.17075E-03 0.16658E-03 0.16251E-03 0.15854E-03
0.15466E-03 0.15088E-03 0.14719E-03 0.14359E-03 0.14008E-03
0.13665E-03 0.13330E-03 0.13004E-03 0.12686E-03 0.12375E-03
0.12072E-03 0.11776E-03 0.11487E-03 0.11206E-03 0.10931E-03
0.10663E-03 0.10402E-03 0.10147E-03 0.98977E-04 0.96548E-04
0.94179E-04 0.91868E-04 0.89614E-04 0.87413E-04 0.85268E-04
0.83175E-04 0.81132E-04 0.79139E-04 0.77197E-04 0.75300E-04
0.73449E-04 0.71647E-04 0.69884E-04 0.68167E-04 0.66493E-04
0.64857E-04 0.63265E-04 0.61707E-04 0.60192E-04 0.58711E-04
0.57268E-04 0.55860E-04 0.54485E-04 0.53146E-04 0.51837E-04
0.50564E-04 0.49318E-04 0.48107E-04 0.46922E-04 0.45768E-04
0.44642E-04 0.43542E-04 0.42472E-04 0.41424E-04 0.40407E-04
0.39409E-04 0.38442E-04 0.37495E-04 0.36570E-04 0.35673E-04
0.34791E-04 0.33937E-04 0.33102E-04 0.32283E-04 0.31492E-04
0.30715E-04 0.29956E-04 0.29222E-04 0.28501E-04 0.27797E-04
0.27116E-04 0.26446E-04 0.25792E-04 0.25161E-04 0.24540E-04
0.23932E-04 0.23346E-04 0.22772E-04 0.22207E-04 0.21661E-04
0.21130E-04 0.20608E-04 0.20097E-04 0.19605E-04 0.19124E-04
0.18650E-04 0.18187E-04 0.17743E-04 0.17307E-04 0.16879E-04
0.16459E-04 0.16057E-04 0.15663E-04 0.15277E-04 0.14896E-04
0.14529E-04 0.14175E-04 0.13826E-04 0.13484E-04 0.13147E-04
0.12825E-04 0.12513E-04 0.12205E-04 0.11903E-04 0.11605E-04
0.11319E-04 0.11044E-04 0.10774E-04 0.10508E-04 0.10246E-04
0.99891E-05 0.97415E-05 0.95012E-05 0.92668E-05 0.90383E-05
0.88153E-05 0.85978E-05 0.83857E-05 0.81789E-05 0.79771E-05
0.77803E-05 0.75883E-05 0.74012E-05 0.72186E-05 0.70405E-05
0.68668E-05 0.66974E-05 0.65321E-05 0.63710E-05 0.62138E-05
0.60605E-05 0.59109E-05 0.57651E-05 0.56229E-05 0.54841E-05
0.53488E-05 0.52168E-05 0.50881E-05 0.49626E-05 0.48401E-05
0.47207E-05 0.46042E-05 0.44906E-05 0.43798E-05 0.42717E-05
0.41663E-05 0.40635E-05 0.39632E-05 0.38654E-05 0.37700E-05
0.36770E-05 0.35862E-05 0.34977E-05 0.34114E-05 0.33272E-05
0.32451E-05 0.31651E-05 0.30869E-05 0.30107E-05 0.29365E-05
0.28640E-05 0.27933E-05 0.27243E-05 0.26572E-05 0.25915E-05
0.25276E-05 0.24652E-05 0.24044E-05 0.23450E-05 0.22872E-05
0.22307E-05 0.21757E-05 0.21220E-05 0.20695E-05 0.20185E-05
0.19687E-05 0.19201E-05 0.18727E-05 0.18265E-05 0.17814E-05
0.17374E-05 0.16946E-05 0.16527E-05 0.16120E-05 0.15722E-05
0.15334E-05 0.14955E-05 0.14586E-05 0.14227E-05 0.13875E-05
0.13533E-05 0.13198E-05 0.12873E-05 0.12555E-05 0.12245E-05
0.11943E-05 0.11648E-05 0.11361E-05 0.11080E-05 0.10807E-05
0.10541E-05 0.10279E-05 0.10027E-05 0.97792E-06 0.95368E-06
0.93026E-06 0.90727E-06 0.88478E-06 0.86307E-06 0.84173E-06
0.82085E-06 0.80072E-06 0.78095E-06 0.76155E-06 0.74286E-06
0.72457E-06 0.70658E-06 0.68913E-06 0.67223E-06 0.65562E-06
0.63930E-06 0.62362E-06 0.60831E-06 0.59324E-06 0.57848E-06
0.56431E-06 0.55046E-06 0.53683E-06 0.52344E-06 0.51062E-06
0.49811E-06 0.48580E-06 0.47370E-06 0.46197E-06 0.45071E-06
0.43963E-06 0.42874E-06 0.41803E-06 0.40774E-06 0.39780E-06
0.38803E-06 0.37842E-06 0.36896E-06 0.35981E-06 0.35107E-06
0.34248E-06 0.33403E-06 0.32572E-06 0.31754E-06 0.30964E-06
0.30200E-06 0.29454E-06 0.28727E-06 0.28018E-06 0.27326E-06
0.26651E-06 0.25994E-06 0.25352E-06 0.24726E-06 0.24116E-06
0.23520E-06 0.22940E-06 0.22373E-06 0.21821E-06 0.21282E-06
0.20757E-06 0.20244E-06 0.19744E-06 0.19257E-06 0.18782E-06
0.18318E-06 0.17866E-06 0.17425E-06 0.16994E-06 0.16575E-06
0.16166E-06 0.15767E-06 0.15377E-06 0.14998E-06 0.14627E-06
0.14266E-06 0.13914E-06 0.13570E-06 0.13235E-06 0.12908E-06
0.12590E-06 0.12279E-06 0.11976E-06 0.11680E-06 0.11392E-06
0.11110E-06 0.10836E-06 0.10568E-06 0.10308E-06 0.10053E-06
0.98046E-07 0.95625E-07 0.93265E-07 0.90961E-07 0.88714E-07
0.86524E-07 0.84387E-07 0.82302E-07 0.80270E-07 0.78288E-07
0.76353E-07 0.74468E-07 0.72629E-07 0.70834E-07 0.69086E-07
0.67378E-07 0.65714E-07 0.64092E-07 0.62507E-07 0.60966E-07
0.59457E-07 0.57991E-07 0.56556E-07 0.55161E-07 0.53797E-07
0.52469E-07 0.51172E-07 0.49909E-07 0.48675E-07 0.47474E-07
0.46298E-07 0.45158E-07 0.44039E-07 0.42954E-07 0.41890E-07
0.40858E-07 0.39847E-07 0.38862E-07 0.37904E-07 0.36964E-07
0.36055E-07 0.35162E-07 0.34293E-07 0.33448E-07 0.32618E-07
0.31815E-07 0.31029E-07 0.30259E-07 0.29515E-07 0.28786E-07
0.28071E-07 0.27381E-07 0.26705E-07 0.26041E-07 0.25401E-07
0.24774E-07 0.24157E-07 0.23551E-07 0.22955E-07 0.22278E-07
0.21576E-07 0.20759E-07 0.19781E-07 0.15668E-07 0.74570E-08
0.49048E-10 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.15801E-04 0.18474E-04 0.21514E-04 0.24993E-04 0.28961E-04
0.33455E-04 0.38507E-04 0.44200E-04 0.50604E-04 0.57792E-04
0.65819E-04 0.74712E-04 0.84605E-04 0.95585E-04 0.10774E-03
0.12114E-03 0.13578E-03 0.15182E-03 0.16950E-03 0.18881E-03
0.20982E-03 0.23239E-03 0.25716E-03 0.28384E-03 0.31271E-03
0.34384E-03 0.37721E-03 0.41319E-03 0.45154E-03 0.49271E-03
0.53649E-03 0.58314E-03 0.63280E-03 0.68528E-03 0.74097E-03
0.79974E-03 0.86159E-03 0.92671E-03 0.99519E-03 0.10668E-02
0.11416E-02 0.12198E-02 0.13013E-02 0.13860E-02 0.14737E-02
0.15646E-02 0.16586E-02 0.17557E-02 0.18556E-02 0.19583E-02
0.20638E-02 0.21719E-02 0.22825E-02 0.23955E-02 0.25107E-02
0.26281E-02 0.27475E-02 0.28688E-02 0.29917E-02 0.31164E-02
0.32425E-02 0.33699E-02 0.34985E-02 0.36283E-02 0.37588E-02
0.38899E-02 0.40219E-02 0.41542E-02 0.42870E-02 0.44196E-02
0.45524E-02 0.46851E-02 0.48175E-02 0.49491E-02 0.50803E-02
0.52109E-02 0.53402E-02 0.54686E-02 0.55957E-02 0.57212E-02
0.58453E-02 0.59675E-02 0.60878E-02 0.62060E-02 0.63219E-02
0.64354E-02 0.65462E-02 0.66546E-02 0.67596E-02 0.68621E-02
0.69609E-02 0.70570E-02 0.71488E-02 0.72380E-02 0.73225E-02
0.74043E-02 0.74809E-02 0.75550E-02 0.76232E-02 0.76891E-02
0.77490E-02 0.78056E-02 0.78579E-02 0.79046E-02 0.79491E-02
0.79861E-02 0.80216E-02 0.80504E-02 0.80750E-02 0.80974E-02
0.81115E-02 0.81243E-02 0.81324E-02 0.81335E-02 0.81345E-02
0.81283E-02 0.81174E-02 0.81068E-02 0.80879E-02 0.80654E-02
0.80433E-02 0.80139E-02 0.79801E-02 0.79468E-02 0.79096E-02
0.78651E-02 0.78214E-02 0.77772E-02 0.77247E-02 0.76711E-02
0.76184E-02 0.75632E-02 0.75007E-02 0.74393E-02 0.73789E-02
0.73149E-02 0.72458E-02 0.71777E-02 0.71109E-02 0.70423E-02
0.69677E-02 0.68943E-02 0.68222E-02 0.67508E-02 0.66739E-02
0.65964E-02 0.65201E-02 0.64451E-02 0.63702E-02 0.62905E-02
0.62112E-02 0.61333E-02 0.60566E-02 0.59809E-02 0.59005E-02
0.58197E-02 0.57402E-02 0.56621E-02 0.55853E-02 0.55090E-02
0.54305E-02 0.53520E-02 0.52737E-02 0.51956E-02 0.51179E-02
0.50405E-02 0.49636E-02 0.48871E-02 0.48111E-02 0.47357E-02
0.46608E-02 0.45864E-02 0.45126E-02 0.44393E-02 0.43666E-02
0.42945E-02 0.42230E-02 0.41521E-02 0.40818E-02 0.40121E-02
0.39431E-02 0.38747E-02 0.38070E-02 0.37400E-02 0.36738E-02
0.36082E-02 0.35434E-02 0.34793E-02 0.34159E-02 0.33532E-02
0.32911E-02 0.32296E-02 0.31686E-02 0.31083E-02 0.30487E-02
0.29898E-02 0.29316E-02 0.28742E-02 0.28176E-02 0.27618E-02
0.27068E-02 0.26526E-02 0.25992E-02 0.25465E-02 0.24945E-02
0.24432E-02 0.23927E-02 0.23429E-02 0.22939E-02 0.22457E-02
0.21983E-02 0.21516E-02 0.21059E-02 0.20609E-02 0.20167E-02
0.19733E-02 0.19307E-02 0.18889E-02 0.18479E-02 0.18076E-02
0.17681E-02 0.17294E-02 0.16914E-02 0.16541E-02 0.16175E-02
0.15817E-02 0.15465E-02 0.15121E-02 0.14783E-02 0.14452E-02
0.14128E-02 0.13810E-02 0.13499E-02 0.13194E-02 0.12896E-02
0.12603E-02 0.12317E-02 0.12036E-02 0.11762E-02 0.11493E-02
0.11230E-02 0.10973E-02 0.10721E-02 0.10474E-02 0.10233E-02
0.99968E-03 0.97662E-03 0.95396E-03 0.93191E-03 0.91027E-03
0.88907E-03 0.86846E-03 0.84818E-03 0.82839E-03 0.80909E-03
0.79012E-03 0.77162E-03 0.75359E-03 0.73585E-03 0.71856E-03
0.70172E-03 0.68517E-03 0.66897E-03 0.65327E-03 0.63785E-03
0.62268E-03 0.60801E-03 0.59366E-03 0.57955E-03 0.56574E-03
0.55240E-03 0.53930E-03 0.52641E-03 0.51383E-03 0.50170E-03
0.48976E-03 0.47802E-03 0.46654E-03 0.45550E-03 0.44465E-03
0.43399E-03 0.42350E-03 0.41341E-03 0.40358E-03 0.39392E-03
0.38441E-03 0.37509E-03 0.36616E-03 0.35743E-03 0.34885E-03
0.34041E-03 0.33211E-03 0.32415E-03 0.31643E-03 0.30884E-03
0.30138E-03 0.29404E-03 0.28683E-03 0.27988E-03 0.27312E-03
0.26651E-03 0.26006E-03 0.25377E-03 0.24762E-03 0.24163E-03
0.23577E-03 0.23006E-03 0.22448E-03 0.21903E-03 0.21372E-03
0.20853E-03 0.20347E-03 0.19852E-03 0.19370E-03 0.18899E-03
0.18440E-03 0.17991E-03 0.17554E-03 0.17126E-03 0.16709E-03
0.16303E-03 0.15906E-03 0.15518E-03 0.15140E-03 0.14771E-03
0.14411E-03 0.14059E-03 0.13716E-03 0.13382E-03 0.13055E-03
0.12737E-03 0.12426E-03 0.12122E-03 0.11826E-03 0.11537E-03
0.11255E-03 0.10980E-03 0.10712E-03 0.10450E-03 0.10194E-03
0.99451E-04 0.97018E-04 0.94645E-04 0.92329E-04 0.90069E-04
0.87864E-04 0.85713E-04 0.83615E-04 0.81566E-04 0.79568E-04
0.77620E-04 0.75718E-04 0.73862E-04 0.72053E-04 0.70287E-04
0.68563E-04 0.66883E-04 0.65242E-04 0.63642E-04 0.62082E-04
0.60558E-04 0.59074E-04 0.57623E-04 0.56210E-04 0.54830E-04
0.53485E-04 0.52173E-04 0.50891E-04 0.49643E-04 0.48422E-04
0.47235E-04 0.46073E-04 0.44943E-04 0.43838E-04 0.42762E-04
0.41712E-04 0.40686E-04 0.39688E-04 0.38710E-04 0.37762E-04
0.36831E-04 0.35928E-04 0.35044E-04 0.34181E-04 0.33344E-04
0.32521E-04 0.31724E-04 0.30944E-04 0.30180E-04 0.29441E-04
0.28716E-04 0.28008E-04 0.27322E-04 0.26648E-04 0.25992E-04
0.25355E-04 0.24730E-04 0.24119E-04 0.23530E-04 0.22950E-04
0.22382E-04 0.21835E-04 0.21298E-04 0.20770E-04 0.20260E-04
0.19764E-04 0.19277E-04 0.18799E-04 0.18339E-04 0.17889E-04
0.17447E-04 0.17014E-04 0.16599E-04 0.16192E-04 0.15792E-04
0.15399E-04 0.15023E-04 0.14656E-04 0.14294E-04 0.13938E-04
0.13595E-04 0.13264E-04 0.12938E-04 0.12618E-04 0.12303E-04
0.12002E-04 0.11710E-04 0.11422E-04 0.11139E-04 0.10861E-04
0.10594E-04 0.10337E-04 0.10084E-04 0.98350E-05 0.95904E-05
0.93499E-05 0.91183E-05 0.88936E-05 0.86743E-05 0.84605E-05
0.82519E-05 0.80485E-05 0.78501E-05 0.76566E-05 0.74678E-05
0.72837E-05 0.71041E-05 0.69290E-05 0.67581E-05 0.65915E-05
0.64290E-05 0.62705E-05 0.61158E-05 0.59650E-05 0.58179E-05
0.56745E-05 0.55345E-05 0.53980E-05 0.52649E-05 0.51351E-05
0.50084E-05 0.48849E-05 0.47645E-05 0.46469E-05 0.45323E-05
0.44205E-05 0.43115E-05 0.42052E-05 0.41014E-05 0.40003E-05
0.39016E-05 0.38054E-05 0.37115E-05 0.36199E-05 0.35307E-05
0.34436E-05 0.33586E-05 0.32757E-05 0.31949E-05 0.31161E-05
0.30393E-05 0.29643E-05 0.28911E-05 0.28198E-05 0.27503E-05
0.26824E-05 0.26162E-05 0.25517E-05 0.24888E-05 0.24273E-05
0.23674E-05 0.23091E-05 0.22520E-05 0.21965E-05 0.21423E-05
0.20894E-05 0.20379E-05 0.19876E-05 0.19385E-05 0.18908E-05
0.18440E-05 0.17986E-05 0.17542E-05 0.17109E-05 0.16687E-05
0.16275E-05 0.15874E-05 0.15482E-05 0.15100E-05 0.14727E-05
0.14364E-05 0.14010E-05 0.13664E-05 0.13327E-05 0.12997E-05
0.12677E-05 0.12364E-05 0.12060E-05 0.11761E-05 0.11471E-05
0.11189E-05 0.10912E-05 0.10643E-05 0.10380E-05 0.10124E-05
0.98747E-06 0.96299E-06 0.93933E-06 0.91614E-06 0.89344E-06
0.87151E-06 0.84996E-06 0.82890E-06 0.80857E-06 0.78859E-06
0.76903E-06 0.75017E-06 0.73166E-06 0.71348E-06 0.69597E-06
0.67884E-06 0.66199E-06 0.64564E-06 0.62982E-06 0.61426E-06
0.59897E-06 0.58428E-06 0.56993E-06 0.55582E-06 0.54199E-06
0.52872E-06 0.51574E-06 0.50297E-06 0.49043E-06 0.47841E-06
0.46669E-06 0.45517E-06 0.44383E-06 0.43284E-06 0.42229E-06
0.41191E-06 0.40171E-06 0.39167E-06 0.38203E-06 0.37272E-06
0.36356E-06 0.35455E-06 0.34570E-06 0.33712E-06 0.32893E-06
0.32088E-06 0.31297E-06 0.30518E-06 0.29752E-06 0.29012E-06
0.28296E-06 0.27597E-06 0.26916E-06 0.26251E-06 0.25604E-06
0.24971E-06 0.24355E-06 0.23754E-06 0.23167E-06 0.22595E-06
0.22038E-06 0.21494E-06 0.20963E-06 0.20445E-06 0.19941E-06
0.19449E-06 0.18968E-06 0.18500E-06 0.18043E-06 0.17598E-06
0.17164E-06 0.16740E-06 0.16327E-06 0.15924E-06 0.15530E-06
0.15147E-06 0.14773E-06 0.14408E-06 0.14053E-06 0.13706E-06
0.13367E-06 0.13037E-06 0.12716E-06 0.12402E-06 0.12095E-06
0.11797E-06 0.11506E-06 0.11222E-06 0.10945E-06 0.10674E-06
0.10411E-06 0.10154E-06 0.99031E-07 0.96587E-07 0.94201E-07
0.91876E-07 0.89607E-07 0.87396E-07 0.85237E-07 0.83133E-07
0.81081E-07 0.79080E-07 0.77126E-07 0.75222E-07 0.73366E-07
0.71553E-07 0.69787E-07 0.68065E-07 0.66383E-07 0.64746E-07
0.63146E-07 0.61587E-07 0.60067E-07 0.58583E-07 0.57138E-07
0.55726E-07 0.54352E-07 0.53008E-07 0.51701E-07 0.50423E-07
0.49179E-07 0.47964E-07 0.46781E-07 0.45624E-07 0.44500E-07
0.43399E-07 0.42330E-07 0.41282E-07 0.40266E-07 0.39268E-07
0.38302E-07 0.37355E-07 0.36432E-07 0.35535E-07 0.34654E-07
0.33802E-07 0.32966E-07 0.32151E-07 0.31360E-07 0.30582E-07
0.29829E-07 0.29094E-07 0.28372E-07 0.27675E-07 0.26991E-07
0.26322E-07 0.25675E-07 0.25041E-07 0.24420E-07 0.23820E-07
0.23230E-07 0.22643E-07 0.22073E-07 0.21491E-07 0.20713E-07
0.18970E-07 0.74960E-08 0.18903E-08 0.15186E-08 0.73550E-09
0.36157E-11 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.15875E-04 0.18559E-04 0.21612E-04 0.25106E-04 0.29090E-04
0.33602E-04 0.38674E-04 0.44388E-04 0.50817E-04 0.58032E-04
0.66088E-04 0.75013E-04 0.84940E-04 0.95959E-04 0.10816E-03
0.12160E-03 0.13629E-03 0.15237E-03 0.17011E-03 0.18948E-03
0.21055E-03 0.23319E-03 0.25803E-03 0.28478E-03 0.31373E-03
0.34494E-03 0.37840E-03 0.41446E-03 0.45291E-03 0.49418E-03
0.53806E-03 0.58481E-03 0.63457E-03 0.68716E-03 0.74297E-03
0.80185E-03 0.86381E-03 0.92906E-03 0.99766E-03 0.10693E-02
0.11444E-02 0.12226E-02 0.13042E-02 0.13890E-02 0.14769E-02
0.15679E-02 0.16621E-02 0.17593E-02 0.18593E-02 0.19622E-02
0.20677E-02 0.21759E-02 0.22866E-02 0.23997E-02 0.25151E-02
0.26326E-02 0.27521E-02 0.28734E-02 0.29965E-02 0.31212E-02
0.32474E-02 0.33749E-02 0.35036E-02 0.36334E-02 0.37639E-02
0.38951E-02 0.40271E-02 0.41595E-02 0.42923E-02 0.44250E-02
0.45578E-02 0.46904E-02 0.48228E-02 0.49544E-02 0.50856E-02
0.52162E-02 0.53454E-02 0.54737E-02 0.56008E-02 0.57263E-02
0.58503E-02 0.59724E-02 0.60926E-02 0.62107E-02 0.63265E-02
0.64399E-02 0.65506E-02 0.66588E-02 0.67637E-02 0.68661E-02
0.69647E-02 0.70607E-02 0.71524E-02 0.72414E-02 0.73257E-02
0.74074E-02 0.74838E-02 0.75577E-02 0.76258E-02 0.76915E-02
0.77512E-02 0.78077E-02 0.78597E-02 0.79063E-02 0.79506E-02
0.79874E-02 0.80228E-02 0.80514E-02 0.80758E-02 0.80981E-02
0.81120E-02 0.81247E-02 0.81326E-02 0.81335E-02 0.81344E-02
0.81280E-02 0.81171E-02 0.81063E-02 0.80872E-02 0.80646E-02
0.80424E-02 0.80129E-02 0.79790E-02 0.79456E-02 0.79083E-02
0.78637E-02 0.78198E-02 0.77756E-02 0.77230E-02 0.76693E-02
0.76166E-02 0.75612E-02 0.74987E-02 0.74372E-02 0.73767E-02
0.73127E-02 0.72435E-02 0.71754E-02 0.71085E-02 0.70398E-02
0.69652E-02 0.68918E-02 0.68196E-02 0.67482E-02 0.66713E-02
0.65937E-02 0.65174E-02 0.64424E-02 0.63675E-02 0.62877E-02
0.62084E-02 0.61304E-02 0.60537E-02 0.59780E-02 0.58976E-02
0.58168E-02 0.57374E-02 0.56592E-02 0.55823E-02 0.55060E-02
0.54276E-02 0.53491E-02 0.52707E-02 0.51927E-02 0.51149E-02
0.50376E-02 0.49606E-02 0.48842E-02 0.48082E-02 0.47328E-02
0.46579E-02 0.45836E-02 0.45098E-02 0.44365E-02 0.43638E-02
0.42917E-02 0.42202E-02 0.41493E-02 0.40790E-02 0.40094E-02
0.39404E-02 0.38720E-02 0.38043E-02 0.37373E-02 0.36711E-02
0.36056E-02 0.35408E-02 0.34768E-02 0.34134E-02 0.33507E-02
0.32886E-02 0.32271E-02 0.31662E-02 0.31059E-02 0.30463E-02
0.29874E-02 0.29292E-02 0.28719E-02 0.28153E-02 0.27595E-02
0.27046E-02 0.26504E-02 0.25970E-02 0.25443E-02 0.24923E-02
0.24411E-02 0.23906E-02 0.23409E-02 0.22919E-02 0.22437E-02
0.21963E-02 0.21497E-02 0.21040E-02 0.20590E-02 0.20149E-02
0.19715E-02 0.19290E-02 0.18872E-02 0.18462E-02 0.18060E-02
0.17665E-02 0.17278E-02 0.16898E-02 0.16526E-02 0.16161E-02
0.15802E-02 0.15451E-02 0.15107E-02 0.14770E-02 0.14439E-02
0.14115E-02 0.13797E-02 0.13487E-02 0.13182E-02 0.12884E-02
0.12591E-02 0.12306E-02 0.12025E-02 0.11751E-02 0.11483E-02
0.11220E-02 0.10963E-02 0.10711E-02 0.10465E-02 0.10223E-02
0.99875E-03 0.97571E-03 0.95307E-03 0.93104E-03 0.90942E-03
0.88824E-03 0.86764E-03 0.84739E-03 0.82761E-03 0.80834E-03
0.78938E-03 0.77090E-03 0.75289E-03 0.73517E-03 0.71789E-03
0.70107E-03 0.68453E-03 0.66834E-03 0.65266E-03 0.63725E-03
0.62210E-03 0.60744E-03 0.59311E-03 0.57901E-03 0.56521E-03
0.55188E-03 0.53880E-03 0.52592E-03 0.51335E-03 0.50123E-03
0.48931E-03 0.47758E-03 0.46611E-03 0.45508E-03 0.44424E-03
0.43359E-03 0.42311E-03 0.41302E-03 0.40321E-03 0.39355E-03
0.38406E-03 0.37474E-03 0.36582E-03 0.35710E-03 0.34853E-03
0.34010E-03 0.33180E-03 0.32386E-03 0.31614E-03 0.30856E-03
0.30110E-03 0.29377E-03 0.28657E-03 0.27962E-03 0.27287E-03
0.26627E-03 0.25983E-03 0.25354E-03 0.24740E-03 0.24141E-03
0.23556E-03 0.22985E-03 0.22428E-03 0.21883E-03 0.21353E-03
0.20834E-03 0.20328E-03 0.19835E-03 0.19353E-03 0.18882E-03
0.18423E-03 0.17975E-03 0.17538E-03 0.17111E-03 0.16695E-03
0.16288E-03 0.15891E-03 0.15504E-03 0.15126E-03 0.14758E-03
0.14398E-03 0.14047E-03 0.13704E-03 0.13370E-03 0.13044E-03
0.12725E-03 0.12415E-03 0.12111E-03 0.11816E-03 0.11527E-03
0.11245E-03 0.10971E-03 0.10702E-03 0.10441E-03 0.10185E-03
0.99363E-04 0.96933E-04 0.94561E-04 0.92248E-04 0.89990E-04
0.87787E-04 0.85638E-04 0.83542E-04 0.81495E-04 0.79499E-04
0.77552E-04 0.75652E-04 0.73797E-04 0.71990E-04 0.70225E-04
0.68503E-04 0.66825E-04 0.65185E-04 0.63587E-04 0.62029E-04
0.60505E-04 0.59023E-04 0.57573E-04 0.56162E-04 0.54783E-04
0.53438E-04 0.52127E-04 0.50847E-04 0.49600E-04 0.48380E-04
0.47194E-04 0.46033E-04 0.44905E-04 0.43801E-04 0.42725E-04
0.41676E-04 0.40651E-04 0.39654E-04 0.38677E-04 0.37729E-04
0.36799E-04 0.35897E-04 0.35014E-04 0.34152E-04 0.33315E-04
0.32493E-04 0.31696E-04 0.30918E-04 0.30154E-04 0.29416E-04
0.28692E-04 0.27984E-04 0.27299E-04 0.26626E-04 0.25969E-04
0.25334E-04 0.24709E-04 0.24099E-04 0.23510E-04 0.22930E-04
0.22363E-04 0.21816E-04 0.21280E-04 0.20753E-04 0.20243E-04
0.19748E-04 0.19260E-04 0.18783E-04 0.18324E-04 0.17874E-04
0.17432E-04 0.17000E-04 0.16585E-04 0.16178E-04 0.15778E-04
0.15386E-04 0.15011E-04 0.14643E-04 0.14282E-04 0.13927E-04
0.13584E-04 0.13253E-04 0.12927E-04 0.12607E-04 0.12293E-04
0.11992E-04 0.11700E-04 0.11413E-04 0.11130E-04 0.10852E-04
0.10585E-04 0.10328E-04 0.10075E-04 0.98268E-05 0.95823E-05
0.93421E-05 0.91107E-05 0.88861E-05 0.86670E-05 0.84534E-05
0.82450E-05 0.80418E-05 0.78435E-05 0.76502E-05 0.74615E-05
0.72776E-05 0.70982E-05 0.69232E-05 0.67525E-05 0.65860E-05
0.64236E-05 0.62652E-05 0.61107E-05 0.59600E-05 0.58131E-05
0.56697E-05 0.55299E-05 0.53935E-05 0.52605E-05 0.51308E-05
0.50043E-05 0.48809E-05 0.47605E-05 0.46431E-05 0.45285E-05
0.44169E-05 0.43079E-05 0.42017E-05 0.40980E-05 0.39969E-05
0.38983E-05 0.38022E-05 0.37084E-05 0.36169E-05 0.35277E-05
0.34407E-05 0.33558E-05 0.32730E-05 0.31923E-05 0.31135E-05
0.30367E-05 0.29618E-05 0.28887E-05 0.28175E-05 0.27480E-05
0.26802E-05 0.26140E-05 0.25495E-05 0.24867E-05 0.24253E-05
0.23654E-05 0.23071E-05 0.22502E-05 0.21946E-05 0.21405E-05
0.20877E-05 0.20362E-05 0.19860E-05 0.19369E-05 0.18892E-05
0.18425E-05 0.17971E-05 0.17527E-05 0.17095E-05 0.16673E-05
0.16262E-05 0.15860E-05 0.15469E-05 0.15087E-05 0.14715E-05
0.14352E-05 0.13998E-05 0.13652E-05 0.13316E-05 0.12986E-05
0.12667E-05 0.12353E-05 0.12050E-05 0.11751E-05 0.11462E-05
0.11179E-05 0.10902E-05 0.10635E-05 0.10371E-05 0.10116E-05
0.98665E-06 0.96219E-06 0.93855E-06 0.91538E-06 0.89270E-06
0.87078E-06 0.84926E-06 0.82821E-06 0.80790E-06 0.78793E-06
0.76839E-06 0.74955E-06 0.73105E-06 0.71289E-06 0.69540E-06
0.67828E-06 0.66144E-06 0.64511E-06 0.62930E-06 0.61375E-06
0.59847E-06 0.58380E-06 0.56946E-06 0.55536E-06 0.54154E-06
0.52828E-06 0.51531E-06 0.50255E-06 0.49002E-06 0.47802E-06
0.46631E-06 0.45479E-06 0.44347E-06 0.43248E-06 0.42194E-06
0.41157E-06 0.40137E-06 0.39135E-06 0.38171E-06 0.37241E-06
0.36326E-06 0.35426E-06 0.34541E-06 0.33684E-06 0.32866E-06
0.32062E-06 0.31271E-06 0.30493E-06 0.29728E-06 0.28988E-06
0.28272E-06 0.27574E-06 0.26894E-06 0.26230E-06 0.25582E-06
0.24951E-06 0.24335E-06 0.23734E-06 0.23148E-06 0.22577E-06
0.22019E-06 0.21476E-06 0.20946E-06 0.20429E-06 0.19924E-06
0.19432E-06 0.18953E-06 0.18485E-06 0.18029E-06 0.17583E-06
0.17149E-06 0.16726E-06 0.16313E-06 0.15910E-06 0.15518E-06
0.15134E-06 0.14761E-06 0.14396E-06 0.14041E-06 0.13694E-06
0.13356E-06 0.13027E-06 0.12705E-06 0.12391E-06 0.12085E-06
0.11787E-06 0.11496E-06 0.11212E-06 0.10935E-06 0.10665E-06
0.10402E-06 0.10145E-06 0.98949E-07 0.96507E-07 0.94123E-07
0.91800E-07 0.89533E-07 0.87324E-07 0.85167E-07 0.83064E-07
0.81014E-07 0.79014E-07 0.77062E-07 0.75160E-07 0.73305E-07
0.71494E-07 0.69730E-07 0.68009E-07 0.66328E-07 0.64692E-07
0.63094E-07 0.61536E-07 0.60018E-07 0.58534E-07 0.57091E-07
0.55680E-07 0.54307E-07 0.52964E-07 0.51658E-07 0.50381E-07
0.49139E-07 0.47924E-07 0.46742E-07 0.45587E-07 0.44463E-07
0.43363E-07 0.42295E-07 0.41248E-07 0.40233E-07 0.39236E-07
0.38270E-07 0.37324E-07 0.36402E-07 0.35505E-07 0.34626E-07
0.33774E-07 0.32938E-07 0.32125E-07 0.31334E-07 0.30557E-07
0.29805E-07 0.29070E-07 0.28349E-07 0.27652E-07 0.26969E-07
0.26300E-07 0.25654E-07 0.25021E-07 0.24400E-07 0.23800E-07
0.23211E-07 0.22624E-07 0.22054E-07 0.21471E-07 0.20687E-07
0.18946E-07 0.74275E-08 0.16570E-08 0.13240E-08 0.63198E-09
0.31073E-11 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
0.15859E-04 0.18541E-04 0.21591E-04 0.25081E-04 0.29061E-04
0.33568E-04 0.38635E-04 0.44344E-04 0.50766E-04 0.57973E-04
0.66022E-04 0.74938E-04 0.84856E-04 0.95864E-04 0.10805E-03
0.12148E-03 0.13616E-03 0.15223E-03 0.16995E-03 0.18930E-03
0.21035E-03 0.23297E-03 0.25778E-03 0.28452E-03 0.31344E-03
0.34463E-03 0.37806E-03 0.41409E-03 0.45251E-03 0.49375E-03
0.53760E-03 0.58432E-03 0.63404E-03 0.68660E-03 0.74236E-03
0.80121E-03 0.86313E-03 0.92834E-03 0.99690E-03 0.10685E-02
0.11435E-02 0.12217E-02 0.13033E-02 0.13881E-02 0.14759E-02
0.15669E-02 0.16610E-02 0.17581E-02 0.18581E-02 0.19609E-02
0.20664E-02 0.21746E-02 0.22853E-02 0.23983E-02 0.25136E-02
0.26311E-02 0.27506E-02 0.28719E-02 0.29948E-02 0.31195E-02
0.32457E-02 0.33732E-02 0.35018E-02 0.36316E-02 0.37621E-02
0.38933E-02 0.40253E-02 0.41576E-02 0.42904E-02 0.44230E-02
0.45558E-02 0.46885E-02 0.48208E-02 0.49525E-02 0.50837E-02
0.52142E-02 0.53435E-02 0.54718E-02 0.55989E-02 0.57244E-02
0.58484E-02 0.59705E-02 0.60908E-02 0.62088E-02 0.63247E-02
0.64381E-02 0.65489E-02 0.66571E-02 0.67621E-02 0.68645E-02
0.69632E-02 0.70592E-02 0.71509E-02 0.72400E-02 0.73244E-02
0.74061E-02 0.74825E-02 0.75566E-02 0.76247E-02 0.76905E-02
0.77502E-02 0.78068E-02 0.78589E-02 0.79055E-02 0.79499E-02
0.79868E-02 0.80222E-02 0.80509E-02 0.80754E-02 0.80977E-02
0.81116E-02 0.81244E-02 0.81323E-02 0.81333E-02 0.81343E-02
0.81280E-02 0.81171E-02 0.81063E-02 0.80873E-02 0.80648E-02
0.80425E-02 0.80131E-02 0.79792E-02 0.79459E-02 0.79087E-02
0.78641E-02 0.78202E-02 0.77760E-02 0.77235E-02 0.76699E-02
0.76171E-02 0.75618E-02 0.74993E-02 0.74378E-02 0.73774E-02
0.73134E-02 0.72442E-02 0.71761E-02 0.71093E-02 0.70406E-02
0.69660E-02 0.68926E-02 0.68205E-02 0.67491E-02 0.66721E-02
0.65946E-02 0.65183E-02 0.64433E-02 0.63684E-02 0.62887E-02
0.62094E-02 0.61314E-02 0.60547E-02 0.59790E-02 0.58986E-02
0.58178E-02 0.57384E-02 0.56602E-02 0.55833E-02 0.55071E-02
0.54286E-02 0.53501E-02 0.52718E-02 0.51937E-02 0.51160E-02
0.50386E-02 0.49617E-02 0.48852E-02 0.48093E-02 0.47339E-02
0.46590E-02 0.45846E-02 0.45108E-02 0.44375E-02 0.43648E-02
0.42927E-02 0.42212E-02 0.41503E-02 0.40801E-02 0.40104E-02
0.39414E-02 0.38730E-02 0.38053E-02 0.37383E-02 0.36721E-02
0.36066E-02 0.35418E-02 0.34777E-02 0.34144E-02 0.33516E-02
0.32895E-02 0.32280E-02 0.31671E-02 0.31068E-02 0.30472E-02
0.29883E-02 0.29302E-02 0.28728E-02 0.28162E-02 0.27604E-02
0.27055E-02 0.26513E-02 0.25978E-02 0.25451E-02 0.24932E-02
0.24419E-02 0.23914E-02 0.23417E-02 0.22927E-02 0.22445E-02
0.21971E-02 0.21505E-02 0.21047E-02 0.20598E-02 0.20156E-02
0.19722E-02 0.19297E-02 0.18879E-02 0.18469E-02 0.18067E-02
0.17672E-02 0.17285E-02 0.16905E-02 0.16532E-02 0.16167E-02
0.15808E-02 0.15457E-02 0.15112E-02 0.14775E-02 0.14444E-02
0.14120E-02 0.13803E-02 0.13492E-02 0.13187E-02 0.12889E-02
0.12596E-02 0.12310E-02 0.12030E-02 0.11755E-02 0.11487E-02
0.11224E-02 0.10967E-02 0.10715E-02 0.10469E-02 0.10227E-02
0.99913E-03 0.97608E-03 0.95343E-03 0.93139E-03 0.90977E-03
0.88858E-03 0.86797E-03 0.84771E-03 0.82793E-03 0.80864E-03
0.78968E-03 0.77120E-03 0.75317E-03 0.73545E-03 0.71816E-03
0.70134E-03 0.68479E-03 0.66860E-03 0.65291E-03 0.63749E-03
0.62234E-03 0.60768E-03 0.59333E-03 0.57923E-03 0.56542E-03
0.55209E-03 0.53900E-03 0.52612E-03 0.51355E-03 0.50142E-03
0.48949E-03 0.47776E-03 0.46629E-03 0.45525E-03 0.44441E-03
0.43375E-03 0.42327E-03 0.41318E-03 0.40336E-03 0.39370E-03
0.38420E-03 0.37488E-03 0.36596E-03 0.35724E-03 0.34866E-03
0.34022E-03 0.33193E-03 0.32398E-03 0.31626E-03 0.30868E-03
0.30122E-03 0.29388E-03 0.28668E-03 0.27973E-03 0.27297E-03
0.26637E-03 0.25992E-03 0.25363E-03 0.24749E-03 0.24150E-03
0.23564E-03 0.22993E-03 0.22436E-03 0.21891E-03 0.21360E-03
0.20842E-03 0.20336E-03 0.19842E-03 0.19360E-03 0.18889E-03
0.18430E-03 0.17982E-03 0.17544E-03 0.17117E-03 0.16701E-03
0.16294E-03 0.15897E-03 0.15510E-03 0.15132E-03 0.14763E-03
0.14403E-03 0.14052E-03 0.13709E-03 0.13375E-03 0.13048E-03
0.12730E-03 0.12419E-03 0.12116E-03 0.11820E-03 0.11531E-03
0.11249E-03 0.10974E-03 0.10706E-03 0.10445E-03 0.10189E-03
0.99399E-04 0.96967E-04 0.94595E-04 0.92281E-04 0.90022E-04
0.87818E-04 0.85668E-04 0.83572E-04 0.81524E-04 0.79527E-04
0.77580E-04 0.75679E-04 0.73824E-04 0.72016E-04 0.70250E-04
0.68527E-04 0.66849E-04 0.65208E-04 0.63609E-04 0.62050E-04
0.60527E-04 0.59044E-04 0.57593E-04 0.56182E-04 0.54802E-04
0.53457E-04 0.52146E-04 0.50864E-04 0.49617E-04 0.48397E-04
0.47211E-04 0.46050E-04 0.44920E-04 0.43816E-04 0.42740E-04
0.41690E-04 0.40665E-04 0.39668E-04 0.38690E-04 0.37743E-04
0.36812E-04 0.35910E-04 0.35027E-04 0.34164E-04 0.33327E-04
0.32504E-04 0.31707E-04 0.30928E-04 0.30165E-04 0.29426E-04
0.28701E-04 0.27993E-04 0.27309E-04 0.26635E-04 0.25978E-04
0.25343E-04 0.24717E-04 0.24107E-04 0.23518E-04 0.22938E-04
0.22371E-04 0.21824E-04 0.21287E-04 0.20760E-04 0.20250E-04
0.19754E-04 0.19267E-04 0.18789E-04 0.18330E-04 0.17880E-04
0.17438E-04 0.17006E-04 0.16591E-04 0.16184E-04 0.15784E-04
0.15391E-04 0.15016E-04 0.14648E-04 0.14287E-04 0.13931E-04
0.13588E-04 0.13257E-04 0.12932E-04 0.12612E-04 0.12297E-04
0.11996E-04 0.11704E-04 0.11417E-04 0.11134E-04 0.10856E-04
0.10589E-04 0.10331E-04 0.10079E-04 0.98301E-05 0.95856E-05
0.93453E-05 0.91138E-05 0.88892E-05 0.86700E-05 0.84563E-05
0.82478E-05 0.80445E-05 0.78462E-05 0.76528E-05 0.74641E-05
0.72801E-05 0.71006E-05 0.69255E-05 0.67548E-05 0.65882E-05
0.64258E-05 0.62673E-05 0.61128E-05 0.59620E-05 0.58151E-05
0.56717E-05 0.55318E-05 0.53954E-05 0.52623E-05 0.51325E-05
0.50060E-05 0.48825E-05 0.47621E-05 0.46446E-05 0.45301E-05
0.44183E-05 0.43094E-05 0.42031E-05 0.40994E-05 0.39983E-05
0.38997E-05 0.38035E-05 0.37096E-05 0.36181E-05 0.35289E-05
0.34419E-05 0.33569E-05 0.32741E-05 0.31934E-05 0.31146E-05
0.30378E-05 0.29628E-05 0.28897E-05 0.28184E-05 0.27489E-05
0.26811E-05 0.26149E-05 0.25504E-05 0.24875E-05 0.24261E-05
0.23662E-05 0.23079E-05 0.22509E-05 0.21954E-05 0.21413E-05
0.20884E-05 0.20369E-05 0.19866E-05 0.19376E-05 0.18898E-05
0.18431E-05 0.17977E-05 0.17533E-05 0.17101E-05 0.16679E-05
0.16267E-05 0.15866E-05 0.15474E-05 0.15093E-05 0.14720E-05
0.14357E-05 0.14003E-05 0.13657E-05 0.13320E-05 0.12991E-05
0.12671E-05 0.12358E-05 0.12054E-05 0.11755E-05 0.11466E-05
0.11183E-05 0.10906E-05 0.10638E-05 0.10375E-05 0.10119E-05
0.98698E-06 0.96252E-06 0.93886E-06 0.91568E-06 0.89299E-06
0.87107E-06 0.84954E-06 0.82849E-06 0.80817E-06 0.78820E-06
0.76865E-06 0.74980E-06 0.73130E-06 0.71313E-06 0.69563E-06
0.67851E-06 0.66167E-06 0.64533E-06 0.62951E-06 0.61395E-06
0.59868E-06 0.58399E-06 0.56965E-06 0.55555E-06 0.54172E-06
0.52846E-06 0.51548E-06 0.50272E-06 0.49018E-06 0.47818E-06
0.46646E-06 0.45494E-06 0.44361E-06 0.43263E-06 0.42208E-06
0.41171E-06 0.40151E-06 0.39148E-06 0.38184E-06 0.37253E-06
0.36338E-06 0.35438E-06 0.34553E-06 0.33695E-06 0.32877E-06
0.32073E-06 0.31281E-06 0.30503E-06 0.29738E-06 0.28998E-06
0.28282E-06 0.27584E-06 0.26903E-06 0.26239E-06 0.25591E-06
0.24959E-06 0.24343E-06 0.23742E-06 0.23156E-06 0.22584E-06
0.22027E-06 0.21483E-06 0.20953E-06 0.20435E-06 0.19931E-06
0.19439E-06 0.18959E-06 0.18491E-06 0.18035E-06 0.17589E-06
0.17155E-06 0.16732E-06 0.16319E-06 0.15916E-06 0.15523E-06
0.15140E-06 0.14766E-06 0.14401E-06 0.14046E-06 0.13699E-06
0.13361E-06 0.13031E-06 0.12709E-06 0.12395E-06 0.12089E-06
0.11791E-06 0.11500E-06 0.11216E-06 0.10939E-06 0.10669E-06
0.10406E-06 0.10149E-06 0.98982E-07 0.96539E-07 0.94155E-07
0.91830E-07 0.89563E-07 0.87353E-07 0.85196E-07 0.83092E-07
0.81041E-07 0.79041E-07 0.77088E-07 0.75185E-07 0.73330E-07
0.71518E-07 0.69753E-07 0.68031E-07 0.66350E-07 0.64714E-07
0.63115E-07 0.61557E-07 0.60038E-07 0.58554E-07 0.57110E-07
0.55698E-07 0.54325E-07 0.52982E-07 0.51675E-07 0.50398E-07
0.49155E-07 0.47940E-07 0.46758E-07 0.45602E-07 0.44478E-07
0.43377E-07 0.42309E-07 0.41262E-07 0.40246E-07 0.39249E-07
0.38283E-07 0.37337E-07 0.36414E-07 0.35517E-07 0.34637E-07
0.33785E-07 0.32949E-07 0.32135E-07 0.31344E-07 0.30567E-07
0.29815E-07 0.29079E-07 0.28358E-07 0.27661E-07 0.26978E-07
0.26309E-07 0.25663E-07 0.25029E-07 0.24408E-07 0.23808E-07
0.23219E-07 0.22632E-07 0.22061E-07 0.21479E-07 0.20695E-07
0.18921E-07 0.73614E-08 0.17846E-08 0.14349E-08 0.69555E-09
0.33721E-11 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
0.00000E+00
;
t
rzmflx= 1, rzflux=1,
t
(sfr/sefor/Cross_Section/Core-I-E_450K_ENDF71_step2.inp)
#!/bin/bash
lib_mcclibdir=../lib.mcc.e71
lib_pwlibdir=../lib.pw.200.e71
exe_twodant=../twodant.x
exe_mcc3=../mcc3.x
exe_isotxs_modify=../ISOTXS_Modify.x
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Na_GP_b (A)
! ============================================================
!
i_externalspectrum(1)= 1
t_composition(:, 1)= NA23_7 NA23_A 1.68850E-02 450.00
CR50_7 CR50_A 1.99835E-04 450.00
CR52_7 CR52_A 3.85357E-03 450.00
CR53_7 CR53_A 4.36962E-04 450.00
CR54_7 CR54_A 1.08771E-04 450.00
FE54_7 FE54_A 8.50997E-04 450.00
FE56_7 FE56_A 1.33588E-02 450.00
FE57_7 FE57_A 3.08517E-04 450.00
FE58_7 FE58_A 4.10573E-05 450.00
NI58_7 NI58_A 1.66423E-03 450.00
NI60_7 NI60_A 6.41055E-04 450.00
NI61_7 NI61_A 2.78666E-05 450.00
NI62_7 NI62_A 8.88497E-05 450.00
NI64_7 NI64_A 2.26275E-05 450.00
B10__7 B10__A 6.60243E-04 450.00
B11__7 B11__A 2.65754E-03 450.00
C____7 C12__A 8.29451E-04 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG01
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FRED (B)
! ============================================================
!
i_externalspectrum(1)= 2
t_composition(:, 1)= NA23_7 NA23_B 1.51201E-04 450.00
CR50_7 CR50_B 1.14143E-04 450.00
CR52_7 CR52_B 2.20114E-03 450.00
CR53_7 CR53_B 2.49595E-04 450.00
CR54_7 CR54_B 6.21283E-05 450.00
FE54_7 FE54_B 5.22298E-04 450.00
FE56_7 FE56_B 8.19891E-03 450.00
FE57_7 FE57_B 1.89344E-04 450.00
FE58_7 FE58_B 2.51981E-05 450.00
MO1007 MO100B 9.43776E-06 450.00
MO92_7 MO92_B 1.45443E-05 450.00
MO94_7 MO94_B 9.06544E-06 450.00
MO95_7 MO95_B 1.56029E-05 450.00
MO96_7 MO96_B 1.63476E-05 450.00
MO97_7 MO97_B 9.35944E-06 450.00
MO98_7 MO98_B 2.36489E-05 450.00
NI58_7 NI58_B 1.09453E-03 450.00
NI60_7 NI60_B 4.21614E-04 450.00
NI61_7 NI61_B 1.83266E-05 450.00
NI62_7 NI62_B 5.84351E-05 450.00
NI64_7 NI64_B 1.48820E-05 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG02
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! DC_IV (C)
! ============================================================
!
i_externalspectrum(1)= 3
t_composition(:, 1)= NA23_7 NA23_C 1.48350E-02 450.00
CR50_7 CR50_C 2.34745E-04 450.00
CR52_7 CR52_C 4.52673E-03 450.00
CR53_7 CR53_C 5.13299E-04 450.00
CR54_7 CR54_C 1.27773E-04 450.00
FE54_7 FE54_C 9.99616E-04 450.00
FE56_7 FE56_C 1.56923E-02 450.00
FE57_7 FE57_C 3.62408E-04 450.00
FE58_7 FE58_C 4.82292E-05 450.00
NI58_7 NI58_C 1.95489E-03 450.00
NI60_7 NI60_C 7.53037E-04 450.00
NI61_7 NI61_C 3.27337E-05 450.00
NI62_7 NI62_C 1.04375E-04 450.00
NI64_7 NI64_C 2.65802E-05 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG03
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! DC_OV (D)
! ============================================================
!
i_externalspectrum(1)= 4
t_composition(:, 1)= MG24_7 MG24_D 4.12309E-04 450.00
MG25_7 MG25_D 5.21977E-05 450.00
MG26_7 MG26_D 5.74694E-05 450.00
AL27_7 AL27_D 1.12844E-02 450.00
CR50_7 CR50_D 1.28512E-04 450.00
CR52_7 CR52_D 2.47827E-03 450.00
CR53_7 CR53_D 2.81011E-04 450.00
CR54_7 CR54_D 6.99491E-05 450.00
FE54_7 FE54_D 5.47272E-04 450.00
FE56_7 FE56_D 8.59100E-03 450.00
FE57_7 FE57_D 1.98405E-04 450.00
FE58_7 FE58_D 2.64034E-05 450.00
NI58_7 NI58_D 1.07022E-03 450.00
NI60_7 NI60_D 4.12259E-04 450.00
NI61_7 NI61_D 1.79202E-05 450.00
NI62_7 NI62_D 5.71389E-05 450.00
NI64_7 NI64_D 1.45518E-05 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG04
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Reflector_Steel_Void (E)
! ============================================================
!
i_externalspectrum(1)= 5
t_composition(:, 1)= CR50_7 CR50_E 1.23500E-04 450.00
CR52_7 CR52_E 2.38160E-03 450.00
CR53_7 CR53_E 2.70060E-04 450.00
CR54_7 CR54_E 6.72230E-05 450.00
FE54_7 FE54_E 5.25940E-04 450.00
FE56_7 FE56_E 8.25610E-03 450.00
FE57_7 FE57_E 1.90670E-04 450.00
FE58_7 FE58_E 2.53750E-05 450.00
NI58_7 NI58_E 1.02850E-03 450.00
NI60_7 NI60_E 3.96190E-04 450.00
NI61_7 NI61_E 1.72220E-05 450.00
NI62_7 NI62_E 5.49120E-05 450.00
NI64_7 NI64_E 1.39840E-05 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG05
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Reflector_Refl (F)
! ============================================================
!
i_externalspectrum(1)= 6
t_composition(:, 1)= MG24_7 MG24_F 7.44450E-05 450.00
MG25_7 MG25_F 9.42463E-06 450.00
MG26_7 MG26_F 1.03762E-05 450.00
AL27_7 AL27_F 2.03752E-03 450.00
CR50_7 CR50_F 2.77734E-05 450.00
CR52_7 CR52_F 5.35588E-04 450.00
CR53_7 CR53_F 6.07314E-05 450.00
CR54_7 CR54_F 1.51177E-05 450.00
FE54_7 FE54_F 1.18273E-04 450.00
FE56_7 FE56_F 1.85668E-03 450.00
FE57_7 FE57_F 4.28782E-05 450.00
FE58_7 FE58_F 5.70638E-06 450.00
NI58_7 NI58_F 4.99710E-02 450.00
NI60_7 NI60_F 1.92485E-02 450.00
NI61_7 NI61_F 8.36735E-04 450.00
NI62_7 NI62_F 2.66786E-03 450.00
NI64_7 NI64_F 6.79430E-04 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG06
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Rad_Shld (G)
! ============================================================
!
i_externalspectrum(1)= 7
t_composition(:, 1)= MG24_7 MG24_G 2.71254E-04 450.00
MG25_7 MG25_G 3.43404E-05 450.00
MG26_7 MG26_G 3.78086E-05 450.00
CR50_7 CR50_G 9.86654E-05 450.00
CR52_7 CR52_G 1.90267E-03 450.00
CR53_7 CR53_G 2.15751E-04 450.00
CR54_7 CR54_G 5.37036E-05 450.00
FE54_7 FE54_G 4.20168E-04 450.00
FE56_7 FE56_G 6.59577E-03 450.00
FE57_7 FE57_G 1.52329E-04 450.00
FE58_7 FE58_G 2.02719E-05 450.00
NI58_7 NI58_G 8.21692E-04 450.00
NI60_7 NI60_G 3.16512E-04 450.00
NI61_7 NI61_G 1.37589E-05 450.00
NI62_7 NI62_G 4.38683E-05 450.00
NI64_7 NI64_G 1.11725E-05 450.00
B10__7 B10__G 5.40601E-03 450.00
B11__7 B11__G 2.17599E-02 450.00
C____7 C12__G 6.79150E-03 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG07
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! Na_steel_t (H)
! ============================================================
!
i_externalspectrum(1)= 8
t_composition(:, 1)= NA23_7 NA23_H 1.35120E-02 450.00
CR50_7 CR50_H 2.66172E-04 450.00
CR52_7 CR52_H 5.13286E-03 450.00
CR53_7 CR53_H 5.82020E-04 450.00
CR54_7 CR54_H 1.44878E-04 450.00
FE54_7 FE54_H 1.13346E-03 450.00
FE56_7 FE56_H 1.77932E-02 450.00
FE57_7 FE57_H 4.10931E-04 450.00
FE58_7 FE58_H 5.46867E-05 450.00
NI58_7 NI58_H 2.21669E-03 450.00
NI60_7 NI60_H 8.53861E-04 450.00
NI61_7 NI61_H 3.71173E-05 450.00
NI62_7 NI62_H 1.18350E-04 450.00
NI64_7 NI64_H 3.01385E-05 450.00
B10__7 B10__H 6.60243E-04 450.00
B11__7 B11__H 2.65754E-03 450.00
C____7 C12__H 8.29451E-04 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG08
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Ni_Axial (I)
! ============================================================
!
i_externalspectrum(1)= 9
t_composition(:, 1)= NA23_7 NA23_I 7.06638E-03 450.00
CR50_7 CR50_I 1.64340E-04 450.00
CR52_7 CR52_I 3.16916E-03 450.00
CR53_7 CR53_I 3.59360E-04 450.00
CR54_7 CR54_I 8.94507E-05 450.00
FE54_7 FE54_I 7.43507E-04 450.00
FE56_7 FE56_I 1.16714E-02 450.00
FE57_7 FE57_I 2.69536E-04 450.00
FE58_7 FE58_I 3.58702E-05 450.00
MO1007 MO100I 1.13768E-05 450.00
MO92_7 MO92_I 1.75326E-05 450.00
MO94_7 MO94_I 1.09280E-05 450.00
MO95_7 MO95_I 1.88087E-05 450.00
MO96_7 MO96_I 1.97063E-05 450.00
MO97_7 MO97_I 1.12825E-05 450.00
MO98_7 MO98_I 2.85077E-05 450.00
NI58_7 NI58_I 2.95620E-02 450.00
NI60_7 NI60_I 1.13874E-02 450.00
NI61_7 NI61_I 4.94973E-04 450.00
NI62_7 NI62_I 1.57827E-03 450.00
NI64_7 NI64_I 4.01938E-04 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG09
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = cylinder
i_number_region = 8
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Fuel_insul (J)
! ============================================================
!
i_externalspectrum(1)= 10 10 10 10 10
10 10 10
t_composition(:, 1)= BE9__7 BE9__J 5.39439E-02 450.00
O16__7 O16__J 5.39439E-02 450.00
CR50_7 CR50_J 1.20548E-04 450.00
CR52_7 CR52_J 2.32460E-03 450.00
CR53_7 CR53_J 2.63605E-04 450.00
CR54_7 CR54_J 6.56154E-05 450.00
FE54_7 FE54_J 5.95077E-04 450.00
FE56_7 FE56_J 9.34136E-03 450.00
FE57_7 FE57_J 2.15727E-04 450.00
FE58_7 FE58_J 2.87093E-05 450.00
MO1007 MO100J 2.12956E-05 450.00
MO92_7 MO92_J 3.28181E-05 450.00
MO94_7 MO94_J 2.04554E-05 450.00
MO95_7 MO95_J 3.52068E-05 450.00
MO96_7 MO96_J 3.68870E-05 450.00
MO97_7 MO97_J 2.11189E-05 450.00
MO98_7 MO98_J 5.33619E-05 450.00
NI58_7 NI58_J 1.32873E-03 450.00
NI60_7 NI60_J 5.11828E-04 450.00
NI61_7 NI61_J 2.22483E-05 450.00
NI62_7 NI62_J 7.09384E-05 450.00
NI64_7 NI64_J 1.80668E-05 450.00
t_composition(:, 2)= NA23_7 NA23_J 2.39160E-02 450.00
t_composition(:, 3)= CR50_7 CR50_J 8.17351E-04 450.00
CR52_7 CR52_J 1.57623E-02 450.00
CR53_7 CR53_J 1.78728E-03 450.00
CR54_7 CR54_J 4.44885E-04 450.00
FE54_7 FE54_J 3.48075E-03 450.00
FE56_7 FE56_J 5.46400E-02 450.00
FE57_7 FE57_J 1.26184E-03 450.00
FE58_7 FE58_J 1.67927E-04 450.00
NI58_7 NI58_J 6.80694E-03 450.00
NI60_7 NI60_J 2.62205E-03 450.00
NI61_7 NI61_J 1.13973E-04 450.00
NI62_7 NI62_J 3.63413E-04 450.00
NI64_7 NI64_J 9.25497E-05 450.00
t_composition(:, 4)= U235_7 U235_J 4.00448E-05 450.00
U238_7 U238_J 1.81622E-02 450.00
O16__7 O16__J 3.64046E-02 450.00
CR50_7 CR50_J 1.09257E-04 450.00
CR52_7 CR52_J 2.10686E-03 450.00
CR53_7 CR53_J 2.38914E-04 450.00
CR54_7 CR54_J 5.94694E-05 450.00
FE54_7 FE54_J 5.39338E-04 450.00
FE56_7 FE56_J 8.46638E-03 450.00
FE57_7 FE57_J 1.95521E-04 450.00
FE58_7 FE58_J 2.60202E-05 450.00
MO1007 MO100J 1.93009E-05 450.00
MO92_7 MO92_J 2.97441E-05 450.00
MO94_7 MO94_J 1.85394E-05 450.00
MO95_7 MO95_J 3.19091E-05 450.00
MO96_7 MO96_J 3.34319E-05 450.00
MO97_7 MO97_J 1.91407E-05 450.00
MO98_7 MO98_J 4.83636E-05 450.00
NI58_7 NI58_J 1.20427E-03 450.00
NI60_7 NI60_J 4.63886E-04 450.00
NI61_7 NI61_J 2.01643E-05 450.00
NI62_7 NI62_J 6.42938E-05 450.00
NI64_7 NI64_J 1.63745E-05 450.00
t_composition(:, 5)= CR50_7 CR50_J 8.17351E-04 450.00
CR52_7 CR52_J 1.57623E-02 450.00
CR53_7 CR53_J 1.78728E-03 450.00
CR54_7 CR54_J 4.44885E-04 450.00
FE54_7 FE54_J 3.48075E-03 450.00
FE56_7 FE56_J 5.46400E-02 450.00
FE57_7 FE57_J 1.26184E-03 450.00
FE58_7 FE58_J 1.67927E-04 450.00
NI58_7 NI58_J 6.80694E-03 450.00
NI60_7 NI60_J 2.62205E-03 450.00
NI61_7 NI61_J 1.13973E-04 450.00
NI62_7 NI62_J 3.63413E-04 450.00
NI64_7 NI64_J 9.25497E-05 450.00
t_composition(:, 6)= NA23_7 NA23_J 2.39160E-02 450.00
t_composition(:, 7)= CR50_7 CR50_J 8.17351E-04 450.00
CR52_7 CR52_J 1.57623E-02 450.00
CR53_7 CR53_J 1.78728E-03 450.00
CR54_7 CR54_J 4.44885E-04 450.00
FE54_7 FE54_J 3.48075E-03 450.00
FE56_7 FE56_J 5.46400E-02 450.00
FE57_7 FE57_J 1.26184E-03 450.00
FE58_7 FE58_J 1.67927E-04 450.00
NI58_7 NI58_J 6.80694E-03 450.00
NI60_7 NI60_J 2.62205E-03 450.00
NI61_7 NI61_J 1.13973E-04 450.00
NI62_7 NI62_J 3.63413E-04 450.00
NI64_7 NI64_J 9.25497E-05 450.00
t_composition(:, 8)= NA23_7 NA23_J 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 3 1
3 1 1
r_location = 1.11426 1.28366 1.37726 3.32428 3.41451
4.05154 4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG10
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = cylinder
i_number_region = 8
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Fuel_St (K)
! ============================================================
!
i_externalspectrum(1)= 11 11 11 11 11
11 11 11
t_composition(:, 1)= BE9__7 BE9__K 5.39439E-02 450.00
O16__7 O16__K 5.39439E-02 450.00
CR50_7 CR50_K 1.20548E-04 450.00
CR52_7 CR52_K 2.32460E-03 450.00
CR53_7 CR53_K 2.63605E-04 450.00
CR54_7 CR54_K 6.56154E-05 450.00
FE54_7 FE54_K 5.95077E-04 450.00
FE56_7 FE56_K 9.34136E-03 450.00
FE57_7 FE57_K 2.15727E-04 450.00
FE58_7 FE58_K 2.87093E-05 450.00
MO1007 MO100K 2.12956E-05 450.00
MO92_7 MO92_K 3.28181E-05 450.00
MO94_7 MO94_K 2.04554E-05 450.00
MO95_7 MO95_K 3.52068E-05 450.00
MO96_7 MO96_K 3.68870E-05 450.00
MO97_7 MO97_K 2.11189E-05 450.00
MO98_7 MO98_K 5.33619E-05 450.00
NI58_7 NI58_K 1.32873E-03 450.00
NI60_7 NI60_K 5.11828E-04 450.00
NI61_7 NI61_K 2.22483E-05 450.00
NI62_7 NI62_K 7.09384E-05 450.00
NI64_7 NI64_K 1.80668E-05 450.00
t_composition(:, 2)= NA23_7 NA23_K 2.39160E-02 450.00
t_composition(:, 3)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 4)= PU2397 PU239K 3.32051E-03 450.00
PU2407 PU240K 2.98177E-04 450.00
U235_7 U235_K 3.12105E-05 450.00
U238_7 U238_K 1.41554E-02 450.00
O16__7 O16__K 3.55742E-02 450.00
CR50_7 CR50_K 1.09257E-04 450.00
CR52_7 CR52_K 2.10686E-03 450.00
CR53_7 CR53_K 2.38914E-04 450.00
CR54_7 CR54_K 5.94694E-05 450.00
FE54_7 FE54_K 5.39338E-04 450.00
FE56_7 FE56_K 8.46638E-03 450.00
FE57_7 FE57_K 1.95521E-04 450.00
FE58_7 FE58_K 2.60202E-05 450.00
MO1007 MO100K 1.93009E-05 450.00
MO92_7 MO92_K 2.97441E-05 450.00
MO94_7 MO94_K 1.85394E-05 450.00
MO95_7 MO95_K 3.19091E-05 450.00
MO96_7 MO96_K 3.34319E-05 450.00
MO97_7 MO97_K 1.91407E-05 450.00
MO98_7 MO98_K 4.83636E-05 450.00
NI58_7 NI58_K 1.20427E-03 450.00
NI60_7 NI60_K 4.63886E-04 450.00
NI61_7 NI61_K 2.01643E-05 450.00
NI62_7 NI62_K 6.42938E-05 450.00
NI64_7 NI64_K 1.63745E-05 450.00
t_composition(:, 5)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 6)= NA23_7 NA23_K 2.39160E-02 450.00
t_composition(:, 7)= CR50_7 CR50_K 8.17351E-04 450.00
CR52_7 CR52_K 1.57623E-02 450.00
CR53_7 CR53_K 1.78728E-03 450.00
CR54_7 CR54_K 4.44885E-04 450.00
FE54_7 FE54_K 3.48075E-03 450.00
FE56_7 FE56_K 5.46400E-02 450.00
FE57_7 FE57_K 1.26184E-03 450.00
FE58_7 FE58_K 1.67927E-04 450.00
NI58_7 NI58_K 6.80694E-03 450.00
NI60_7 NI60_K 2.62205E-03 450.00
NI61_7 NI61_K 1.13973E-04 450.00
NI62_7 NI62_K 3.63413E-04 450.00
NI64_7 NI64_K 9.25497E-05 450.00
t_composition(:, 8)= NA23_7 NA23_K 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 3 1
3 1 1
r_location = 1.11426 1.28366 1.37726 3.32428 3.41451
4.05154 4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG11
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! FA_6_Spring_Void (L)
! ============================================================
!
i_externalspectrum(1)= 12
t_composition(:, 1)= O16__7 O16__L 3.75126E-03 450.00
NA23_7 NA23_L 7.06638E-03 450.00
CR50_7 CR50_L 1.64340E-04 450.00
CR52_7 CR52_L 3.16916E-03 450.00
CR53_7 CR53_L 3.59360E-04 450.00
CR54_7 CR54_L 8.94507E-05 450.00
FE54_7 FE54_L 7.43507E-04 450.00
FE56_7 FE56_L 1.16714E-02 450.00
FE57_7 FE57_L 2.69536E-04 450.00
FE58_7 FE58_L 3.58702E-05 450.00
MO1007 MO100L 1.13768E-05 450.00
MO92_7 MO92_L 1.75326E-05 450.00
MO94_7 MO94_L 1.09280E-05 450.00
MO95_7 MO95_L 1.88087E-05 450.00
MO96_7 MO96_L 1.97063E-05 450.00
MO97_7 MO97_L 1.12825E-05 450.00
MO98_7 MO98_L 2.85077E-05 450.00
NI58_7 NI58_L 1.54215E-03 450.00
NI60_7 NI60_L 5.94038E-04 450.00
NI61_7 NI61_L 2.58214E-05 450.00
NI62_7 NI62_L 8.23328E-05 450.00
NI64_7 NI64_L 2.09681E-05 450.00
BE9__7 BE9__L 3.75126E-03 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG12
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Ni_Axial (M)
! ============================================================
!
i_externalspectrum(1)= 13
t_composition(:, 1)= NA23_7 NA23_M 7.06638E-03 450.00
CR50_7 CR50_M 1.64340E-04 450.00
CR52_7 CR52_M 3.16916E-03 450.00
CR53_7 CR53_M 3.59360E-04 450.00
CR54_7 CR54_M 8.94507E-05 450.00
FE54_7 FE54_M 7.43507E-04 450.00
FE56_7 FE56_M 1.16714E-02 450.00
FE57_7 FE57_M 2.69536E-04 450.00
FE58_7 FE58_M 3.58702E-05 450.00
MO1007 MO100M 1.13768E-05 450.00
MO92_7 MO92_M 1.75326E-05 450.00
MO94_7 MO94_M 1.09280E-05 450.00
MO95_7 MO95_M 1.88087E-05 450.00
MO96_7 MO96_M 1.97063E-05 450.00
MO97_7 MO97_M 1.12825E-05 450.00
MO98_7 MO98_M 2.85077E-05 450.00
NI58_7 NI58_M 2.95620E-02 450.00
NI60_7 NI60_M 1.13874E-02 450.00
NI61_7 NI61_M 4.94973E-04 450.00
NI62_7 NI62_M 1.57827E-03 450.00
NI64_7 NI64_M 4.01938E-04 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG13
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = cylinder
i_number_region = 11
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Fuel_insul (N)
! ============================================================
!
i_externalspectrum(1)= 14 14 14 14 14
14 14 14 14 14
14
t_composition(:, 1)= CR50_7 CR50_N 8.17447E-04 450.00
CR52_7 CR52_N 1.57642E-02 450.00
CR53_7 CR53_N 1.78749E-03 450.00
CR54_7 CR54_N 4.44937E-04 450.00
FE54_7 FE54_N 3.48116E-03 450.00
FE56_7 FE56_N 5.46464E-02 450.00
FE57_7 FE57_N 1.26199E-03 450.00
FE58_7 FE58_N 1.67947E-04 450.00
NI58_7 NI58_N 6.80774E-03 450.00
NI60_7 NI60_N 2.62236E-03 450.00
NI61_7 NI61_N 1.13987E-04 450.00
NI62_7 NI62_N 3.63455E-04 450.00
NI64_7 NI64_N 9.25606E-05 450.00
t_composition(:, 2)= B10__7 B10__N 1.32047E-02 450.00
B11__7 B11__N 5.31509E-02 450.00
C____7 C12__N 1.65886E-02 450.00
t_composition(:, 3)= CR50_7 CR50_N 6.90859E-04 450.00
CR52_7 CR52_N 1.33222E-02 450.00
CR53_7 CR53_N 1.51071E-03 450.00
CR54_7 CR54_N 3.76040E-04 450.00
FE54_7 FE54_N 3.41037E-03 450.00
FE56_7 FE56_N 5.35351E-02 450.00
FE57_7 FE57_N 1.23633E-03 450.00
FE58_7 FE58_N 1.64532E-04 450.00
MO1007 MO100N 1.22044E-04 450.00
MO92_7 MO92_N 1.88080E-04 450.00
MO94_7 MO94_N 1.17230E-04 450.00
MO95_7 MO95_N 2.01769E-04 450.00
MO96_7 MO96_N 2.11398E-04 450.00
MO97_7 MO97_N 1.21032E-04 450.00
MO98_7 MO98_N 3.05815E-04 450.00
NI58_7 NI58_N 7.61491E-03 450.00
NI60_7 NI60_N 2.93327E-03 450.00
NI61_7 NI61_N 1.27504E-04 450.00
NI62_7 NI62_N 4.06546E-04 450.00
NI64_7 NI64_N 1.03540E-04 450.00
t_composition(:, 4)= BE9__7 BE9__N 5.39439E-02 450.00
O16__7 O16__N 5.39439E-02 450.00
CR50_7 CR50_N 1.20548E-04 450.00
CR52_7 CR52_N 2.32460E-03 450.00
CR53_7 CR53_N 2.63605E-04 450.00
CR54_7 CR54_N 6.56154E-05 450.00
FE54_7 FE54_N 5.95077E-04 450.00
FE56_7 FE56_N 9.34136E-03 450.00
FE57_7 FE57_N 2.15727E-04 450.00
FE58_7 FE58_N 2.87093E-05 450.00
MO1007 MO100N 2.12956E-05 450.00
MO92_7 MO92_N 3.28181E-05 450.00
MO94_7 MO94_N 2.04554E-05 450.00
MO95_7 MO95_N 3.52068E-05 450.00
MO96_7 MO96_N 3.68870E-05 450.00
MO97_7 MO97_N 2.11189E-05 450.00
MO98_7 MO98_N 5.33619E-05 450.00
NI58_7 NI58_N 1.32873E-03 450.00
NI60_7 NI60_N 5.11828E-04 450.00
NI61_7 NI61_N 2.22483E-05 450.00
NI62_7 NI62_N 7.09384E-05 450.00
NI64_7 NI64_N 1.80668E-05 450.00
t_composition(:, 5)= NA23_7 NA23_N 2.39160E-02 450.00
t_composition(:, 6)= CR50_7 CR50_N 8.17351E-04 450.00
CR52_7 CR52_N 1.57623E-02 450.00
CR53_7 CR53_N 1.78728E-03 450.00
CR54_7 CR54_N 4.44885E-04 450.00
FE54_7 FE54_N 3.48075E-03 450.00
FE56_7 FE56_N 5.46400E-02 450.00
FE57_7 FE57_N 1.26184E-03 450.00
FE58_7 FE58_N 1.67927E-04 450.00
NI58_7 NI58_N 6.80694E-03 450.00
NI60_7 NI60_N 2.62205E-03 450.00
NI61_7 NI61_N 1.13973E-04 450.00
NI62_7 NI62_N 3.63413E-04 450.00
NI64_7 NI64_N 9.25497E-05 450.00
t_composition(:, 7)= U235_7 U235_N 4.00448E-05 450.00
U238_7 U238_N 1.81622E-02 450.00
O16__7 O16__N 3.64046E-02 450.00
CR50_7 CR50_N 1.09257E-04 450.00
CR52_7 CR52_N 2.10686E-03 450.00
CR53_7 CR53_N 2.38914E-04 450.00
CR54_7 CR54_N 5.94694E-05 450.00
FE54_7 FE54_N 5.39338E-04 450.00
FE56_7 FE56_N 8.46638E-03 450.00
FE57_7 FE57_N 1.95521E-04 450.00
FE58_7 FE58_N 2.60202E-05 450.00
MO1007 MO100N 1.93009E-05 450.00
MO92_7 MO92_N 2.97441E-05 450.00
MO94_7 MO94_N 1.85394E-05 450.00
MO95_7 MO95_N 3.19091E-05 450.00
MO96_7 MO96_N 3.34319E-05 450.00
MO97_7 MO97_N 1.91407E-05 450.00
MO98_7 MO98_N 4.83636E-05 450.00
NI58_7 NI58_N 1.20427E-03 450.00
NI60_7 NI60_N 4.63886E-04 450.00
NI61_7 NI61_N 2.01643E-05 450.00
NI62_7 NI62_N 6.42938E-05 450.00
NI64_7 NI64_N 1.63745E-05 450.00
t_composition(:, 8)= CR50_7 CR50_N 8.17351E-04 450.00
CR52_7 CR52_N 1.57623E-02 450.00
CR53_7 CR53_N 1.78728E-03 450.00
CR54_7 CR54_N 4.44885E-04 450.00
FE54_7 FE54_N 3.48075E-03 450.00
FE56_7 FE56_N 5.46400E-02 450.00
FE57_7 FE57_N 1.26184E-03 450.00
FE58_7 FE58_N 1.67927E-04 450.00
NI58_7 NI58_N 6.80694E-03 450.00
NI60_7 NI60_N 2.62205E-03 450.00
NI61_7 NI61_N 1.13973E-04 450.00
NI62_7 NI62_N 3.63413E-04 450.00
NI64_7 NI64_N 9.25497E-05 450.00
t_composition(:, 9)= NA23_7 NA23_N 2.39160E-02 450.00
t_composition(:, 10)= CR50_7 CR50_N 8.17351E-04 450.00
CR52_7 CR52_N 1.57623E-02 450.00
CR53_7 CR53_N 1.78728E-03 450.00
CR54_7 CR54_N 4.44885E-04 450.00
FE54_7 FE54_N 3.48075E-03 450.00
FE56_7 FE56_N 5.46400E-02 450.00
FE57_7 FE57_N 1.26184E-03 450.00
FE58_7 FE58_N 1.67927E-04 450.00
NI58_7 NI58_N 6.80694E-03 450.00
NI60_7 NI60_N 2.62205E-03 450.00
NI61_7 NI61_N 1.13973E-04 450.00
NI62_7 NI62_N 3.63413E-04 450.00
NI64_7 NI64_N 9.25497E-05 450.00
t_composition(:, 11)= NA23_7 NA23_N 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 1 1
1 3 1 3 1
1
r_location = 0.80133 1.13331 1.23518 1.66350 1.78141
1.85000 3.32428 3.41451 4.05154 4.21200
4.22537
i_composition = 1 2 3 4 5
6 7 8 9 10
11
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG14
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = cylinder
i_number_region = 11
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Fuel_St (O)
! ============================================================
!
i_externalspectrum(1)= 15 15 15 15 15
15 15 15 15 15
15
t_composition(:, 1)= CR50_7 CR50_O 8.17447E-04 450.00
CR52_7 CR52_O 1.57642E-02 450.00
CR53_7 CR53_O 1.78749E-03 450.00
CR54_7 CR54_O 4.44937E-04 450.00
FE54_7 FE54_O 3.48116E-03 450.00
FE56_7 FE56_O 5.46464E-02 450.00
FE57_7 FE57_O 1.26199E-03 450.00
FE58_7 FE58_O 1.67947E-04 450.00
NI58_7 NI58_O 6.80774E-03 450.00
NI60_7 NI60_O 2.62236E-03 450.00
NI61_7 NI61_O 1.13987E-04 450.00
NI62_7 NI62_O 3.63455E-04 450.00
NI64_7 NI64_O 9.25606E-05 450.00
t_composition(:, 2)= B10__7 B10__O 1.32047E-02 450.00
B11__7 B11__O 5.31509E-02 450.00
C____7 C12__O 1.65886E-02 450.00
t_composition(:, 3)= CR50_7 CR50_O 6.90859E-04 450.00
CR52_7 CR52_O 1.33222E-02 450.00
CR53_7 CR53_O 1.51071E-03 450.00
CR54_7 CR54_O 3.76040E-04 450.00
FE54_7 FE54_O 3.41037E-03 450.00
FE56_7 FE56_O 5.35351E-02 450.00
FE57_7 FE57_O 1.23633E-03 450.00
FE58_7 FE58_O 1.64532E-04 450.00
MO1007 MO100O 1.22044E-04 450.00
MO92_7 MO92_O 1.88080E-04 450.00
MO94_7 MO94_O 1.17230E-04 450.00
MO95_7 MO95_O 2.01769E-04 450.00
MO96_7 MO96_O 2.11398E-04 450.00
MO97_7 MO97_O 1.21032E-04 450.00
MO98_7 MO98_O 3.05815E-04 450.00
NI58_7 NI58_O 7.61491E-03 450.00
NI60_7 NI60_O 2.93327E-03 450.00
NI61_7 NI61_O 1.27504E-04 450.00
NI62_7 NI62_O 4.06546E-04 450.00
NI64_7 NI64_O 1.03540E-04 450.00
t_composition(:, 4)= BE9__7 BE9__O 5.39439E-02 450.00
O16__7 O16__O 5.39439E-02 450.00
CR50_7 CR50_O 1.20548E-04 450.00
CR52_7 CR52_O 2.32460E-03 450.00
CR53_7 CR53_O 2.63605E-04 450.00
CR54_7 CR54_O 6.56154E-05 450.00
FE54_7 FE54_O 5.95077E-04 450.00
FE56_7 FE56_O 9.34136E-03 450.00
FE57_7 FE57_O 2.15727E-04 450.00
FE58_7 FE58_O 2.87093E-05 450.00
MO1007 MO100O 2.12956E-05 450.00
MO92_7 MO92_O 3.28181E-05 450.00
MO94_7 MO94_O 2.04554E-05 450.00
MO95_7 MO95_O 3.52068E-05 450.00
MO96_7 MO96_O 3.68870E-05 450.00
MO97_7 MO97_O 2.11189E-05 450.00
MO98_7 MO98_O 5.33619E-05 450.00
NI58_7 NI58_O 1.32873E-03 450.00
NI60_7 NI60_O 5.11828E-04 450.00
NI61_7 NI61_O 2.22483E-05 450.00
NI62_7 NI62_O 7.09384E-05 450.00
NI64_7 NI64_O 1.80668E-05 450.00
t_composition(:, 5)= NA23_7 NA23_O 2.39160E-02 450.00
t_composition(:, 6)= CR50_7 CR50_O 8.17351E-04 450.00
CR52_7 CR52_O 1.57623E-02 450.00
CR53_7 CR53_O 1.78728E-03 450.00
CR54_7 CR54_O 4.44885E-04 450.00
FE54_7 FE54_O 3.48075E-03 450.00
FE56_7 FE56_O 5.46400E-02 450.00
FE57_7 FE57_O 1.26184E-03 450.00
FE58_7 FE58_O 1.67927E-04 450.00
NI58_7 NI58_O 6.80694E-03 450.00
NI60_7 NI60_O 2.62205E-03 450.00
NI61_7 NI61_O 1.13973E-04 450.00
NI62_7 NI62_O 3.63413E-04 450.00
NI64_7 NI64_O 9.25497E-05 450.00
t_composition(:, 7)= PU2397 PU239O 3.32051E-03 450.00
PU2407 PU240O 2.98177E-04 450.00
U235_7 U235_O 3.12105E-05 450.00
U238_7 U238_O 1.41554E-02 450.00
O16__7 O16__O 3.55742E-02 450.00
CR50_7 CR50_O 1.09257E-04 450.00
CR52_7 CR52_O 2.10686E-03 450.00
CR53_7 CR53_O 2.38914E-04 450.00
CR54_7 CR54_O 5.94694E-05 450.00
FE54_7 FE54_O 5.39338E-04 450.00
FE56_7 FE56_O 8.46638E-03 450.00
FE57_7 FE57_O 1.95521E-04 450.00
FE58_7 FE58_O 2.60202E-05 450.00
MO1007 MO100O 1.93009E-05 450.00
MO92_7 MO92_O 2.97441E-05 450.00
MO94_7 MO94_O 1.85394E-05 450.00
MO95_7 MO95_O 3.19091E-05 450.00
MO96_7 MO96_O 3.34319E-05 450.00
MO97_7 MO97_O 1.91407E-05 450.00
MO98_7 MO98_O 4.83636E-05 450.00
NI58_7 NI58_O 1.20427E-03 450.00
NI60_7 NI60_O 4.63886E-04 450.00
NI61_7 NI61_O 2.01643E-05 450.00
NI62_7 NI62_O 6.42938E-05 450.00
NI64_7 NI64_O 1.63745E-05 450.00
t_composition(:, 8)= CR50_7 CR50_O 8.17351E-04 450.00
CR52_7 CR52_O 1.57623E-02 450.00
CR53_7 CR53_O 1.78728E-03 450.00
CR54_7 CR54_O 4.44885E-04 450.00
FE54_7 FE54_O 3.48075E-03 450.00
FE56_7 FE56_O 5.46400E-02 450.00
FE57_7 FE57_O 1.26184E-03 450.00
FE58_7 FE58_O 1.67927E-04 450.00
NI58_7 NI58_O 6.80694E-03 450.00
NI60_7 NI60_O 2.62205E-03 450.00
NI61_7 NI61_O 1.13973E-04 450.00
NI62_7 NI62_O 3.63413E-04 450.00
NI64_7 NI64_O 9.25497E-05 450.00
t_composition(:, 9)= NA23_7 NA23_O 2.39160E-02 450.00
t_composition(:, 10)= CR50_7 CR50_O 8.17351E-04 450.00
CR52_7 CR52_O 1.57623E-02 450.00
CR53_7 CR53_O 1.78728E-03 450.00
CR54_7 CR54_O 4.44885E-04 450.00
FE54_7 FE54_O 3.48075E-03 450.00
FE56_7 FE56_O 5.46400E-02 450.00
FE57_7 FE57_O 1.26184E-03 450.00
FE58_7 FE58_O 1.67927E-04 450.00
NI58_7 NI58_O 6.80694E-03 450.00
NI60_7 NI60_O 2.62205E-03 450.00
NI61_7 NI61_O 1.13973E-04 450.00
NI62_7 NI62_O 3.63413E-04 450.00
NI64_7 NI64_O 9.25497E-05 450.00
t_composition(:, 11)= NA23_7 NA23_O 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 1 1
1 3 1 3 1
1
r_location = 0.80133 1.13331 1.23518 1.66350 1.78141
1.85000 3.32428 3.41451 4.05154 4.21200
4.22537
i_composition = 1 2 3 4 5
6 7 8 9 10
11
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG15
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = mixture
i_number_region = 1
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! AFA_6_1_Spring_Void (P)
! ============================================================
!
i_externalspectrum(1)= 16
t_composition(:, 1)= O16__7 O16__P 3.75126E-03 450.00
NA23_7 NA23_P 7.06638E-03 450.00
CR50_7 CR50_P 1.93740E-04 450.00
CR52_7 CR52_P 3.73613E-03 450.00
CR53_7 CR53_P 4.23649E-04 450.00
CR54_7 CR54_P 1.05453E-04 450.00
FE54_7 FE54_P 8.68710E-04 450.00
FE56_7 FE56_P 1.36368E-02 450.00
FE57_7 FE57_P 3.14925E-04 450.00
FE58_7 FE58_P 4.19105E-05 450.00
MO1007 MO100P 1.13768E-05 450.00
MO92_7 MO92_P 1.75326E-05 450.00
MO94_7 MO94_P 1.09280E-05 450.00
MO95_7 MO95_P 1.88087E-05 450.00
MO96_7 MO96_P 1.97063E-05 450.00
MO97_7 MO97_P 1.12825E-05 450.00
MO98_7 MO98_P 2.85077E-05 450.00
NI58_7 NI58_P 1.78699E-03 450.00
NI60_7 NI60_P 6.88354E-04 450.00
NI61_7 NI61_P 2.99211E-05 450.00
NI62_7 NI62_P 9.54048E-05 450.00
NI64_7 NI64_P 2.42971E-05 450.00
BE9__7 BE9__P 3.75126E-03 450.00
B10__7 B10__P 4.75018E-04 450.00
B11__7 B11__P 1.91202E-03 450.00
C____7 C12__P 5.96748E-04 450.00
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG16
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = cylinder
i_number_region = 9
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! GA_6_2_Fuel_St (Q)
! ============================================================
!
i_externalspectrum(1)= 17 17 17 17 17
17 17 17 17
t_composition(:, 1)= BE9__7 BE9__Q 5.39439E-02 450.00
O16__7 O16__Q 5.39439E-02 450.00
CR50_7 CR50_Q 1.20548E-04 450.00
CR52_7 CR52_Q 2.32460E-03 450.00
CR53_7 CR53_Q 2.63605E-04 450.00
CR54_7 CR54_Q 6.56154E-05 450.00
FE54_7 FE54_Q 5.95077E-04 450.00
FE56_7 FE56_Q 9.34136E-03 450.00
FE57_7 FE57_Q 2.15727E-04 450.00
FE58_7 FE58_Q 2.87093E-05 450.00
MO1007 MO100Q 2.12956E-05 450.00
MO92_7 MO92_Q 3.28181E-05 450.00
MO94_7 MO94_Q 2.04554E-05 450.00
MO95_7 MO95_Q 3.52068E-05 450.00
MO96_7 MO96_Q 3.68870E-05 450.00
MO97_7 MO97_Q 2.11189E-05 450.00
MO98_7 MO98_Q 5.33619E-05 450.00
NI58_7 NI58_Q 1.32873E-03 450.00
NI60_7 NI60_Q 5.11828E-04 450.00
NI61_7 NI61_Q 2.22483E-05 450.00
NI62_7 NI62_Q 7.09384E-05 450.00
NI64_7 NI64_Q 1.80668E-05 450.00
t_composition(:, 2)= NA23_7 NA23_Q 2.39160E-02 450.00
t_composition(:, 3)= CR50_7 CR50_Q 8.17351E-04 450.00
CR52_7 CR52_Q 1.57623E-02 450.00
CR53_7 CR53_Q 1.78728E-03 450.00
CR54_7 CR54_Q 4.44885E-04 450.00
FE54_7 FE54_Q 3.48075E-03 450.00
FE56_7 FE56_Q 5.46400E-02 450.00
FE57_7 FE57_Q 1.26184E-03 450.00
FE58_7 FE58_Q 1.67927E-04 450.00
NI58_7 NI58_Q 6.80694E-03 450.00
NI60_7 NI60_Q 2.62205E-03 450.00
NI61_7 NI61_Q 1.13973E-04 450.00
NI62_7 NI62_Q 3.63413E-04 450.00
NI64_7 NI64_Q 9.25497E-05 450.00
t_composition(:, 4)= PU2397 PU239Q 3.32051E-03 450.00
PU2407 PU240Q 2.98177E-04 450.00
U235_7 U235_Q 3.12105E-05 450.00
U238_7 U238_Q 1.41554E-02 450.00
O16__7 O16__Q 3.55742E-02 450.00
CR50_7 CR50_Q 1.09257E-04 450.00
CR52_7 CR52_Q 2.10686E-03 450.00
CR53_7 CR53_Q 2.38914E-04 450.00
CR54_7 CR54_Q 5.94694E-05 450.00
FE54_7 FE54_Q 5.39338E-04 450.00
FE56_7 FE56_Q 8.46638E-03 450.00
FE57_7 FE57_Q 1.95521E-04 450.00
FE58_7 FE58_Q 2.60202E-05 450.00
MO1007 MO100Q 1.93009E-05 450.00
MO92_7 MO92_Q 2.97441E-05 450.00
MO94_7 MO94_Q 1.85394E-05 450.00
MO95_7 MO95_Q 3.19091E-05 450.00
MO96_7 MO96_Q 3.34319E-05 450.00
MO97_7 MO97_Q 1.91407E-05 450.00
MO98_7 MO98_Q 4.83636E-05 450.00
NI58_7 NI58_Q 1.20427E-03 450.00
NI60_7 NI60_Q 4.63886E-04 450.00
NI61_7 NI61_Q 2.01643E-05 450.00
NI62_7 NI62_Q 6.42938E-05 450.00
NI64_7 NI64_Q 1.63745E-05 450.00
t_composition(:, 5)= PU2397 PU239Q 4.43913E-03 450.00
PU2407 PU240Q 3.98634E-04 450.00
U235_7 U235_Q 2.85195E-05 450.00
U238_7 U238_Q 1.29349E-02 450.00
O16__7 O16__Q 3.55539E-02 450.00
CR50_7 CR50_Q 1.09257E-04 450.00
CR52_7 CR52_Q 2.10686E-03 450.00
CR53_7 CR53_Q 2.38914E-04 450.00
CR54_7 CR54_Q 5.94694E-05 450.00
FE54_7 FE54_Q 5.39338E-04 450.00
FE56_7 FE56_Q 8.46638E-03 450.00
FE57_7 FE57_Q 1.95521E-04 450.00
FE58_7 FE58_Q 2.60202E-05 450.00
MO1007 MO100Q 1.93009E-05 450.00
MO92_7 MO92_Q 2.97441E-05 450.00
MO94_7 MO94_Q 1.85394E-05 450.00
MO95_7 MO95_Q 3.19091E-05 450.00
MO96_7 MO96_Q 3.34319E-05 450.00
MO97_7 MO97_Q 1.91407E-05 450.00
MO98_7 MO98_Q 4.83636E-05 450.00
NI58_7 NI58_Q 1.20427E-03 450.00
NI60_7 NI60_Q 4.63886E-04 450.00
NI61_7 NI61_Q 2.01643E-05 450.00
NI62_7 NI62_Q 6.42938E-05 450.00
NI64_7 NI64_Q 1.63745E-05 450.00
t_composition(:, 6)= CR50_7 CR50_Q 8.17351E-04 450.00
CR52_7 CR52_Q 1.57623E-02 450.00
CR53_7 CR53_Q 1.78728E-03 450.00
CR54_7 CR54_Q 4.44885E-04 450.00
FE54_7 FE54_Q 3.48075E-03 450.00
FE56_7 FE56_Q 5.46400E-02 450.00
FE57_7 FE57_Q 1.26184E-03 450.00
FE58_7 FE58_Q 1.67927E-04 450.00
NI58_7 NI58_Q 6.80694E-03 450.00
NI60_7 NI60_Q 2.62205E-03 450.00
NI61_7 NI61_Q 1.13973E-04 450.00
NI62_7 NI62_Q 3.63413E-04 450.00
NI64_7 NI64_Q 9.25497E-05 450.00
t_composition(:, 7)= NA23_7 NA23_Q 2.39160E-02 450.00
t_composition(:, 8)= CR50_7 CR50_Q 8.17351E-04 450.00
CR52_7 CR52_Q 1.57623E-02 450.00
CR53_7 CR53_Q 1.78728E-03 450.00
CR54_7 CR54_Q 4.44885E-04 450.00
FE54_7 FE54_Q 3.48075E-03 450.00
FE56_7 FE56_Q 5.46400E-02 450.00
FE57_7 FE57_Q 1.26184E-03 450.00
FE58_7 FE58_Q 1.67927E-04 450.00
NI58_7 NI58_Q 6.80694E-03 450.00
NI60_7 NI60_Q 2.62205E-03 450.00
NI61_7 NI61_Q 1.13973E-04 450.00
NI62_7 NI62_Q 3.63413E-04 450.00
NI64_7 NI64_Q 9.25497E-05 450.00
t_composition(:, 9)= NA23_7 NA23_Q 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 3 2
1 3 1 1
r_location = 1.11426 1.28366 1.37726 2.82834 3.32428
3.41451 4.05154 4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8 9
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG17
!
! ============================================================
!
cat > input << EOF
\$library
c_mcclibdir ="$lib_mcclibdir"
c_pwlibdir ="$lib_pwlibdir"
c_twodantexe ="$exe_twodant"
/
\$control
c_group_structure = ANL33
c_externalspectrum_ufg = rzmflx
c_geometry_type = cylinder
i_number_region = 12
i_scattering_order = 3
l_twodant = F
l_pendf = T
/
\$material
!
! ============================================================
! GA_AFA_6_1_1_Fuel_St (R)
! ============================================================
!
i_externalspectrum(1)= 18 18 18 18 18
18 18 18 18 18
18 18
t_composition(:, 1)= CR50_7 CR50_R 8.17447E-04 450.00
CR52_7 CR52_R 1.57642E-02 450.00
CR53_7 CR53_R 1.78749E-03 450.00
CR54_7 CR54_R 4.44937E-04 450.00
FE54_7 FE54_R 3.48116E-03 450.00
FE56_7 FE56_R 5.46464E-02 450.00
FE57_7 FE57_R 1.26199E-03 450.00
FE58_7 FE58_R 1.67947E-04 450.00
NI58_7 NI58_R 6.80774E-03 450.00
NI60_7 NI60_R 2.62236E-03 450.00
NI61_7 NI61_R 1.13987E-04 450.00
NI62_7 NI62_R 3.63455E-04 450.00
NI64_7 NI64_R 9.25606E-05 450.00
t_composition(:, 2)= B10__7 B10__R 1.32047E-02 450.00
B11__7 B11__R 5.31509E-02 450.00
C____7 C12__R 1.65886E-02 450.00
t_composition(:, 3)= CR50_7 CR50_R 6.90859E-04 450.00
CR52_7 CR52_R 1.33222E-02 450.00
CR53_7 CR53_R 1.51071E-03 450.00
CR54_7 CR54_R 3.76040E-04 450.00
FE54_7 FE54_R 3.41037E-03 450.00
FE56_7 FE56_R 5.35351E-02 450.00
FE57_7 FE57_R 1.23633E-03 450.00
FE58_7 FE58_R 1.64532E-04 450.00
MO1007 MO100R 1.22044E-04 450.00
MO92_7 MO92_R 1.88080E-04 450.00
MO94_7 MO94_R 1.17230E-04 450.00
MO95_7 MO95_R 2.01769E-04 450.00
MO96_7 MO96_R 2.11398E-04 450.00
MO97_7 MO97_R 1.21032E-04 450.00
MO98_7 MO98_R 3.05815E-04 450.00
NI58_7 NI58_R 7.61491E-03 450.00
NI60_7 NI60_R 2.93327E-03 450.00
NI61_7 NI61_R 1.27504E-04 450.00
NI62_7 NI62_R 4.06546E-04 450.00
NI64_7 NI64_R 1.03540E-04 450.00
t_composition(:, 4)= BE9__7 BE9__R 5.39439E-02 450.00
O16__7 O16__R 5.39439E-02 450.00
CR50_7 CR50_R 1.20548E-04 450.00
CR52_7 CR52_R 2.32460E-03 450.00
CR53_7 CR53_R 2.63605E-04 450.00
CR54_7 CR54_R 6.56154E-05 450.00
FE54_7 FE54_R 5.95077E-04 450.00
FE56_7 FE56_R 9.34136E-03 450.00
FE57_7 FE57_R 2.15727E-04 450.00
FE58_7 FE58_R 2.87093E-05 450.00
MO1007 MO100R 2.12956E-05 450.00
MO92_7 MO92_R 3.28181E-05 450.00
MO94_7 MO94_R 2.04554E-05 450.00
MO95_7 MO95_R 3.52068E-05 450.00
MO96_7 MO96_R 3.68870E-05 450.00
MO97_7 MO97_R 2.11189E-05 450.00
MO98_7 MO98_R 5.33619E-05 450.00
NI58_7 NI58_R 1.32873E-03 450.00
NI60_7 NI60_R 5.11828E-04 450.00
NI61_7 NI61_R 2.22483E-05 450.00
NI62_7 NI62_R 7.09384E-05 450.00
NI64_7 NI64_R 1.80668E-05 450.00
t_composition(:, 5)= NA23_7 NA23_R 2.39160E-02 450.00
t_composition(:, 6)= CR50_7 CR50_R 8.17351E-04 450.00
CR52_7 CR52_R 1.57623E-02 450.00
CR53_7 CR53_R 1.78728E-03 450.00
CR54_7 CR54_R 4.44885E-04 450.00
FE54_7 FE54_R 3.48075E-03 450.00
FE56_7 FE56_R 5.46400E-02 450.00
FE57_7 FE57_R 1.26184E-03 450.00
FE58_7 FE58_R 1.67927E-04 450.00
NI58_7 NI58_R 6.80694E-03 450.00
NI60_7 NI60_R 2.62205E-03 450.00
NI61_7 NI61_R 1.13973E-04 450.00
NI62_7 NI62_R 3.63413E-04 450.00
NI64_7 NI64_R 9.25497E-05 450.00
t_composition(:, 7)= PU2397 PU239R 3.32051E-03 450.00
PU2407 PU240R 2.98177E-04 450.00
U235_7 U235_R 3.12105E-05 450.00
U238_7 U238_R 1.41554E-02 450.00
O16__7 O16__R 3.55742E-02 450.00
CR50_7 CR50_R 1.09257E-04 450.00
CR52_7 CR52_R 2.10686E-03 450.00
CR53_7 CR53_R 2.38914E-04 450.00
CR54_7 CR54_R 5.94694E-05 450.00
FE54_7 FE54_R 5.39338E-04 450.00
FE56_7 FE56_R 8.46638E-03 450.00
FE57_7 FE57_R 1.95521E-04 450.00
FE58_7 FE58_R 2.60202E-05 450.00
MO1007 MO100R 1.93009E-05 450.00
MO92_7 MO92_R 2.97441E-05 450.00
MO94_7 MO94_R 1.85394E-05 450.00
MO95_7 MO95_R 3.19091E-05 450.00
MO96_7 MO96_R 3.34319E-05 450.00
MO97_7 MO97_R 1.91407E-05 450.00
MO98_7 MO98_R 4.83636E-05 450.00
NI58_7 NI58_R 1.20427E-03 450.00
NI60_7 NI60_R 4.63886E-04 450.00
NI61_7 NI61_R 2.01643E-05 450.00
NI62_7 NI62_R 6.42938E-05 450.00
NI64_7 NI64_R 1.63745E-05 450.00
t_composition(:, 8)= PU2397 PU239R 4.43913E-03 450.00
PU2407 PU240R 3.98634E-04 450.00
U235_7 U235_R 2.85195E-05 450.00
U238_7 U238_R 1.29349E-02 450.00
O16__7 O16__R 3.55539E-02 450.00
CR50_7 CR50_R 1.09257E-04 450.00
CR52_7 CR52_R 2.10686E-03 450.00
CR53_7 CR53_R 2.38914E-04 450.00
CR54_7 CR54_R 5.94694E-05 450.00
FE54_7 FE54_R 5.39338E-04 450.00
FE56_7 FE56_R 8.46638E-03 450.00
FE57_7 FE57_R 1.95521E-04 450.00
FE58_7 FE58_R 2.60202E-05 450.00
MO1007 MO100R 1.93009E-05 450.00
MO92_7 MO92_R 2.97441E-05 450.00
MO94_7 MO94_R 1.85394E-05 450.00
MO95_7 MO95_R 3.19091E-05 450.00
MO96_7 MO96_R 3.34319E-05 450.00
MO97_7 MO97_R 1.91407E-05 450.00
MO98_7 MO98_R 4.83636E-05 450.00
NI58_7 NI58_R 1.20427E-03 450.00
NI60_7 NI60_R 4.63886E-04 450.00
NI61_7 NI61_R 2.01643E-05 450.00
NI62_7 NI62_R 6.42938E-05 450.00
NI64_7 NI64_R 1.63745E-05 450.00
t_composition(:, 9)= CR50_7 CR50_R 8.17351E-04 450.00
CR52_7 CR52_R 1.57623E-02 450.00
CR53_7 CR53_R 1.78728E-03 450.00
CR54_7 CR54_R 4.44885E-04 450.00
FE54_7 FE54_R 3.48075E-03 450.00
FE56_7 FE56_R 5.46400E-02 450.00
FE57_7 FE57_R 1.26184E-03 450.00
FE58_7 FE58_R 1.67927E-04 450.00
NI58_7 NI58_R 6.80694E-03 450.00
NI60_7 NI60_R 2.62205E-03 450.00
NI61_7 NI61_R 1.13973E-04 450.00
NI62_7 NI62_R 3.63413E-04 450.00
NI64_7 NI64_R 9.25497E-05 450.00
t_composition(:, 10)= NA23_7 NA23_R 2.39160E-02 450.00
t_composition(:, 11)= CR50_7 CR50_R 8.17351E-04 450.00
CR52_7 CR52_R 1.57623E-02 450.00
CR53_7 CR53_R 1.78728E-03 450.00
CR54_7 CR54_R 4.44885E-04 450.00
FE54_7 FE54_R 3.48075E-03 450.00
FE56_7 FE56_R 5.46400E-02 450.00
FE57_7 FE57_R 1.26184E-03 450.00
FE58_7 FE58_R 1.67927E-04 450.00
NI58_7 NI58_R 6.80694E-03 450.00
NI60_7 NI60_R 2.62205E-03 450.00
NI61_7 NI61_R 1.13973E-04 450.00
NI62_7 NI62_R 3.63413E-04 450.00
NI64_7 NI64_R 9.25497E-05 450.00
t_composition(:, 12)= NA23_7 NA23_R 2.39160E-02 450.00
/
\$geometry
c_boundary_condition = reflective
i_mesh = 1 1 1 1 1
1 3 1 1 3
1 1
r_location = 0.80133 1.13331 1.23518 1.66350 1.78141
1.85000 3.08628 3.32428 3.41451 4.05154
4.21200 4.22537
i_composition = 1 2 3 4 5
6 7 8 9 10
11 12
/
\$output
l_isotxs_macroxs = F
l_isotxs_ascii = T
/
EOF
$exe_mcc3
mv ISOTXS.merged ISOTXS.REG18
!
! ============================================================
!
cat > input << EOF
\$control
c_isotxs_conversion = bin2asc
/
\$output
c_isotxs_file = ISOTXS.REG01
ISOTXS.REG02
ISOTXS.REG03
ISOTXS.REG04
ISOTXS.REG05
ISOTXS.REG06
ISOTXS.REG07
ISOTXS.REG08
ISOTXS.REG09
ISOTXS.REG10
ISOTXS.REG11
ISOTXS.REG12
ISOTXS.REG13
ISOTXS.REG14
ISOTXS.REG15
ISOTXS.REG16
ISOTXS.REG17
ISOTXS.REG18
/
EOF
$exe_mcc3
mv ISOTXS.merged $0.ISOTXS.33g.bin
mv ISOTXS.merged.ascii $0.ISOTXS.33g.ascii
rm ISOTXS.* input* output.* pw* out.*
