SEFOR Mesh Model for Core I-E
The MOOSE Reactor Module was used to set up geometry for Griffin calculations. To accurately model the heterogeneous SEFOR core, several specialized mesh generators within the Reactor Module were utilized (Shemon et al., 2023). As depicted in Listing 1, the cylindrical reactor components, specifically fuel pins, insulators, support-rods, and absorber pins, were generated using the AdvancedConcentricCircleGenerator mesh generator.
Listing 1: MOOSE Reactor Module input for modeling a single fuel pin.
[Mesh]
[std_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '110 111 112 113'
preserve_volumes = on
[]
[]Listing 2 shows that the HexagonConcentricCircleAdaptiveBoundaryMeshGenerator was used for the central tightener pin and its surrounding duct, which provides adaptive boundary meshing optimized for hexagonal structures.
Listing 2: MOOSE Reactor Module input for forming the central rod and its tightener.
[Mesh]
[std_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '114 115 116 117'
background_intervals = 1
background_block_ids = '118'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '119'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
[]Following this, the fuel assemblies, including their ducts and assembly gaps, were defined using the FlexiblePatternGenerator mesh generator as illustrated in Listing 3, which supports different assembly types. The generated mesh of the different types of fuel assemblies is shown in Figure 1 .
Listing 3: MOOSE Reactor Module input for forming a standard fuel assembly.
[std_assm]
type = FlexiblePatternGenerator
inputs = 'std_fuel_pin std_wire std_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 0 0;
1 1 1 1 1 1'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '121'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '2'
[]
[std_assm_w_duct]
type = FlexiblePatternGenerator
inputs = 'std_assm'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '122'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[std_assm_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'std_assm_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '123'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 2 Guinea Pigs
###############################################################################
## Fuel pin

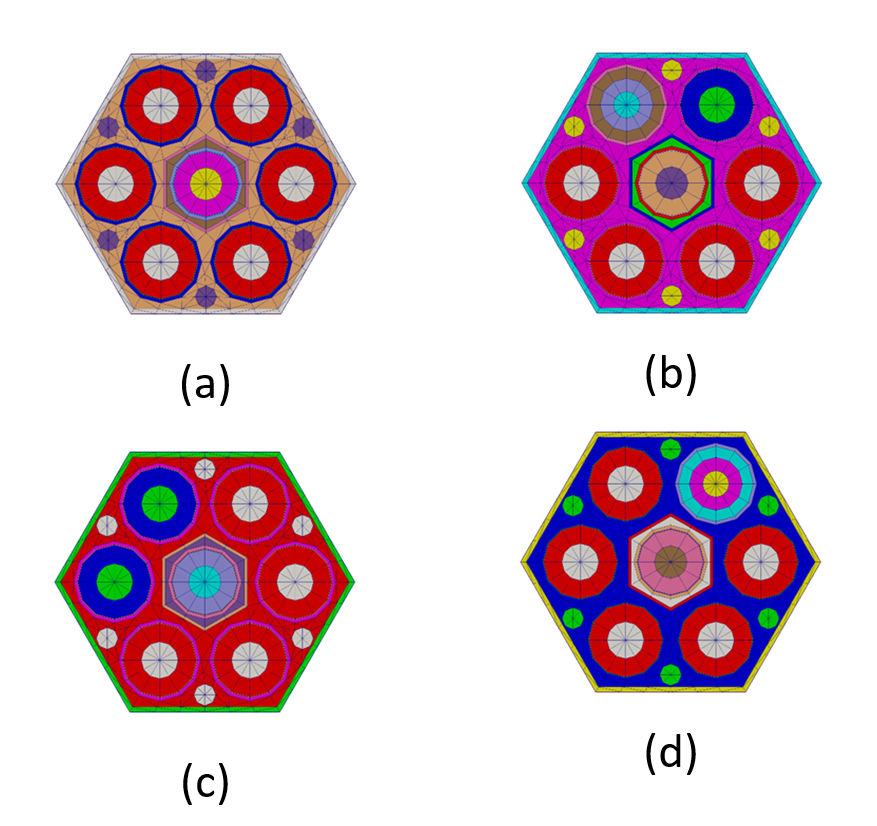

Figure 1: Mesh model of SEFOR Core I-E fuel assemblies: (a) Standard Assembly (SA), (b) SA with a GP rod and a B<sub>4<sub>C rod, (c) SA with 2 GP rods, and (d) AFA
These assemblies were arranged into the complete reactor core layout using the PatternedHexMeshGenerator mesh generator as illustrated in Listing 4.
Listing 4: MOOSE Reactor Module input for forming the fuel core lattice from the assembly meshes.
[Mesh]
[pattern_core]
type = PatternedHexMeshGenerator
inputs = 'fred_w_duct_gap std_assm_w_duct_gap assm12_w_duct_gap
assm13_w_duct_gap assm21_w_duct_gap assm23_w_duct_gap
assm24_w_duct_gap assm25_w_duct_gap assm41_w_duct_gap
assm42_w_duct_gap assm43_w_duct_gap dummy'
pattern_boundary = none
generate_core_metadata = true
pattern = ' 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 1 1 1 7 1 1 11 11 11;
11 11 1 1 4 1 3 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 1 1 5 1 11 11;
11 11 1 1 1 1 1 5 1 9 1 1 1 11 11;
11 11 11 1 1 8 1 1 1 1 1 6 1 11 11 11;
11 11 11 1 4 1 1 1 0 1 1 1 1 1 11 11 11;
11 11 11 1 1 1 1 1 1 4 1 1 1 11 11 11;
11 11 1 1 2 1 5 1 1 1 1 7 1 11 11;
11 11 1 1 1 1 1 10 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 5 1 1 11 11;
11 11 11 1 1 4 1 1 1 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11'
[]
[]Additionally, peripheral reactor regions such as the downcomer, outer vessel, radial reflector, and radial shield were integrated with the core using the PeripheralRingMeshGenerator mesh generator shown in Listing 5. At this stage, the reactor mesh represented a 2-D configuration as illustrated in Figure 2 (a).
Listing 5: MOOSE Reactor Module input for forming radial layers outside the fuel lattice.
[del_dummy]
type = BlockDeletionGenerator
input = 'pattern_core'
block = '999'
new_boundary = 10000
[]
[downcomer_iv]
type = PeripheralRingMeshGenerator
input = 'del_dummy'
peripheral_layer_num = 2
peripheral_ring_radius = 53.486
peripheral_ring_block_id = '601'
input_mesh_external_boundary = 10000
[]
[downcomer_ov]
type = PeripheralRingMeshGenerator
input = 'downcomer_iv'
peripheral_layer_num = 1
peripheral_ring_radius = 58.4860
peripheral_ring_block_id = '602'
input_mesh_external_boundary = 10000
[]
[radial_reflector]
type = PeripheralRingMeshGenerator
input = 'downcomer_ov'
peripheral_layer_num = 2
peripheral_ring_radius = 73.5530
peripheral_ring_block_id = '603'
input_mesh_external_boundary = 10000
[]
[radial_shield]
type = PeripheralRingMeshGenerator
input = 'radial_reflector'
peripheral_layer_num = 1
peripheral_ring_radius = 87.0340
peripheral_ring_block_id = '604'
input_mesh_external_boundary = 10000
[]

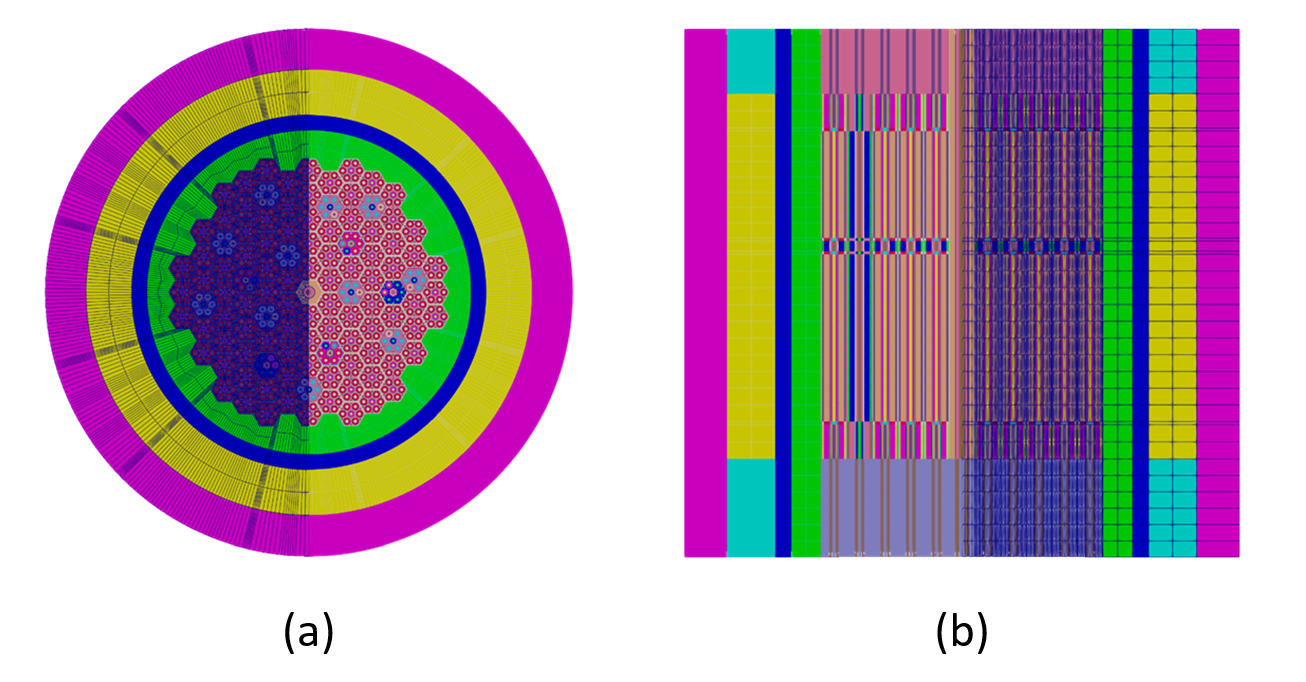

Figure 2: Mesh model of SEFOR Core I-E with (a) X-Y view (b) X-Z view
To expand this into a complete 3-D reactor geometry, the AdvancedExtruderGenerator mesh generator was employed as shown in Listing 6, which allowed flexible axial extrusion of the existing 2-D mesh into the full axial height. This mesh generator also offers functionality to interchange or redefine axial regions, to enable accurate representation of complex axial geometry variations in the SEFOR reactor core . The 3-D axial core mesh depicted Core I-E in Figure 2 (b).
Listing 6: MOOSE Reactor Module input for extruding the 2D radial core into a 3D, assigning axial segments as needed.
[Mesh]
[core_3d]
type = AdvancedExtruderGenerator
input = 'radial_shield'
heights = '30.745 10.7870 0.9525 52.4291 0.9525 3.2820 0.9525 33.5227 0.7775 0.0962 0.0788 10.7082 0.0788 20.2390'
num_layers = '6 2 1 10 1 1 1 7 1 1 1 2 1 4'
direction = '0 0 1'
# First axial to last axial, separated by ;
subdomain_swaps = ' 110 1001 111 1002 112 1002 113 1002 114 1001 115 1002 116 1002 117 1002 118 1002 119 1002 120 1001 121 1001 122 1001 123 1001
210 1001 211 1002 212 1001 213 1002 214 1002 215 1002 216 1001 217 1002 218 1002 219 1002 220 1002 221 1002 222 1001 223 1001 224 1001 225 1001
310 1001 311 1002 312 1002 313 1002 314 1001 315 1002 316 1002 317 1002 318 1001 319 1002 320 1002 321 1002 322 1002 323 1002 324 1001 325 1001 326 1001 327 1001
410 1001 411 1002 412 1001 413 1002 414 1002 415 1002 416 1001 417 1002 418 1002 419 1002 420 1001 421 1002 422 1002 423 1002 424 1002 425 1002 426 1001 427 1001 428 1001 429 1001
510 1001 511 1002 512 1002 513 1001 514 1001 515 1001
603 605;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 150 111 151 112 152 113 153 114 154 115 155 116 156 117 157 118 158 119 159 120 160 121 161 122 162 123 163
210 150 211 151 212 150 213 151 214 152 215 153 216 154 217 155 218 156 219 157 220 158 221 159 222 160 223 161 224 162 225 163
310 350 311 351 312 352 313 353 314 354 315 355 316 356 317 357 318 358 319 359 320 360 321 361 322 362 323 363 324 364 325 365 326 366 327 367
410 350 411 351 412 350 413 351 414 352 415 353 416 354 417 355 418 356 419 357 420 358 421 359 422 360 423 361 424 362 425 363 426 364 427 365 428 366 429 367;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 378 319 379 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 378 421 379 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 2001 319 2002 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 2001 421 2002 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 2001 111 2002 112 2002 113 2002 114 2001 115 2002 116 2002 117 2002 118 2002 119 2002 120 2001 121 2001 122 2001 123 2001
210 2001 211 2002 212 2001 213 2002 214 2002 215 2002 216 2001 217 2002 218 2002 219 2002 220 2002 221 2002 222 2001 223 2001 224 2001 225 2001
310 2001 311 2002 312 2002 313 2002 314 2001 315 2002 316 2002 317 2002 318 2001 319 2002 320 2002 321 2002 322 2002 323 2002 324 2001 325 2001 326 2001 327 2001
410 2001 411 2002 412 2001 413 2002 414 2002 415 2002 416 2001 417 2002 418 2002 419 2002 420 2001 421 2002 422 2002 423 2002 424 2002 425 2002 426 2001 427 2001 428 2001 429 2001
603 605'
top_boundary = 20000
bottom_boundary = 30000
[]
[]References
- Emily Shemon, Yinbin Miao, Shikhar Kumar, Kun Mo, Yeon Sang Jung, Aaron Oaks, Scott Richards, Guillaume Giudicelli, Logan Harbour, and Roy Stogner.
Moose reactor module: an open-source capability for meshing nuclear reactor geometries.
Nuclear Science and Engineering, 197(8):1656–1680, 2023.
URL: https://doi.org/10.1080/00295639.2022.2149231, doi:10.1080/00295639.2022.2149231.[BibTeX]
@article{Shemon2023sefor, author = "Shemon, Emily and Miao, Yinbin and Kumar, Shikhar and Mo, Kun and Jung, Yeon Sang and Oaks, Aaron and Richards, Scott and Giudicelli, Guillaume and Harbour, Logan and Stogner, Roy", title = "MOOSE Reactor Module: An Open-Source Capability for Meshing Nuclear Reactor Geometries", journal = "Nuclear Science and Engineering", volume = "197", number = "8", pages = "1656-1680", ISSN = "0029-5639", DOI = "10.1080/00295639.2022.2149231", url = "https://doi.org/10.1080/00295639.2022.2149231", year = "2023", type = "Journal Article" }
(sfr/sefor/Mesh/Mesh_Core-I-E_3D_450K.i)
################################################################################
## NEAMS Fast Reactor Application Driver ##
## SEFOR Mesh Generation ##
## Input File Using MOOSE Reactor Module Mesh Generators ##
## Mesh Modification Input File for Griffin ##
## Please contact the authors for mesh generation issues: ##
## - Dr. Donny Hartanto (hartantod.at.ornl.gov) ##
################################################################################
[Mesh]
### Block ID
#######################################################
# Fuel Assembly Region Mat Block ID
#######################################################
# Standard FA Fuel Pin MOX 110 111
# Fuel Gap Void 112
# Fuel Clad SS316 113
# Central Pin BeO 114 115
# Central gap Void 116
# Central Clad SS316 117
# Central Na Na 118
# Central Duct SS304 119
# Wire SS304 120
# Coolant Na 121
# Assm Duct SS304 122
# Assm Gap Na 123
# FA with 2 GP Fuel Pin MOX 210 211
# GP Pin MOX 212 213
# Fuel Gap Void 214
# Fuel Clad SS316 215
# Central Pin BeO 216 217
# Central gap Void 218
# Central Clad SS316 219
# Central Na Na 220
# Central Duct SS304 221
# Wire SS304 222
# Coolant Na 223
# Assm Duct SS304 224
# Assm Gap Na 225
# FA with 1 B4C Fuel Pin MOX 310 311
# Fuel Gap Void 312
# Fuel Clad SS316 313
# Abs Central SS304 314 315
# Abs Pin B4C 316
# Abs Cladding SS316 317
# Central Pin BeO 318 319
# Central gap Void 320
# Central Clad SS316 321
# Central Na Na 322
# Central Duct SS304 323
# Wire SS304 324
# Coolant Na 325
# Assm Duct SS304 326
# Assm Gap Na 327
# FA with 1 B4C & 1 GP Fuel Pin MOX 410 411
# GP Pin UO2 412 413
# Fuel Gap Void 414
# Fuel Clad SS316 415
# Abs Central SS304 416 417
# Abs Pin B4C 418
# Abs Cladding SS316 419
# Central Pin BeO 420 421
# Central gap Void 422
# Central Clad SS316 423
# Central Na Na 424
# Central Duct SS304 425
# Wire SS304 426
# Coolant Na 427
# Assm Duct SS304 428
# Assm Gap Na 429
# FRED Pin Void 510 511
# Clad SS304 512
# Central Gap Void 513
# Duct SS304 514
# Assm Gap Na 515
# Downcomer IV 601
# Downcomer OV 602
# Radial Reflector 603
# Radial Shield 604
# Steel Void 605
# Na-Grid Plate 1001 1002
# Na-steel 2001 2002
accg_num_sectors = 12
wire_num_sectors = 8
hmg_num_sector_per_side = '2 2 2 2 2 2'
num_boundary_sectors = 6
###############################################################################
# Standard Fuel Assembly
###############################################################################
## Fuel pin
[std_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '110 111 112 113'
preserve_volumes = on
[]
# Central pin
[std_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '114 115 116 117'
background_intervals = 1
background_block_ids = '118'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '119'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[std_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '120'
preserve_volumes = on
[]
# Standard Fuel assembly
[std_assm]
type = FlexiblePatternGenerator
inputs = 'std_fuel_pin std_wire std_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 0 0;
1 1 1 1 1 1'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '121'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '2'
[]
[std_assm_w_duct]
type = FlexiblePatternGenerator
inputs = 'std_assm'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '122'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[std_assm_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'std_assm_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '123'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 2 Guinea Pigs
###############################################################################
## Fuel pin
[gp2_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '210 211 214 215'
preserve_volumes = on
[]
# GP Pin
[gp2_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '212 213 214 215'
preserve_volumes = on
[]
# Central pin
[gp2_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '216 217 218 219'
background_intervals = 1
background_block_ids = '220'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '221'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[gp2_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '222'
preserve_volumes = on
[]
# standard fuel assembly with 2 GPs on top left (assembly 12)
[assm12]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 1;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm12_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm12'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm12_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm12_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 2 GPs on top right (assembly 13)
[assm13]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 1 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm13_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm13'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm13_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm13_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 B4C absorber
###############################################################################
## Fuel pin
[abs1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '310 311 312 313'
preserve_volumes = on
[]
# Absorber Pin
[abs1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '314 315 316 317'
preserve_volumes = on
[]
# Central pin
[abs1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '318 319 320 321'
background_intervals = 1
background_block_ids = '322'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '323'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '324'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C on top right (assembly 21)
[assm21]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm21_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm21'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm21_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm21_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on top right (assembly 23)
[assm23]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm23_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm23'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm23_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm23_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom left (assembly 24)
[assm24]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 1 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm24_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm24'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm24_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm24_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom right (assembly 25)
[assm25]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm25_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm25'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm25_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm25_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 Guinea Pig and 1 B4C Pin
###############################################################################
## Fuel pin
[abs1gp1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '410 411 414 415'
preserve_volumes = on
[]
# GP Pin
[abs1gp1_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '412 413 414 415'
preserve_volumes = on
[]
# Absorber Pin
[abs1gp1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '416 417 418 419'
preserve_volumes = on
[]
# Central pin
[abs1gp1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '420 421 422 423'
background_intervals = 1
background_block_ids = '424'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '425'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1gp1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '426'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C rod at top left and 1 GP rod at top right (assembly 41)
[assm41]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 2;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm41_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm41'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm41_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm41_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at right and 1 GP rod at bottom right (assembly 42)
[assm42]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 2 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm42_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm42'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm42_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm42_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at bottom left and 1 GP rod at left (assembly 43)
[assm43]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 2 0 0 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm43_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm43'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm43_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm43_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# FRED
[fred_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# Void SS316
ring_radii = '1.75726 2.11381'
ring_intervals = '2 1'
ring_block_ids = '510 511 512'
preserve_volumes = on
[]
[fred]
type = FlexiblePatternGenerator
inputs = 'fred_pin'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
# Void
background_subdomain_id = '513'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct]
type = FlexiblePatternGenerator
inputs = 'fred'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '514'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'fred_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '515'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# Dummy mesh to fill core lattice
[dummy]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 4.023875
background_intervals = 1
background_block_ids = '999'
sides_to_adapt = '0 1 2 3 4 5'
meshes_to_adapt_to = 'std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap'
[]
[pattern_core]
type = PatternedHexMeshGenerator
inputs = 'fred_w_duct_gap std_assm_w_duct_gap assm12_w_duct_gap
assm13_w_duct_gap assm21_w_duct_gap assm23_w_duct_gap
assm24_w_duct_gap assm25_w_duct_gap assm41_w_duct_gap
assm42_w_duct_gap assm43_w_duct_gap dummy'
pattern_boundary = none
generate_core_metadata = true
pattern = ' 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 1 1 1 7 1 1 11 11 11;
11 11 1 1 4 1 3 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 1 1 5 1 11 11;
11 11 1 1 1 1 1 5 1 9 1 1 1 11 11;
11 11 11 1 1 8 1 1 1 1 1 6 1 11 11 11;
11 11 11 1 4 1 1 1 0 1 1 1 1 1 11 11 11;
11 11 11 1 1 1 1 1 1 4 1 1 1 11 11 11;
11 11 1 1 2 1 5 1 1 1 1 7 1 11 11;
11 11 1 1 1 1 1 10 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 5 1 1 11 11;
11 11 11 1 1 4 1 1 1 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11'
[]
[del_dummy]
type = BlockDeletionGenerator
input = 'pattern_core'
block = '999'
new_boundary = 10000
[]
[downcomer_iv]
type = PeripheralRingMeshGenerator
input = 'del_dummy'
peripheral_layer_num = 2
peripheral_ring_radius = 53.486
peripheral_ring_block_id = '601'
input_mesh_external_boundary = 10000
[]
[downcomer_ov]
type = PeripheralRingMeshGenerator
input = 'downcomer_iv'
peripheral_layer_num = 1
peripheral_ring_radius = 58.4860
peripheral_ring_block_id = '602'
input_mesh_external_boundary = 10000
[]
[radial_reflector]
type = PeripheralRingMeshGenerator
input = 'downcomer_ov'
peripheral_layer_num = 2
peripheral_ring_radius = 73.5530
peripheral_ring_block_id = '603'
input_mesh_external_boundary = 10000
[]
[radial_shield]
type = PeripheralRingMeshGenerator
input = 'radial_reflector'
peripheral_layer_num = 1
peripheral_ring_radius = 87.0340
peripheral_ring_block_id = '604'
input_mesh_external_boundary = 10000
[]
[core_3d]
type = AdvancedExtruderGenerator
input = 'radial_shield'
heights = '30.745 10.7870 0.9525 52.4291 0.9525 3.2820 0.9525 33.5227 0.7775 0.0962 0.0788 10.7082 0.0788 20.2390'
num_layers = '6 2 1 10 1 1 1 7 1 1 1 2 1 4'
direction = '0 0 1'
# First axial to last axial, separated by ;
subdomain_swaps = ' 110 1001 111 1002 112 1002 113 1002 114 1001 115 1002 116 1002 117 1002 118 1002 119 1002 120 1001 121 1001 122 1001 123 1001
210 1001 211 1002 212 1001 213 1002 214 1002 215 1002 216 1001 217 1002 218 1002 219 1002 220 1002 221 1002 222 1001 223 1001 224 1001 225 1001
310 1001 311 1002 312 1002 313 1002 314 1001 315 1002 316 1002 317 1002 318 1001 319 1002 320 1002 321 1002 322 1002 323 1002 324 1001 325 1001 326 1001 327 1001
410 1001 411 1002 412 1001 413 1002 414 1002 415 1002 416 1001 417 1002 418 1002 419 1002 420 1001 421 1002 422 1002 423 1002 424 1002 425 1002 426 1001 427 1001 428 1001 429 1001
510 1001 511 1002 512 1002 513 1001 514 1001 515 1001
603 605;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 150 111 151 112 152 113 153 114 154 115 155 116 156 117 157 118 158 119 159 120 160 121 161 122 162 123 163
210 150 211 151 212 150 213 151 214 152 215 153 216 154 217 155 218 156 219 157 220 158 221 159 222 160 223 161 224 162 225 163
310 350 311 351 312 352 313 353 314 354 315 355 316 356 317 357 318 358 319 359 320 360 321 361 322 362 323 363 324 364 325 365 326 366 327 367
410 350 411 351 412 350 413 351 414 352 415 353 416 354 417 355 418 356 419 357 420 358 421 359 422 360 423 361 424 362 425 363 426 364 427 365 428 366 429 367;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 378 319 379 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 378 421 379 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 2001 319 2002 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 2001 421 2002 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 2001 111 2002 112 2002 113 2002 114 2001 115 2002 116 2002 117 2002 118 2002 119 2002 120 2001 121 2001 122 2001 123 2001
210 2001 211 2002 212 2001 213 2002 214 2002 215 2002 216 2001 217 2002 218 2002 219 2002 220 2002 221 2002 222 2001 223 2001 224 2001 225 2001
310 2001 311 2002 312 2002 313 2002 314 2001 315 2002 316 2002 317 2002 318 2001 319 2002 320 2002 321 2002 322 2002 323 2002 324 2001 325 2001 326 2001 327 2001
410 2001 411 2002 412 2001 413 2002 414 2002 415 2002 416 2001 417 2002 418 2002 419 2002 420 2001 421 2002 422 2002 423 2002 424 2002 425 2002 426 2001 427 2001 428 2001 429 2001
603 605'
top_boundary = 20000
bottom_boundary = 30000
[]
[coarse_mesh]
type = GeneratedMeshGenerator
dim= 3
nx = 35
ny = 35
nz = 34
xmin = -87.0340
xmax = 87.0340
ymin = -87.0340
ymax = 87.0340
zmin = 0.0000
zmax = 165.6018
[]
[assign_coarse_id]
type = CoarseMeshExtraElementIDGenerator
input = 'core_3d'
coarse_mesh = coarse_mesh
extra_element_id_name = coarse_element_id
[]
final_generator = 'assign_coarse_id'
[]
(sfr/sefor/Mesh/Mesh_Core-I-E_3D_450K.i)
################################################################################
## NEAMS Fast Reactor Application Driver ##
## SEFOR Mesh Generation ##
## Input File Using MOOSE Reactor Module Mesh Generators ##
## Mesh Modification Input File for Griffin ##
## Please contact the authors for mesh generation issues: ##
## - Dr. Donny Hartanto (hartantod.at.ornl.gov) ##
################################################################################
[Mesh]
### Block ID
#######################################################
# Fuel Assembly Region Mat Block ID
#######################################################
# Standard FA Fuel Pin MOX 110 111
# Fuel Gap Void 112
# Fuel Clad SS316 113
# Central Pin BeO 114 115
# Central gap Void 116
# Central Clad SS316 117
# Central Na Na 118
# Central Duct SS304 119
# Wire SS304 120
# Coolant Na 121
# Assm Duct SS304 122
# Assm Gap Na 123
# FA with 2 GP Fuel Pin MOX 210 211
# GP Pin MOX 212 213
# Fuel Gap Void 214
# Fuel Clad SS316 215
# Central Pin BeO 216 217
# Central gap Void 218
# Central Clad SS316 219
# Central Na Na 220
# Central Duct SS304 221
# Wire SS304 222
# Coolant Na 223
# Assm Duct SS304 224
# Assm Gap Na 225
# FA with 1 B4C Fuel Pin MOX 310 311
# Fuel Gap Void 312
# Fuel Clad SS316 313
# Abs Central SS304 314 315
# Abs Pin B4C 316
# Abs Cladding SS316 317
# Central Pin BeO 318 319
# Central gap Void 320
# Central Clad SS316 321
# Central Na Na 322
# Central Duct SS304 323
# Wire SS304 324
# Coolant Na 325
# Assm Duct SS304 326
# Assm Gap Na 327
# FA with 1 B4C & 1 GP Fuel Pin MOX 410 411
# GP Pin UO2 412 413
# Fuel Gap Void 414
# Fuel Clad SS316 415
# Abs Central SS304 416 417
# Abs Pin B4C 418
# Abs Cladding SS316 419
# Central Pin BeO 420 421
# Central gap Void 422
# Central Clad SS316 423
# Central Na Na 424
# Central Duct SS304 425
# Wire SS304 426
# Coolant Na 427
# Assm Duct SS304 428
# Assm Gap Na 429
# FRED Pin Void 510 511
# Clad SS304 512
# Central Gap Void 513
# Duct SS304 514
# Assm Gap Na 515
# Downcomer IV 601
# Downcomer OV 602
# Radial Reflector 603
# Radial Shield 604
# Steel Void 605
# Na-Grid Plate 1001 1002
# Na-steel 2001 2002
accg_num_sectors = 12
wire_num_sectors = 8
hmg_num_sector_per_side = '2 2 2 2 2 2'
num_boundary_sectors = 6
###############################################################################
# Standard Fuel Assembly
###############################################################################
## Fuel pin
[std_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '110 111 112 113'
preserve_volumes = on
[]
# Central pin
[std_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '114 115 116 117'
background_intervals = 1
background_block_ids = '118'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '119'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[std_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '120'
preserve_volumes = on
[]
# Standard Fuel assembly
[std_assm]
type = FlexiblePatternGenerator
inputs = 'std_fuel_pin std_wire std_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 0 0;
1 1 1 1 1 1'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '121'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '2'
[]
[std_assm_w_duct]
type = FlexiblePatternGenerator
inputs = 'std_assm'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '122'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[std_assm_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'std_assm_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '123'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 2 Guinea Pigs
###############################################################################
## Fuel pin
[gp2_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '210 211 214 215'
preserve_volumes = on
[]
# GP Pin
[gp2_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '212 213 214 215'
preserve_volumes = on
[]
# Central pin
[gp2_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '216 217 218 219'
background_intervals = 1
background_block_ids = '220'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '221'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[gp2_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '222'
preserve_volumes = on
[]
# standard fuel assembly with 2 GPs on top left (assembly 12)
[assm12]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 1;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm12_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm12'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm12_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm12_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 2 GPs on top right (assembly 13)
[assm13]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 1 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm13_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm13'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm13_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm13_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 B4C absorber
###############################################################################
## Fuel pin
[abs1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '310 311 312 313'
preserve_volumes = on
[]
# Absorber Pin
[abs1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '314 315 316 317'
preserve_volumes = on
[]
# Central pin
[abs1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '318 319 320 321'
background_intervals = 1
background_block_ids = '322'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '323'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '324'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C on top right (assembly 21)
[assm21]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm21_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm21'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm21_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm21_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on top right (assembly 23)
[assm23]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm23_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm23'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm23_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm23_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom left (assembly 24)
[assm24]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 1 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm24_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm24'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm24_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm24_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom right (assembly 25)
[assm25]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm25_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm25'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm25_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm25_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 Guinea Pig and 1 B4C Pin
###############################################################################
## Fuel pin
[abs1gp1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '410 411 414 415'
preserve_volumes = on
[]
# GP Pin
[abs1gp1_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '412 413 414 415'
preserve_volumes = on
[]
# Absorber Pin
[abs1gp1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '416 417 418 419'
preserve_volumes = on
[]
# Central pin
[abs1gp1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '420 421 422 423'
background_intervals = 1
background_block_ids = '424'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '425'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1gp1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '426'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C rod at top left and 1 GP rod at top right (assembly 41)
[assm41]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 2;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm41_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm41'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm41_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm41_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at right and 1 GP rod at bottom right (assembly 42)
[assm42]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 2 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm42_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm42'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm42_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm42_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at bottom left and 1 GP rod at left (assembly 43)
[assm43]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 2 0 0 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm43_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm43'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm43_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm43_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# FRED
[fred_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# Void SS316
ring_radii = '1.75726 2.11381'
ring_intervals = '2 1'
ring_block_ids = '510 511 512'
preserve_volumes = on
[]
[fred]
type = FlexiblePatternGenerator
inputs = 'fred_pin'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
# Void
background_subdomain_id = '513'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct]
type = FlexiblePatternGenerator
inputs = 'fred'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '514'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'fred_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '515'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# Dummy mesh to fill core lattice
[dummy]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 4.023875
background_intervals = 1
background_block_ids = '999'
sides_to_adapt = '0 1 2 3 4 5'
meshes_to_adapt_to = 'std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap'
[]
[pattern_core]
type = PatternedHexMeshGenerator
inputs = 'fred_w_duct_gap std_assm_w_duct_gap assm12_w_duct_gap
assm13_w_duct_gap assm21_w_duct_gap assm23_w_duct_gap
assm24_w_duct_gap assm25_w_duct_gap assm41_w_duct_gap
assm42_w_duct_gap assm43_w_duct_gap dummy'
pattern_boundary = none
generate_core_metadata = true
pattern = ' 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 1 1 1 7 1 1 11 11 11;
11 11 1 1 4 1 3 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 1 1 5 1 11 11;
11 11 1 1 1 1 1 5 1 9 1 1 1 11 11;
11 11 11 1 1 8 1 1 1 1 1 6 1 11 11 11;
11 11 11 1 4 1 1 1 0 1 1 1 1 1 11 11 11;
11 11 11 1 1 1 1 1 1 4 1 1 1 11 11 11;
11 11 1 1 2 1 5 1 1 1 1 7 1 11 11;
11 11 1 1 1 1 1 10 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 5 1 1 11 11;
11 11 11 1 1 4 1 1 1 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11'
[]
[del_dummy]
type = BlockDeletionGenerator
input = 'pattern_core'
block = '999'
new_boundary = 10000
[]
[downcomer_iv]
type = PeripheralRingMeshGenerator
input = 'del_dummy'
peripheral_layer_num = 2
peripheral_ring_radius = 53.486
peripheral_ring_block_id = '601'
input_mesh_external_boundary = 10000
[]
[downcomer_ov]
type = PeripheralRingMeshGenerator
input = 'downcomer_iv'
peripheral_layer_num = 1
peripheral_ring_radius = 58.4860
peripheral_ring_block_id = '602'
input_mesh_external_boundary = 10000
[]
[radial_reflector]
type = PeripheralRingMeshGenerator
input = 'downcomer_ov'
peripheral_layer_num = 2
peripheral_ring_radius = 73.5530
peripheral_ring_block_id = '603'
input_mesh_external_boundary = 10000
[]
[radial_shield]
type = PeripheralRingMeshGenerator
input = 'radial_reflector'
peripheral_layer_num = 1
peripheral_ring_radius = 87.0340
peripheral_ring_block_id = '604'
input_mesh_external_boundary = 10000
[]
[core_3d]
type = AdvancedExtruderGenerator
input = 'radial_shield'
heights = '30.745 10.7870 0.9525 52.4291 0.9525 3.2820 0.9525 33.5227 0.7775 0.0962 0.0788 10.7082 0.0788 20.2390'
num_layers = '6 2 1 10 1 1 1 7 1 1 1 2 1 4'
direction = '0 0 1'
# First axial to last axial, separated by ;
subdomain_swaps = ' 110 1001 111 1002 112 1002 113 1002 114 1001 115 1002 116 1002 117 1002 118 1002 119 1002 120 1001 121 1001 122 1001 123 1001
210 1001 211 1002 212 1001 213 1002 214 1002 215 1002 216 1001 217 1002 218 1002 219 1002 220 1002 221 1002 222 1001 223 1001 224 1001 225 1001
310 1001 311 1002 312 1002 313 1002 314 1001 315 1002 316 1002 317 1002 318 1001 319 1002 320 1002 321 1002 322 1002 323 1002 324 1001 325 1001 326 1001 327 1001
410 1001 411 1002 412 1001 413 1002 414 1002 415 1002 416 1001 417 1002 418 1002 419 1002 420 1001 421 1002 422 1002 423 1002 424 1002 425 1002 426 1001 427 1001 428 1001 429 1001
510 1001 511 1002 512 1002 513 1001 514 1001 515 1001
603 605;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 150 111 151 112 152 113 153 114 154 115 155 116 156 117 157 118 158 119 159 120 160 121 161 122 162 123 163
210 150 211 151 212 150 213 151 214 152 215 153 216 154 217 155 218 156 219 157 220 158 221 159 222 160 223 161 224 162 225 163
310 350 311 351 312 352 313 353 314 354 315 355 316 356 317 357 318 358 319 359 320 360 321 361 322 362 323 363 324 364 325 365 326 366 327 367
410 350 411 351 412 350 413 351 414 352 415 353 416 354 417 355 418 356 419 357 420 358 421 359 422 360 423 361 424 362 425 363 426 364 427 365 428 366 429 367;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 378 319 379 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 378 421 379 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 2001 319 2002 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 2001 421 2002 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 2001 111 2002 112 2002 113 2002 114 2001 115 2002 116 2002 117 2002 118 2002 119 2002 120 2001 121 2001 122 2001 123 2001
210 2001 211 2002 212 2001 213 2002 214 2002 215 2002 216 2001 217 2002 218 2002 219 2002 220 2002 221 2002 222 2001 223 2001 224 2001 225 2001
310 2001 311 2002 312 2002 313 2002 314 2001 315 2002 316 2002 317 2002 318 2001 319 2002 320 2002 321 2002 322 2002 323 2002 324 2001 325 2001 326 2001 327 2001
410 2001 411 2002 412 2001 413 2002 414 2002 415 2002 416 2001 417 2002 418 2002 419 2002 420 2001 421 2002 422 2002 423 2002 424 2002 425 2002 426 2001 427 2001 428 2001 429 2001
603 605'
top_boundary = 20000
bottom_boundary = 30000
[]
[coarse_mesh]
type = GeneratedMeshGenerator
dim= 3
nx = 35
ny = 35
nz = 34
xmin = -87.0340
xmax = 87.0340
ymin = -87.0340
ymax = 87.0340
zmin = 0.0000
zmax = 165.6018
[]
[assign_coarse_id]
type = CoarseMeshExtraElementIDGenerator
input = 'core_3d'
coarse_mesh = coarse_mesh
extra_element_id_name = coarse_element_id
[]
final_generator = 'assign_coarse_id'
[]
(sfr/sefor/Mesh/Mesh_Core-I-E_3D_450K.i)
################################################################################
## NEAMS Fast Reactor Application Driver ##
## SEFOR Mesh Generation ##
## Input File Using MOOSE Reactor Module Mesh Generators ##
## Mesh Modification Input File for Griffin ##
## Please contact the authors for mesh generation issues: ##
## - Dr. Donny Hartanto (hartantod.at.ornl.gov) ##
################################################################################
[Mesh]
### Block ID
#######################################################
# Fuel Assembly Region Mat Block ID
#######################################################
# Standard FA Fuel Pin MOX 110 111
# Fuel Gap Void 112
# Fuel Clad SS316 113
# Central Pin BeO 114 115
# Central gap Void 116
# Central Clad SS316 117
# Central Na Na 118
# Central Duct SS304 119
# Wire SS304 120
# Coolant Na 121
# Assm Duct SS304 122
# Assm Gap Na 123
# FA with 2 GP Fuel Pin MOX 210 211
# GP Pin MOX 212 213
# Fuel Gap Void 214
# Fuel Clad SS316 215
# Central Pin BeO 216 217
# Central gap Void 218
# Central Clad SS316 219
# Central Na Na 220
# Central Duct SS304 221
# Wire SS304 222
# Coolant Na 223
# Assm Duct SS304 224
# Assm Gap Na 225
# FA with 1 B4C Fuel Pin MOX 310 311
# Fuel Gap Void 312
# Fuel Clad SS316 313
# Abs Central SS304 314 315
# Abs Pin B4C 316
# Abs Cladding SS316 317
# Central Pin BeO 318 319
# Central gap Void 320
# Central Clad SS316 321
# Central Na Na 322
# Central Duct SS304 323
# Wire SS304 324
# Coolant Na 325
# Assm Duct SS304 326
# Assm Gap Na 327
# FA with 1 B4C & 1 GP Fuel Pin MOX 410 411
# GP Pin UO2 412 413
# Fuel Gap Void 414
# Fuel Clad SS316 415
# Abs Central SS304 416 417
# Abs Pin B4C 418
# Abs Cladding SS316 419
# Central Pin BeO 420 421
# Central gap Void 422
# Central Clad SS316 423
# Central Na Na 424
# Central Duct SS304 425
# Wire SS304 426
# Coolant Na 427
# Assm Duct SS304 428
# Assm Gap Na 429
# FRED Pin Void 510 511
# Clad SS304 512
# Central Gap Void 513
# Duct SS304 514
# Assm Gap Na 515
# Downcomer IV 601
# Downcomer OV 602
# Radial Reflector 603
# Radial Shield 604
# Steel Void 605
# Na-Grid Plate 1001 1002
# Na-steel 2001 2002
accg_num_sectors = 12
wire_num_sectors = 8
hmg_num_sector_per_side = '2 2 2 2 2 2'
num_boundary_sectors = 6
###############################################################################
# Standard Fuel Assembly
###############################################################################
## Fuel pin
[std_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '110 111 112 113'
preserve_volumes = on
[]
# Central pin
[std_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '114 115 116 117'
background_intervals = 1
background_block_ids = '118'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '119'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[std_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '120'
preserve_volumes = on
[]
# Standard Fuel assembly
[std_assm]
type = FlexiblePatternGenerator
inputs = 'std_fuel_pin std_wire std_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 0 0;
1 1 1 1 1 1'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '121'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '2'
[]
[std_assm_w_duct]
type = FlexiblePatternGenerator
inputs = 'std_assm'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '122'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[std_assm_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'std_assm_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '123'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 2 Guinea Pigs
###############################################################################
## Fuel pin
[gp2_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '210 211 214 215'
preserve_volumes = on
[]
# GP Pin
[gp2_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '212 213 214 215'
preserve_volumes = on
[]
# Central pin
[gp2_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '216 217 218 219'
background_intervals = 1
background_block_ids = '220'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '221'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[gp2_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '222'
preserve_volumes = on
[]
# standard fuel assembly with 2 GPs on top left (assembly 12)
[assm12]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 1;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm12_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm12'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm12_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm12_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 2 GPs on top right (assembly 13)
[assm13]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 1 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm13_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm13'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm13_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm13_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 B4C absorber
###############################################################################
## Fuel pin
[abs1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '310 311 312 313'
preserve_volumes = on
[]
# Absorber Pin
[abs1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '314 315 316 317'
preserve_volumes = on
[]
# Central pin
[abs1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '318 319 320 321'
background_intervals = 1
background_block_ids = '322'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '323'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '324'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C on top right (assembly 21)
[assm21]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm21_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm21'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm21_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm21_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on top right (assembly 23)
[assm23]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm23_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm23'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm23_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm23_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom left (assembly 24)
[assm24]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 1 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm24_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm24'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm24_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm24_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom right (assembly 25)
[assm25]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm25_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm25'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm25_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm25_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 Guinea Pig and 1 B4C Pin
###############################################################################
## Fuel pin
[abs1gp1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '410 411 414 415'
preserve_volumes = on
[]
# GP Pin
[abs1gp1_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '412 413 414 415'
preserve_volumes = on
[]
# Absorber Pin
[abs1gp1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '416 417 418 419'
preserve_volumes = on
[]
# Central pin
[abs1gp1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '420 421 422 423'
background_intervals = 1
background_block_ids = '424'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '425'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1gp1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '426'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C rod at top left and 1 GP rod at top right (assembly 41)
[assm41]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 2;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm41_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm41'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm41_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm41_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at right and 1 GP rod at bottom right (assembly 42)
[assm42]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 2 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm42_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm42'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm42_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm42_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at bottom left and 1 GP rod at left (assembly 43)
[assm43]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 2 0 0 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm43_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm43'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm43_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm43_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# FRED
[fred_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# Void SS316
ring_radii = '1.75726 2.11381'
ring_intervals = '2 1'
ring_block_ids = '510 511 512'
preserve_volumes = on
[]
[fred]
type = FlexiblePatternGenerator
inputs = 'fred_pin'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
# Void
background_subdomain_id = '513'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct]
type = FlexiblePatternGenerator
inputs = 'fred'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '514'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'fred_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '515'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# Dummy mesh to fill core lattice
[dummy]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 4.023875
background_intervals = 1
background_block_ids = '999'
sides_to_adapt = '0 1 2 3 4 5'
meshes_to_adapt_to = 'std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap'
[]
[pattern_core]
type = PatternedHexMeshGenerator
inputs = 'fred_w_duct_gap std_assm_w_duct_gap assm12_w_duct_gap
assm13_w_duct_gap assm21_w_duct_gap assm23_w_duct_gap
assm24_w_duct_gap assm25_w_duct_gap assm41_w_duct_gap
assm42_w_duct_gap assm43_w_duct_gap dummy'
pattern_boundary = none
generate_core_metadata = true
pattern = ' 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 1 1 1 7 1 1 11 11 11;
11 11 1 1 4 1 3 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 1 1 5 1 11 11;
11 11 1 1 1 1 1 5 1 9 1 1 1 11 11;
11 11 11 1 1 8 1 1 1 1 1 6 1 11 11 11;
11 11 11 1 4 1 1 1 0 1 1 1 1 1 11 11 11;
11 11 11 1 1 1 1 1 1 4 1 1 1 11 11 11;
11 11 1 1 2 1 5 1 1 1 1 7 1 11 11;
11 11 1 1 1 1 1 10 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 5 1 1 11 11;
11 11 11 1 1 4 1 1 1 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11'
[]
[del_dummy]
type = BlockDeletionGenerator
input = 'pattern_core'
block = '999'
new_boundary = 10000
[]
[downcomer_iv]
type = PeripheralRingMeshGenerator
input = 'del_dummy'
peripheral_layer_num = 2
peripheral_ring_radius = 53.486
peripheral_ring_block_id = '601'
input_mesh_external_boundary = 10000
[]
[downcomer_ov]
type = PeripheralRingMeshGenerator
input = 'downcomer_iv'
peripheral_layer_num = 1
peripheral_ring_radius = 58.4860
peripheral_ring_block_id = '602'
input_mesh_external_boundary = 10000
[]
[radial_reflector]
type = PeripheralRingMeshGenerator
input = 'downcomer_ov'
peripheral_layer_num = 2
peripheral_ring_radius = 73.5530
peripheral_ring_block_id = '603'
input_mesh_external_boundary = 10000
[]
[radial_shield]
type = PeripheralRingMeshGenerator
input = 'radial_reflector'
peripheral_layer_num = 1
peripheral_ring_radius = 87.0340
peripheral_ring_block_id = '604'
input_mesh_external_boundary = 10000
[]
[core_3d]
type = AdvancedExtruderGenerator
input = 'radial_shield'
heights = '30.745 10.7870 0.9525 52.4291 0.9525 3.2820 0.9525 33.5227 0.7775 0.0962 0.0788 10.7082 0.0788 20.2390'
num_layers = '6 2 1 10 1 1 1 7 1 1 1 2 1 4'
direction = '0 0 1'
# First axial to last axial, separated by ;
subdomain_swaps = ' 110 1001 111 1002 112 1002 113 1002 114 1001 115 1002 116 1002 117 1002 118 1002 119 1002 120 1001 121 1001 122 1001 123 1001
210 1001 211 1002 212 1001 213 1002 214 1002 215 1002 216 1001 217 1002 218 1002 219 1002 220 1002 221 1002 222 1001 223 1001 224 1001 225 1001
310 1001 311 1002 312 1002 313 1002 314 1001 315 1002 316 1002 317 1002 318 1001 319 1002 320 1002 321 1002 322 1002 323 1002 324 1001 325 1001 326 1001 327 1001
410 1001 411 1002 412 1001 413 1002 414 1002 415 1002 416 1001 417 1002 418 1002 419 1002 420 1001 421 1002 422 1002 423 1002 424 1002 425 1002 426 1001 427 1001 428 1001 429 1001
510 1001 511 1002 512 1002 513 1001 514 1001 515 1001
603 605;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 150 111 151 112 152 113 153 114 154 115 155 116 156 117 157 118 158 119 159 120 160 121 161 122 162 123 163
210 150 211 151 212 150 213 151 214 152 215 153 216 154 217 155 218 156 219 157 220 158 221 159 222 160 223 161 224 162 225 163
310 350 311 351 312 352 313 353 314 354 315 355 316 356 317 357 318 358 319 359 320 360 321 361 322 362 323 363 324 364 325 365 326 366 327 367
410 350 411 351 412 350 413 351 414 352 415 353 416 354 417 355 418 356 419 357 420 358 421 359 422 360 423 361 424 362 425 363 426 364 427 365 428 366 429 367;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 378 319 379 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 378 421 379 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 2001 319 2002 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 2001 421 2002 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 2001 111 2002 112 2002 113 2002 114 2001 115 2002 116 2002 117 2002 118 2002 119 2002 120 2001 121 2001 122 2001 123 2001
210 2001 211 2002 212 2001 213 2002 214 2002 215 2002 216 2001 217 2002 218 2002 219 2002 220 2002 221 2002 222 2001 223 2001 224 2001 225 2001
310 2001 311 2002 312 2002 313 2002 314 2001 315 2002 316 2002 317 2002 318 2001 319 2002 320 2002 321 2002 322 2002 323 2002 324 2001 325 2001 326 2001 327 2001
410 2001 411 2002 412 2001 413 2002 414 2002 415 2002 416 2001 417 2002 418 2002 419 2002 420 2001 421 2002 422 2002 423 2002 424 2002 425 2002 426 2001 427 2001 428 2001 429 2001
603 605'
top_boundary = 20000
bottom_boundary = 30000
[]
[coarse_mesh]
type = GeneratedMeshGenerator
dim= 3
nx = 35
ny = 35
nz = 34
xmin = -87.0340
xmax = 87.0340
ymin = -87.0340
ymax = 87.0340
zmin = 0.0000
zmax = 165.6018
[]
[assign_coarse_id]
type = CoarseMeshExtraElementIDGenerator
input = 'core_3d'
coarse_mesh = coarse_mesh
extra_element_id_name = coarse_element_id
[]
final_generator = 'assign_coarse_id'
[]
(sfr/sefor/Mesh/Mesh_Core-I-E_3D_450K.i)
################################################################################
## NEAMS Fast Reactor Application Driver ##
## SEFOR Mesh Generation ##
## Input File Using MOOSE Reactor Module Mesh Generators ##
## Mesh Modification Input File for Griffin ##
## Please contact the authors for mesh generation issues: ##
## - Dr. Donny Hartanto (hartantod.at.ornl.gov) ##
################################################################################
[Mesh]
### Block ID
#######################################################
# Fuel Assembly Region Mat Block ID
#######################################################
# Standard FA Fuel Pin MOX 110 111
# Fuel Gap Void 112
# Fuel Clad SS316 113
# Central Pin BeO 114 115
# Central gap Void 116
# Central Clad SS316 117
# Central Na Na 118
# Central Duct SS304 119
# Wire SS304 120
# Coolant Na 121
# Assm Duct SS304 122
# Assm Gap Na 123
# FA with 2 GP Fuel Pin MOX 210 211
# GP Pin MOX 212 213
# Fuel Gap Void 214
# Fuel Clad SS316 215
# Central Pin BeO 216 217
# Central gap Void 218
# Central Clad SS316 219
# Central Na Na 220
# Central Duct SS304 221
# Wire SS304 222
# Coolant Na 223
# Assm Duct SS304 224
# Assm Gap Na 225
# FA with 1 B4C Fuel Pin MOX 310 311
# Fuel Gap Void 312
# Fuel Clad SS316 313
# Abs Central SS304 314 315
# Abs Pin B4C 316
# Abs Cladding SS316 317
# Central Pin BeO 318 319
# Central gap Void 320
# Central Clad SS316 321
# Central Na Na 322
# Central Duct SS304 323
# Wire SS304 324
# Coolant Na 325
# Assm Duct SS304 326
# Assm Gap Na 327
# FA with 1 B4C & 1 GP Fuel Pin MOX 410 411
# GP Pin UO2 412 413
# Fuel Gap Void 414
# Fuel Clad SS316 415
# Abs Central SS304 416 417
# Abs Pin B4C 418
# Abs Cladding SS316 419
# Central Pin BeO 420 421
# Central gap Void 422
# Central Clad SS316 423
# Central Na Na 424
# Central Duct SS304 425
# Wire SS304 426
# Coolant Na 427
# Assm Duct SS304 428
# Assm Gap Na 429
# FRED Pin Void 510 511
# Clad SS304 512
# Central Gap Void 513
# Duct SS304 514
# Assm Gap Na 515
# Downcomer IV 601
# Downcomer OV 602
# Radial Reflector 603
# Radial Shield 604
# Steel Void 605
# Na-Grid Plate 1001 1002
# Na-steel 2001 2002
accg_num_sectors = 12
wire_num_sectors = 8
hmg_num_sector_per_side = '2 2 2 2 2 2'
num_boundary_sectors = 6
###############################################################################
# Standard Fuel Assembly
###############################################################################
## Fuel pin
[std_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '110 111 112 113'
preserve_volumes = on
[]
# Central pin
[std_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '114 115 116 117'
background_intervals = 1
background_block_ids = '118'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '119'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[std_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '120'
preserve_volumes = on
[]
# Standard Fuel assembly
[std_assm]
type = FlexiblePatternGenerator
inputs = 'std_fuel_pin std_wire std_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 0 0;
1 1 1 1 1 1'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '121'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '2'
[]
[std_assm_w_duct]
type = FlexiblePatternGenerator
inputs = 'std_assm'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '122'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[std_assm_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'std_assm_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '123'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 2 Guinea Pigs
###############################################################################
## Fuel pin
[gp2_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '210 211 214 215'
preserve_volumes = on
[]
# GP Pin
[gp2_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '212 213 214 215'
preserve_volumes = on
[]
# Central pin
[gp2_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '216 217 218 219'
background_intervals = 1
background_block_ids = '220'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '221'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[gp2_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '222'
preserve_volumes = on
[]
# standard fuel assembly with 2 GPs on top left (assembly 12)
[assm12]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 1;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm12_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm12'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm12_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm12_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 2 GPs on top right (assembly 13)
[assm13]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 1 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm13_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm13'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm13_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm13_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 B4C absorber
###############################################################################
## Fuel pin
[abs1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '310 311 312 313'
preserve_volumes = on
[]
# Absorber Pin
[abs1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '314 315 316 317'
preserve_volumes = on
[]
# Central pin
[abs1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '318 319 320 321'
background_intervals = 1
background_block_ids = '322'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '323'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '324'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C on top right (assembly 21)
[assm21]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm21_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm21'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm21_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm21_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on top right (assembly 23)
[assm23]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm23_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm23'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm23_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm23_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom left (assembly 24)
[assm24]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 1 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm24_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm24'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm24_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm24_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom right (assembly 25)
[assm25]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm25_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm25'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm25_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm25_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 Guinea Pig and 1 B4C Pin
###############################################################################
## Fuel pin
[abs1gp1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '410 411 414 415'
preserve_volumes = on
[]
# GP Pin
[abs1gp1_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '412 413 414 415'
preserve_volumes = on
[]
# Absorber Pin
[abs1gp1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '416 417 418 419'
preserve_volumes = on
[]
# Central pin
[abs1gp1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '420 421 422 423'
background_intervals = 1
background_block_ids = '424'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '425'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1gp1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '426'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C rod at top left and 1 GP rod at top right (assembly 41)
[assm41]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 2;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm41_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm41'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm41_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm41_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at right and 1 GP rod at bottom right (assembly 42)
[assm42]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 2 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm42_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm42'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm42_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm42_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at bottom left and 1 GP rod at left (assembly 43)
[assm43]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 2 0 0 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm43_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm43'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm43_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm43_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# FRED
[fred_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# Void SS316
ring_radii = '1.75726 2.11381'
ring_intervals = '2 1'
ring_block_ids = '510 511 512'
preserve_volumes = on
[]
[fred]
type = FlexiblePatternGenerator
inputs = 'fred_pin'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
# Void
background_subdomain_id = '513'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct]
type = FlexiblePatternGenerator
inputs = 'fred'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '514'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'fred_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '515'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# Dummy mesh to fill core lattice
[dummy]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 4.023875
background_intervals = 1
background_block_ids = '999'
sides_to_adapt = '0 1 2 3 4 5'
meshes_to_adapt_to = 'std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap'
[]
[pattern_core]
type = PatternedHexMeshGenerator
inputs = 'fred_w_duct_gap std_assm_w_duct_gap assm12_w_duct_gap
assm13_w_duct_gap assm21_w_duct_gap assm23_w_duct_gap
assm24_w_duct_gap assm25_w_duct_gap assm41_w_duct_gap
assm42_w_duct_gap assm43_w_duct_gap dummy'
pattern_boundary = none
generate_core_metadata = true
pattern = ' 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 1 1 1 7 1 1 11 11 11;
11 11 1 1 4 1 3 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 1 1 5 1 11 11;
11 11 1 1 1 1 1 5 1 9 1 1 1 11 11;
11 11 11 1 1 8 1 1 1 1 1 6 1 11 11 11;
11 11 11 1 4 1 1 1 0 1 1 1 1 1 11 11 11;
11 11 11 1 1 1 1 1 1 4 1 1 1 11 11 11;
11 11 1 1 2 1 5 1 1 1 1 7 1 11 11;
11 11 1 1 1 1 1 10 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 5 1 1 11 11;
11 11 11 1 1 4 1 1 1 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11'
[]
[del_dummy]
type = BlockDeletionGenerator
input = 'pattern_core'
block = '999'
new_boundary = 10000
[]
[downcomer_iv]
type = PeripheralRingMeshGenerator
input = 'del_dummy'
peripheral_layer_num = 2
peripheral_ring_radius = 53.486
peripheral_ring_block_id = '601'
input_mesh_external_boundary = 10000
[]
[downcomer_ov]
type = PeripheralRingMeshGenerator
input = 'downcomer_iv'
peripheral_layer_num = 1
peripheral_ring_radius = 58.4860
peripheral_ring_block_id = '602'
input_mesh_external_boundary = 10000
[]
[radial_reflector]
type = PeripheralRingMeshGenerator
input = 'downcomer_ov'
peripheral_layer_num = 2
peripheral_ring_radius = 73.5530
peripheral_ring_block_id = '603'
input_mesh_external_boundary = 10000
[]
[radial_shield]
type = PeripheralRingMeshGenerator
input = 'radial_reflector'
peripheral_layer_num = 1
peripheral_ring_radius = 87.0340
peripheral_ring_block_id = '604'
input_mesh_external_boundary = 10000
[]
[core_3d]
type = AdvancedExtruderGenerator
input = 'radial_shield'
heights = '30.745 10.7870 0.9525 52.4291 0.9525 3.2820 0.9525 33.5227 0.7775 0.0962 0.0788 10.7082 0.0788 20.2390'
num_layers = '6 2 1 10 1 1 1 7 1 1 1 2 1 4'
direction = '0 0 1'
# First axial to last axial, separated by ;
subdomain_swaps = ' 110 1001 111 1002 112 1002 113 1002 114 1001 115 1002 116 1002 117 1002 118 1002 119 1002 120 1001 121 1001 122 1001 123 1001
210 1001 211 1002 212 1001 213 1002 214 1002 215 1002 216 1001 217 1002 218 1002 219 1002 220 1002 221 1002 222 1001 223 1001 224 1001 225 1001
310 1001 311 1002 312 1002 313 1002 314 1001 315 1002 316 1002 317 1002 318 1001 319 1002 320 1002 321 1002 322 1002 323 1002 324 1001 325 1001 326 1001 327 1001
410 1001 411 1002 412 1001 413 1002 414 1002 415 1002 416 1001 417 1002 418 1002 419 1002 420 1001 421 1002 422 1002 423 1002 424 1002 425 1002 426 1001 427 1001 428 1001 429 1001
510 1001 511 1002 512 1002 513 1001 514 1001 515 1001
603 605;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 150 111 151 112 152 113 153 114 154 115 155 116 156 117 157 118 158 119 159 120 160 121 161 122 162 123 163
210 150 211 151 212 150 213 151 214 152 215 153 216 154 217 155 218 156 219 157 220 158 221 159 222 160 223 161 224 162 225 163
310 350 311 351 312 352 313 353 314 354 315 355 316 356 317 357 318 358 319 359 320 360 321 361 322 362 323 363 324 364 325 365 326 366 327 367
410 350 411 351 412 350 413 351 414 352 415 353 416 354 417 355 418 356 419 357 420 358 421 359 422 360 423 361 424 362 425 363 426 364 427 365 428 366 429 367;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 378 319 379 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 378 421 379 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 2001 319 2002 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 2001 421 2002 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 2001 111 2002 112 2002 113 2002 114 2001 115 2002 116 2002 117 2002 118 2002 119 2002 120 2001 121 2001 122 2001 123 2001
210 2001 211 2002 212 2001 213 2002 214 2002 215 2002 216 2001 217 2002 218 2002 219 2002 220 2002 221 2002 222 2001 223 2001 224 2001 225 2001
310 2001 311 2002 312 2002 313 2002 314 2001 315 2002 316 2002 317 2002 318 2001 319 2002 320 2002 321 2002 322 2002 323 2002 324 2001 325 2001 326 2001 327 2001
410 2001 411 2002 412 2001 413 2002 414 2002 415 2002 416 2001 417 2002 418 2002 419 2002 420 2001 421 2002 422 2002 423 2002 424 2002 425 2002 426 2001 427 2001 428 2001 429 2001
603 605'
top_boundary = 20000
bottom_boundary = 30000
[]
[coarse_mesh]
type = GeneratedMeshGenerator
dim= 3
nx = 35
ny = 35
nz = 34
xmin = -87.0340
xmax = 87.0340
ymin = -87.0340
ymax = 87.0340
zmin = 0.0000
zmax = 165.6018
[]
[assign_coarse_id]
type = CoarseMeshExtraElementIDGenerator
input = 'core_3d'
coarse_mesh = coarse_mesh
extra_element_id_name = coarse_element_id
[]
final_generator = 'assign_coarse_id'
[]
(sfr/sefor/Mesh/Mesh_Core-I-E_3D_450K.i)
################################################################################
## NEAMS Fast Reactor Application Driver ##
## SEFOR Mesh Generation ##
## Input File Using MOOSE Reactor Module Mesh Generators ##
## Mesh Modification Input File for Griffin ##
## Please contact the authors for mesh generation issues: ##
## - Dr. Donny Hartanto (hartantod.at.ornl.gov) ##
################################################################################
[Mesh]
### Block ID
#######################################################
# Fuel Assembly Region Mat Block ID
#######################################################
# Standard FA Fuel Pin MOX 110 111
# Fuel Gap Void 112
# Fuel Clad SS316 113
# Central Pin BeO 114 115
# Central gap Void 116
# Central Clad SS316 117
# Central Na Na 118
# Central Duct SS304 119
# Wire SS304 120
# Coolant Na 121
# Assm Duct SS304 122
# Assm Gap Na 123
# FA with 2 GP Fuel Pin MOX 210 211
# GP Pin MOX 212 213
# Fuel Gap Void 214
# Fuel Clad SS316 215
# Central Pin BeO 216 217
# Central gap Void 218
# Central Clad SS316 219
# Central Na Na 220
# Central Duct SS304 221
# Wire SS304 222
# Coolant Na 223
# Assm Duct SS304 224
# Assm Gap Na 225
# FA with 1 B4C Fuel Pin MOX 310 311
# Fuel Gap Void 312
# Fuel Clad SS316 313
# Abs Central SS304 314 315
# Abs Pin B4C 316
# Abs Cladding SS316 317
# Central Pin BeO 318 319
# Central gap Void 320
# Central Clad SS316 321
# Central Na Na 322
# Central Duct SS304 323
# Wire SS304 324
# Coolant Na 325
# Assm Duct SS304 326
# Assm Gap Na 327
# FA with 1 B4C & 1 GP Fuel Pin MOX 410 411
# GP Pin UO2 412 413
# Fuel Gap Void 414
# Fuel Clad SS316 415
# Abs Central SS304 416 417
# Abs Pin B4C 418
# Abs Cladding SS316 419
# Central Pin BeO 420 421
# Central gap Void 422
# Central Clad SS316 423
# Central Na Na 424
# Central Duct SS304 425
# Wire SS304 426
# Coolant Na 427
# Assm Duct SS304 428
# Assm Gap Na 429
# FRED Pin Void 510 511
# Clad SS304 512
# Central Gap Void 513
# Duct SS304 514
# Assm Gap Na 515
# Downcomer IV 601
# Downcomer OV 602
# Radial Reflector 603
# Radial Shield 604
# Steel Void 605
# Na-Grid Plate 1001 1002
# Na-steel 2001 2002
accg_num_sectors = 12
wire_num_sectors = 8
hmg_num_sector_per_side = '2 2 2 2 2 2'
num_boundary_sectors = 6
###############################################################################
# Standard Fuel Assembly
###############################################################################
## Fuel pin
[std_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '110 111 112 113'
preserve_volumes = on
[]
# Central pin
[std_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '114 115 116 117'
background_intervals = 1
background_block_ids = '118'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '119'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[std_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '120'
preserve_volumes = on
[]
# Standard Fuel assembly
[std_assm]
type = FlexiblePatternGenerator
inputs = 'std_fuel_pin std_wire std_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 0 0;
1 1 1 1 1 1'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '121'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '2'
[]
[std_assm_w_duct]
type = FlexiblePatternGenerator
inputs = 'std_assm'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '122'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[std_assm_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'std_assm_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '123'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 2 Guinea Pigs
###############################################################################
## Fuel pin
[gp2_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '210 211 214 215'
preserve_volumes = on
[]
# GP Pin
[gp2_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '212 213 214 215'
preserve_volumes = on
[]
# Central pin
[gp2_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '216 217 218 219'
background_intervals = 1
background_block_ids = '220'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '221'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[gp2_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '222'
preserve_volumes = on
[]
# standard fuel assembly with 2 GPs on top left (assembly 12)
[assm12]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 1;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm12_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm12'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm12_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm12_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 2 GPs on top right (assembly 13)
[assm13]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 1 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm13_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm13'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm13_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm13_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 B4C absorber
###############################################################################
## Fuel pin
[abs1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '310 311 312 313'
preserve_volumes = on
[]
# Absorber Pin
[abs1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '314 315 316 317'
preserve_volumes = on
[]
# Central pin
[abs1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '318 319 320 321'
background_intervals = 1
background_block_ids = '322'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '323'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '324'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C on top right (assembly 21)
[assm21]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm21_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm21'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm21_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm21_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on top right (assembly 23)
[assm23]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm23_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm23'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm23_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm23_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom left (assembly 24)
[assm24]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 1 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm24_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm24'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm24_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm24_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom right (assembly 25)
[assm25]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm25_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm25'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm25_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm25_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 Guinea Pig and 1 B4C Pin
###############################################################################
## Fuel pin
[abs1gp1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '410 411 414 415'
preserve_volumes = on
[]
# GP Pin
[abs1gp1_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '412 413 414 415'
preserve_volumes = on
[]
# Absorber Pin
[abs1gp1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '416 417 418 419'
preserve_volumes = on
[]
# Central pin
[abs1gp1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '420 421 422 423'
background_intervals = 1
background_block_ids = '424'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '425'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1gp1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '426'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C rod at top left and 1 GP rod at top right (assembly 41)
[assm41]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 2;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm41_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm41'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm41_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm41_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at right and 1 GP rod at bottom right (assembly 42)
[assm42]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 2 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm42_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm42'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm42_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm42_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at bottom left and 1 GP rod at left (assembly 43)
[assm43]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 2 0 0 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm43_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm43'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm43_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm43_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# FRED
[fred_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# Void SS316
ring_radii = '1.75726 2.11381'
ring_intervals = '2 1'
ring_block_ids = '510 511 512'
preserve_volumes = on
[]
[fred]
type = FlexiblePatternGenerator
inputs = 'fred_pin'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
# Void
background_subdomain_id = '513'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct]
type = FlexiblePatternGenerator
inputs = 'fred'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '514'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'fred_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '515'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# Dummy mesh to fill core lattice
[dummy]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 4.023875
background_intervals = 1
background_block_ids = '999'
sides_to_adapt = '0 1 2 3 4 5'
meshes_to_adapt_to = 'std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap'
[]
[pattern_core]
type = PatternedHexMeshGenerator
inputs = 'fred_w_duct_gap std_assm_w_duct_gap assm12_w_duct_gap
assm13_w_duct_gap assm21_w_duct_gap assm23_w_duct_gap
assm24_w_duct_gap assm25_w_duct_gap assm41_w_duct_gap
assm42_w_duct_gap assm43_w_duct_gap dummy'
pattern_boundary = none
generate_core_metadata = true
pattern = ' 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 1 1 1 7 1 1 11 11 11;
11 11 1 1 4 1 3 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 1 1 5 1 11 11;
11 11 1 1 1 1 1 5 1 9 1 1 1 11 11;
11 11 11 1 1 8 1 1 1 1 1 6 1 11 11 11;
11 11 11 1 4 1 1 1 0 1 1 1 1 1 11 11 11;
11 11 11 1 1 1 1 1 1 4 1 1 1 11 11 11;
11 11 1 1 2 1 5 1 1 1 1 7 1 11 11;
11 11 1 1 1 1 1 10 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 5 1 1 11 11;
11 11 11 1 1 4 1 1 1 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11'
[]
[del_dummy]
type = BlockDeletionGenerator
input = 'pattern_core'
block = '999'
new_boundary = 10000
[]
[downcomer_iv]
type = PeripheralRingMeshGenerator
input = 'del_dummy'
peripheral_layer_num = 2
peripheral_ring_radius = 53.486
peripheral_ring_block_id = '601'
input_mesh_external_boundary = 10000
[]
[downcomer_ov]
type = PeripheralRingMeshGenerator
input = 'downcomer_iv'
peripheral_layer_num = 1
peripheral_ring_radius = 58.4860
peripheral_ring_block_id = '602'
input_mesh_external_boundary = 10000
[]
[radial_reflector]
type = PeripheralRingMeshGenerator
input = 'downcomer_ov'
peripheral_layer_num = 2
peripheral_ring_radius = 73.5530
peripheral_ring_block_id = '603'
input_mesh_external_boundary = 10000
[]
[radial_shield]
type = PeripheralRingMeshGenerator
input = 'radial_reflector'
peripheral_layer_num = 1
peripheral_ring_radius = 87.0340
peripheral_ring_block_id = '604'
input_mesh_external_boundary = 10000
[]
[core_3d]
type = AdvancedExtruderGenerator
input = 'radial_shield'
heights = '30.745 10.7870 0.9525 52.4291 0.9525 3.2820 0.9525 33.5227 0.7775 0.0962 0.0788 10.7082 0.0788 20.2390'
num_layers = '6 2 1 10 1 1 1 7 1 1 1 2 1 4'
direction = '0 0 1'
# First axial to last axial, separated by ;
subdomain_swaps = ' 110 1001 111 1002 112 1002 113 1002 114 1001 115 1002 116 1002 117 1002 118 1002 119 1002 120 1001 121 1001 122 1001 123 1001
210 1001 211 1002 212 1001 213 1002 214 1002 215 1002 216 1001 217 1002 218 1002 219 1002 220 1002 221 1002 222 1001 223 1001 224 1001 225 1001
310 1001 311 1002 312 1002 313 1002 314 1001 315 1002 316 1002 317 1002 318 1001 319 1002 320 1002 321 1002 322 1002 323 1002 324 1001 325 1001 326 1001 327 1001
410 1001 411 1002 412 1001 413 1002 414 1002 415 1002 416 1001 417 1002 418 1002 419 1002 420 1001 421 1002 422 1002 423 1002 424 1002 425 1002 426 1001 427 1001 428 1001 429 1001
510 1001 511 1002 512 1002 513 1001 514 1001 515 1001
603 605;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 150 111 151 112 152 113 153 114 154 115 155 116 156 117 157 118 158 119 159 120 160 121 161 122 162 123 163
210 150 211 151 212 150 213 151 214 152 215 153 216 154 217 155 218 156 219 157 220 158 221 159 222 160 223 161 224 162 225 163
310 350 311 351 312 352 313 353 314 354 315 355 316 356 317 357 318 358 319 359 320 360 321 361 322 362 323 363 324 364 325 365 326 366 327 367
410 350 411 351 412 350 413 351 414 352 415 353 416 354 417 355 418 356 419 357 420 358 421 359 422 360 423 361 424 362 425 363 426 364 427 365 428 366 429 367;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 378 319 379 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 378 421 379 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 2001 319 2002 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 2001 421 2002 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 2001 111 2002 112 2002 113 2002 114 2001 115 2002 116 2002 117 2002 118 2002 119 2002 120 2001 121 2001 122 2001 123 2001
210 2001 211 2002 212 2001 213 2002 214 2002 215 2002 216 2001 217 2002 218 2002 219 2002 220 2002 221 2002 222 2001 223 2001 224 2001 225 2001
310 2001 311 2002 312 2002 313 2002 314 2001 315 2002 316 2002 317 2002 318 2001 319 2002 320 2002 321 2002 322 2002 323 2002 324 2001 325 2001 326 2001 327 2001
410 2001 411 2002 412 2001 413 2002 414 2002 415 2002 416 2001 417 2002 418 2002 419 2002 420 2001 421 2002 422 2002 423 2002 424 2002 425 2002 426 2001 427 2001 428 2001 429 2001
603 605'
top_boundary = 20000
bottom_boundary = 30000
[]
[coarse_mesh]
type = GeneratedMeshGenerator
dim= 3
nx = 35
ny = 35
nz = 34
xmin = -87.0340
xmax = 87.0340
ymin = -87.0340
ymax = 87.0340
zmin = 0.0000
zmax = 165.6018
[]
[assign_coarse_id]
type = CoarseMeshExtraElementIDGenerator
input = 'core_3d'
coarse_mesh = coarse_mesh
extra_element_id_name = coarse_element_id
[]
final_generator = 'assign_coarse_id'
[]
(sfr/sefor/Mesh/Mesh_Core-I-E_3D_450K.i)
################################################################################
## NEAMS Fast Reactor Application Driver ##
## SEFOR Mesh Generation ##
## Input File Using MOOSE Reactor Module Mesh Generators ##
## Mesh Modification Input File for Griffin ##
## Please contact the authors for mesh generation issues: ##
## - Dr. Donny Hartanto (hartantod.at.ornl.gov) ##
################################################################################
[Mesh]
### Block ID
#######################################################
# Fuel Assembly Region Mat Block ID
#######################################################
# Standard FA Fuel Pin MOX 110 111
# Fuel Gap Void 112
# Fuel Clad SS316 113
# Central Pin BeO 114 115
# Central gap Void 116
# Central Clad SS316 117
# Central Na Na 118
# Central Duct SS304 119
# Wire SS304 120
# Coolant Na 121
# Assm Duct SS304 122
# Assm Gap Na 123
# FA with 2 GP Fuel Pin MOX 210 211
# GP Pin MOX 212 213
# Fuel Gap Void 214
# Fuel Clad SS316 215
# Central Pin BeO 216 217
# Central gap Void 218
# Central Clad SS316 219
# Central Na Na 220
# Central Duct SS304 221
# Wire SS304 222
# Coolant Na 223
# Assm Duct SS304 224
# Assm Gap Na 225
# FA with 1 B4C Fuel Pin MOX 310 311
# Fuel Gap Void 312
# Fuel Clad SS316 313
# Abs Central SS304 314 315
# Abs Pin B4C 316
# Abs Cladding SS316 317
# Central Pin BeO 318 319
# Central gap Void 320
# Central Clad SS316 321
# Central Na Na 322
# Central Duct SS304 323
# Wire SS304 324
# Coolant Na 325
# Assm Duct SS304 326
# Assm Gap Na 327
# FA with 1 B4C & 1 GP Fuel Pin MOX 410 411
# GP Pin UO2 412 413
# Fuel Gap Void 414
# Fuel Clad SS316 415
# Abs Central SS304 416 417
# Abs Pin B4C 418
# Abs Cladding SS316 419
# Central Pin BeO 420 421
# Central gap Void 422
# Central Clad SS316 423
# Central Na Na 424
# Central Duct SS304 425
# Wire SS304 426
# Coolant Na 427
# Assm Duct SS304 428
# Assm Gap Na 429
# FRED Pin Void 510 511
# Clad SS304 512
# Central Gap Void 513
# Duct SS304 514
# Assm Gap Na 515
# Downcomer IV 601
# Downcomer OV 602
# Radial Reflector 603
# Radial Shield 604
# Steel Void 605
# Na-Grid Plate 1001 1002
# Na-steel 2001 2002
accg_num_sectors = 12
wire_num_sectors = 8
hmg_num_sector_per_side = '2 2 2 2 2 2'
num_boundary_sectors = 6
###############################################################################
# Standard Fuel Assembly
###############################################################################
## Fuel pin
[std_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '110 111 112 113'
preserve_volumes = on
[]
# Central pin
[std_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '114 115 116 117'
background_intervals = 1
background_block_ids = '118'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '119'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[std_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '120'
preserve_volumes = on
[]
# Standard Fuel assembly
[std_assm]
type = FlexiblePatternGenerator
inputs = 'std_fuel_pin std_wire std_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 0 0;
1 1 1 1 1 1'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '121'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '2'
[]
[std_assm_w_duct]
type = FlexiblePatternGenerator
inputs = 'std_assm'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '122'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[std_assm_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'std_assm_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '123'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 2 Guinea Pigs
###############################################################################
## Fuel pin
[gp2_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '210 211 214 215'
preserve_volumes = on
[]
# GP Pin
[gp2_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '212 213 214 215'
preserve_volumes = on
[]
# Central pin
[gp2_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '216 217 218 219'
background_intervals = 1
background_block_ids = '220'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '221'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[gp2_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '222'
preserve_volumes = on
[]
# standard fuel assembly with 2 GPs on top left (assembly 12)
[assm12]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 1;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm12_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm12'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm12_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm12_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 2 GPs on top right (assembly 13)
[assm13]
type = FlexiblePatternGenerator
inputs = 'gp2_fuel_pin gp2_gp_pin gp2_wire gp2_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 1 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '223'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm13_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm13'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '224'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm13_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm13_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '225'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 B4C absorber
###############################################################################
## Fuel pin
[abs1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '310 311 312 313'
preserve_volumes = on
[]
# Absorber Pin
[abs1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '314 315 316 317'
preserve_volumes = on
[]
# Central pin
[abs1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '318 319 320 321'
background_intervals = 1
background_block_ids = '322'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '323'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '324'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C on top right (assembly 21)
[assm21]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm21_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm21'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm21_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm21_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on top right (assembly 23)
[assm23]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 0 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm23_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm23'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm23_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm23_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom left (assembly 24)
[assm24]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 1 0 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm24_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm24'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm24_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm24_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C on bottom right (assembly 25)
[assm25]
type = FlexiblePatternGenerator
inputs = 'abs1_fuel_pin abs1_abs_pin abs1_wire abs1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 0 0 0;
2 2 2 2 2 2'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '325'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '3'
[]
[assm25_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm25'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '326'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm25_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm25_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '327'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
###############################################################################
# Fuel Assembly with 1 Guinea Pig and 1 B4C Pin
###############################################################################
## Fuel pin
[abs1gp1_fuel_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '410 411 414 415'
preserve_volumes = on
[]
# GP Pin
[abs1gp1_gp_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# fuel gap ss316
ring_radii = '1.11426 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '412 413 414 415'
preserve_volumes = on
[]
# Absorber Pin
[abs1gp1_abs_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# ss304 b4c ss316
ring_radii = '0.80133 1.13331 1.23518'
ring_intervals = '2 1 1'
ring_block_ids = '416 417 418 419'
preserve_volumes = on
[]
# Central pin
[abs1gp1_central_pin_w_duct]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 1.31158
# beo gap ss316
ring_radii = '0.98942 1.01239 1.11426'
ring_intervals = '2 1 1'
ring_block_ids = '420 421 422 423'
background_intervals = 1
background_block_ids = '424'
duct_sizes = '1.22244'
duct_sizes_style = apothem
duct_block_ids = '425'
duct_intervals = '1'
flat_side_up = true
preserve_volumes = on
[]
# Wire pin
[abs1gp1_wire]
type = AdvancedConcentricCircleGenerator
num_sectors = ${wire_num_sectors}
# ss304
ring_radii = '0.31834'
ring_intervals = '1'
ring_block_ids = '426'
preserve_volumes = on
[]
# standard fuel assembly with 1 B4C rod at top left and 1 GP rod at top right (assembly 41)
[assm41]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 0 0 1 2;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm41_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm41'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm41_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm41_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at right and 1 GP rod at bottom right (assembly 42)
[assm42]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '0 0 1 2 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm42_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm42'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm42_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm42_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# standard fuel assembly with 1 B4C rod at bottom left and 1 GP rod at left (assembly 43)
[assm43]
type = FlexiblePatternGenerator
inputs = 'abs1gp1_fuel_pin abs1gp1_gp_pin abs1gp1_abs_pin abs1gp1_wire abs1gp1_central_pin_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
circular_patterns = '1 2 0 0 0 0;
3 3 3 3 3 3'
circular_radii = '2.78130 3.47540'
circular_rotations = '90 0'
# Na
background_subdomain_id = '427'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '4'
[]
[assm43_w_duct]
type = FlexiblePatternGenerator
inputs = 'assm43'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '428'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[assm43_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'assm43_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '429'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# FRED
[fred_pin]
type = AdvancedConcentricCircleGenerator
num_sectors = ${accg_num_sectors}
# Void SS316
ring_radii = '1.75726 2.11381'
ring_intervals = '2 1'
ring_block_ids = '510 511 512'
preserve_volumes = on
[]
[fred]
type = FlexiblePatternGenerator
inputs = 'fred_pin'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 7.71667
# Void
background_subdomain_id = '513'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct]
type = FlexiblePatternGenerator
inputs = 'fred'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.02228
# Duct
background_subdomain_id = '514'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
[fred_w_duct_gap]
type = FlexiblePatternGenerator
inputs = 'fred_w_duct'
use_auto_area_func = true
boundary_type = hexagon
boundary_sectors = ${num_boundary_sectors}
boundary_size = 8.04775
# Na
background_subdomain_id = '515'
extra_positions = '0.0 0.0 0.0'
extra_positions_mg_indices = '0'
[]
# Dummy mesh to fill core lattice
[dummy]
type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
num_sectors_per_side = ${hmg_num_sector_per_side}
hexagon_size = 4.023875
background_intervals = 1
background_block_ids = '999'
sides_to_adapt = '0 1 2 3 4 5'
meshes_to_adapt_to = 'std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap
std_assm_w_duct_gap'
[]
[pattern_core]
type = PatternedHexMeshGenerator
inputs = 'fred_w_duct_gap std_assm_w_duct_gap assm12_w_duct_gap
assm13_w_duct_gap assm21_w_duct_gap assm23_w_duct_gap
assm24_w_duct_gap assm25_w_duct_gap assm41_w_duct_gap
assm42_w_duct_gap assm43_w_duct_gap dummy'
pattern_boundary = none
generate_core_metadata = true
pattern = ' 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 1 1 1 7 1 1 11 11 11;
11 11 1 1 4 1 3 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 1 1 5 1 11 11;
11 11 1 1 1 1 1 5 1 9 1 1 1 11 11;
11 11 11 1 1 8 1 1 1 1 1 6 1 11 11 11;
11 11 11 1 4 1 1 1 0 1 1 1 1 1 11 11 11;
11 11 11 1 1 1 1 1 1 4 1 1 1 11 11 11;
11 11 1 1 2 1 5 1 1 1 1 7 1 11 11;
11 11 1 1 1 1 1 10 1 1 1 1 11 11;
11 11 1 1 1 1 1 1 5 1 1 11 11;
11 11 11 1 1 4 1 1 1 11 11 11;
11 11 11 11 1 1 1 11 11 11 11;
11 11 11 11 11 11 11 11 11 11;
11 11 11 11 11 11 11 11 11'
[]
[del_dummy]
type = BlockDeletionGenerator
input = 'pattern_core'
block = '999'
new_boundary = 10000
[]
[downcomer_iv]
type = PeripheralRingMeshGenerator
input = 'del_dummy'
peripheral_layer_num = 2
peripheral_ring_radius = 53.486
peripheral_ring_block_id = '601'
input_mesh_external_boundary = 10000
[]
[downcomer_ov]
type = PeripheralRingMeshGenerator
input = 'downcomer_iv'
peripheral_layer_num = 1
peripheral_ring_radius = 58.4860
peripheral_ring_block_id = '602'
input_mesh_external_boundary = 10000
[]
[radial_reflector]
type = PeripheralRingMeshGenerator
input = 'downcomer_ov'
peripheral_layer_num = 2
peripheral_ring_radius = 73.5530
peripheral_ring_block_id = '603'
input_mesh_external_boundary = 10000
[]
[radial_shield]
type = PeripheralRingMeshGenerator
input = 'radial_reflector'
peripheral_layer_num = 1
peripheral_ring_radius = 87.0340
peripheral_ring_block_id = '604'
input_mesh_external_boundary = 10000
[]
[core_3d]
type = AdvancedExtruderGenerator
input = 'radial_shield'
heights = '30.745 10.7870 0.9525 52.4291 0.9525 3.2820 0.9525 33.5227 0.7775 0.0962 0.0788 10.7082 0.0788 20.2390'
num_layers = '6 2 1 10 1 1 1 7 1 1 1 2 1 4'
direction = '0 0 1'
# First axial to last axial, separated by ;
subdomain_swaps = ' 110 1001 111 1002 112 1002 113 1002 114 1001 115 1002 116 1002 117 1002 118 1002 119 1002 120 1001 121 1001 122 1001 123 1001
210 1001 211 1002 212 1001 213 1002 214 1002 215 1002 216 1001 217 1002 218 1002 219 1002 220 1002 221 1002 222 1001 223 1001 224 1001 225 1001
310 1001 311 1002 312 1002 313 1002 314 1001 315 1002 316 1002 317 1002 318 1001 319 1002 320 1002 321 1002 322 1002 323 1002 324 1001 325 1001 326 1001 327 1001
410 1001 411 1002 412 1001 413 1002 414 1002 415 1002 416 1001 417 1002 418 1002 419 1002 420 1001 421 1002 422 1002 423 1002 424 1002 425 1002 426 1001 427 1001 428 1001 429 1001
510 1001 511 1002 512 1002 513 1001 514 1001 515 1001
603 605;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 150 111 151 112 152 113 153 114 154 115 155 116 156 117 157 118 158 119 159 120 160 121 161 122 162 123 163
210 150 211 151 212 150 213 151 214 152 215 153 216 154 217 155 218 156 219 157 220 158 221 159 222 160 223 161 224 162 225 163
310 350 311 351 312 352 313 353 314 354 315 355 316 356 317 357 318 358 319 359 320 360 321 361 322 362 323 363 324 364 325 365 326 366 327 367
410 350 411 351 412 350 413 351 414 352 415 353 416 354 417 355 418 356 419 357 420 358 421 359 422 360 423 361 424 362 425 363 426 364 427 365 428 366 429 367;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 336 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 336 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 338 319 339 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 338 421 339 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 130 111 131 112 132 113 133 114 134 115 135 116 136 117 137 118 138 119 139 120 140 121 141 122 142 123 143
210 130 211 131 212 130 213 131 214 132 215 133 216 134 217 135 218 136 219 137 220 138 221 139 222 140 223 141 224 142 225 143
310 330 311 331 312 332 313 333 314 334 315 335 316 395 317 337 318 378 319 379 320 340 321 341 322 342 323 343 324 344 325 345 326 346 327 347
410 330 411 331 412 330 413 331 414 332 415 333 416 334 417 335 418 395 419 337 420 378 421 379 422 340 423 341 424 342 425 343 426 344 427 345 428 346 429 347;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 378 319 379 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 378 421 379 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 170 111 171 112 172 113 173 114 174 115 175 116 176 117 177 118 178 119 179 120 180 121 181 122 182 123 183
210 170 211 171 212 170 213 171 214 172 215 173 216 174 217 175 218 176 219 177 220 178 221 179 222 180 223 181 224 182 225 183
310 370 311 371 312 372 313 373 314 374 315 375 316 376 317 377 318 2001 319 2002 320 380 321 381 322 382 323 383 324 384 325 385 326 386 327 387
410 370 411 371 412 370 413 371 414 372 415 373 416 374 417 375 418 376 419 377 420 2001 421 2002 422 380 423 381 424 382 425 383 426 384 427 385 428 386 429 387;
110 2001 111 2002 112 2002 113 2002 114 2001 115 2002 116 2002 117 2002 118 2002 119 2002 120 2001 121 2001 122 2001 123 2001
210 2001 211 2002 212 2001 213 2002 214 2002 215 2002 216 2001 217 2002 218 2002 219 2002 220 2002 221 2002 222 2001 223 2001 224 2001 225 2001
310 2001 311 2002 312 2002 313 2002 314 2001 315 2002 316 2002 317 2002 318 2001 319 2002 320 2002 321 2002 322 2002 323 2002 324 2001 325 2001 326 2001 327 2001
410 2001 411 2002 412 2001 413 2002 414 2002 415 2002 416 2001 417 2002 418 2002 419 2002 420 2001 421 2002 422 2002 423 2002 424 2002 425 2002 426 2001 427 2001 428 2001 429 2001
603 605'
top_boundary = 20000
bottom_boundary = 30000
[]
[coarse_mesh]
type = GeneratedMeshGenerator
dim= 3
nx = 35
ny = 35
nz = 34
xmin = -87.0340
xmax = 87.0340
ymin = -87.0340
ymax = 87.0340
zmin = 0.0000
zmax = 165.6018
[]
[assign_coarse_id]
type = CoarseMeshExtraElementIDGenerator
input = 'core_3d'
coarse_mesh = coarse_mesh
extra_element_id_name = coarse_element_id
[]
final_generator = 'assign_coarse_id'
[]
